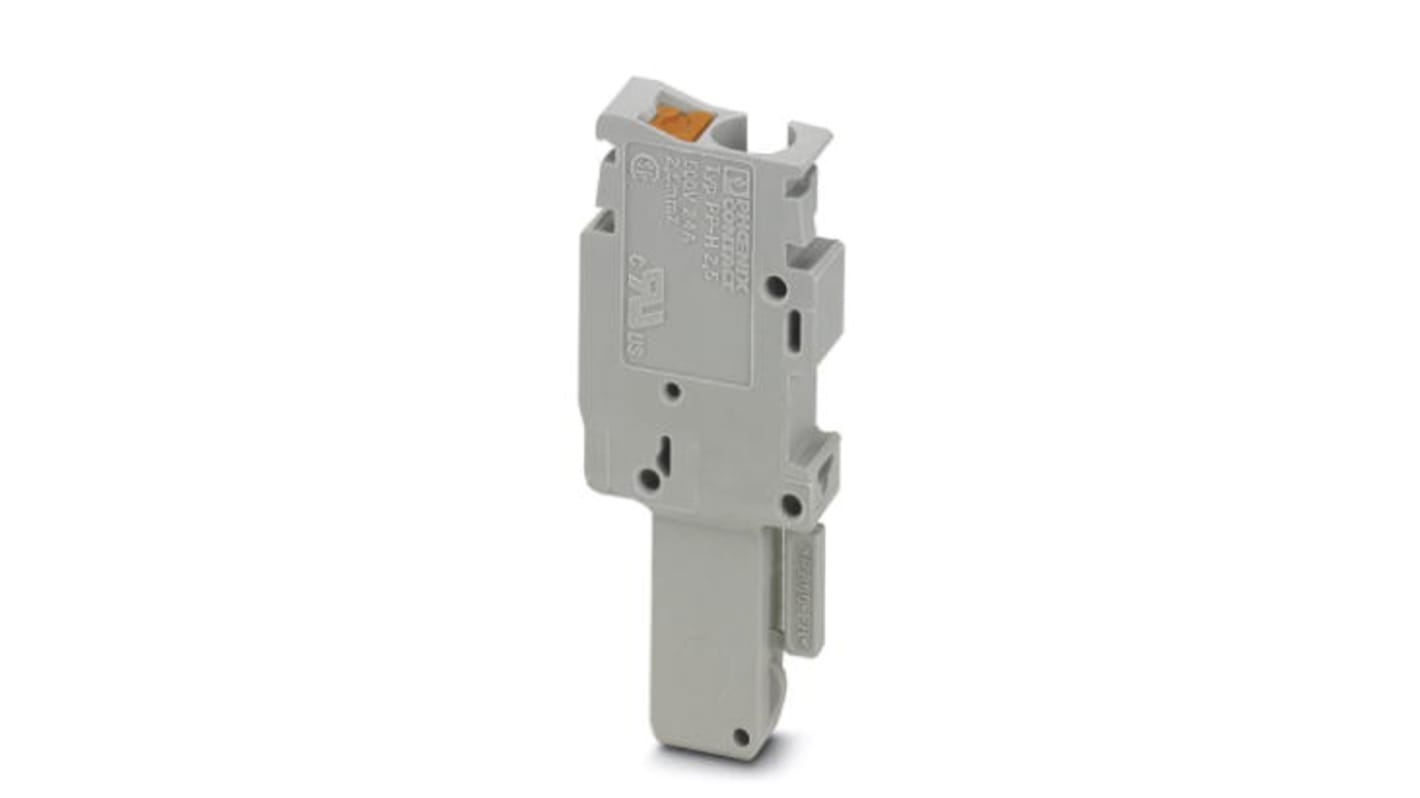

The COMBI plug connectors with PT Push-In technology with 24 A / 500 V can be used for signal as well as power wiring. The single poles can be assembled individually. The plug connector PP-H 2,5/... facilitates the use of the cable housings PH 2,5/2 to PH 2,5/15.

Toolless wiring of solid conductors and conductors with ferrule
50% less insertion force for direct plugging from 0.34 mm²
To be assembled on site individually and flexibly
With the standardized plug-in zone, they can also be connected to COMBI basic terminal blocks with other connection methods
Easy and individual coding options on every plug connector increase wiring safety and serve the protection against improper insertion
Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
Actuation button can be operated with any kind of screwdriver

This pluggable terminal block provides durable electrical connections for various industrial applications. Its design facilitates efficient wiring solutions, ensuring suitability for automation and electronic systems, making it an essential component in electrical installations.

• Utilises push-in technology for effective connection
• Rated for a nominal current of 24A
• Suitable for a voltage rating up to 500V
• Compatible with wire sizes from AWG 26 to 12
• Optimised for self-assembly with large-surface labelling options
• Specifically tested for railway applications

• Utilised in machinery and automation systems
• Ideal for plant engineering and construction projects
• Suitable for electrical installations within railway infrastructure
• Employed in various industrial wiring tasks

It accommodates wire sizes from AWG 26 to 12, providing versatile installation options.

A parallel pressing tool is recommended for securely latching the connector components.

The product is intended for indoor use and should be protected from extreme weather conditions.

The operating temperature range is from -60 to 70°C, ensuring resistance to heat.

The device complies with standard IEC 61984 for electrical connectors, ensuring performance.

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
