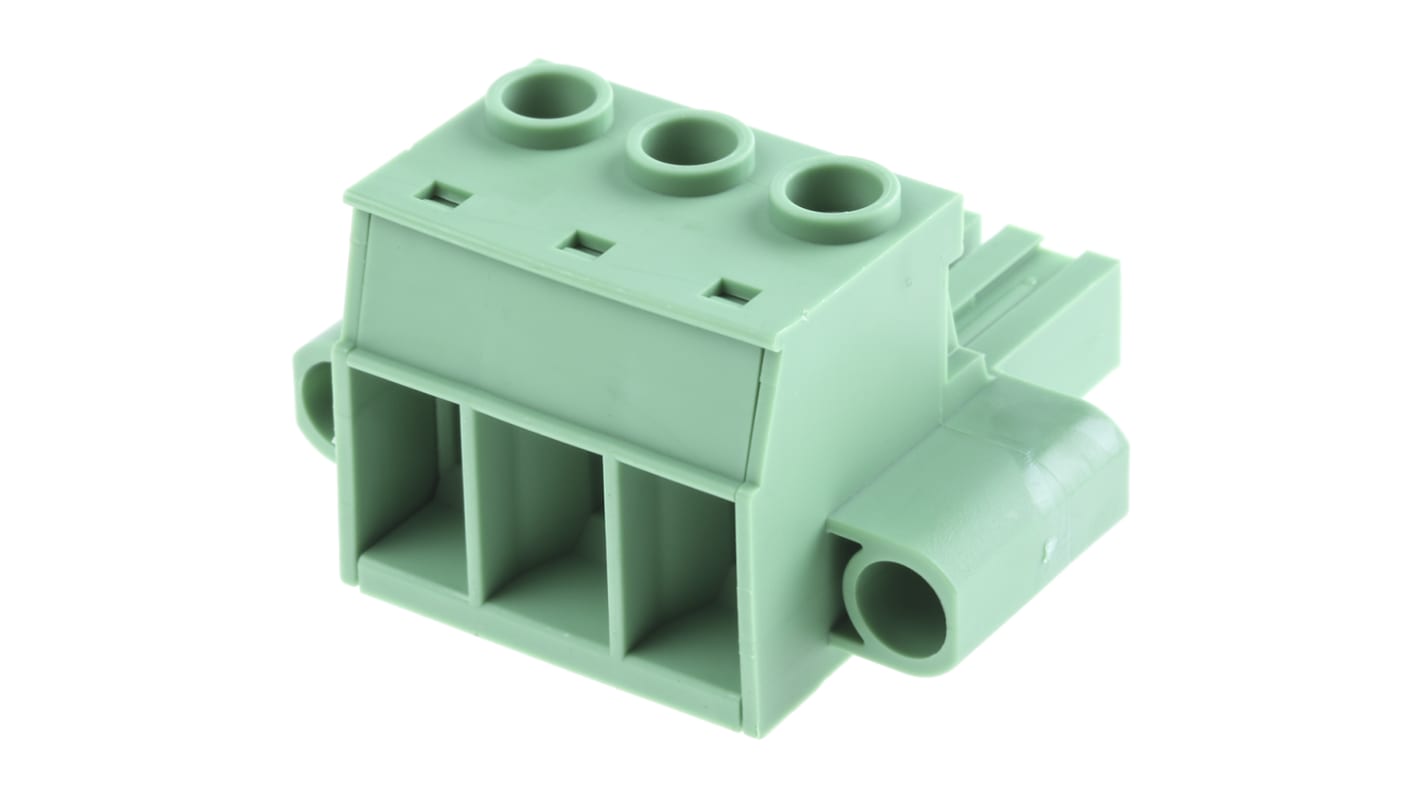

Phoenix Contact PC 16/3-STF-10.16 Series Pluggable Terminal Block, 3-Contact, 10.16 mm Pitch, 1 Row, 1967469
- RS Stock No.:
- 493-2743
- Mfr. Part No.:
- 1967469
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 5 units)*
£58.51
(exc. VAT)
£70.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £11.702 | £58.51 |
| 125 - 370 | £10.532 | £52.66 |
| 375 - 995 | £9.946 | £49.73 |
| 1000 - 1995 | £8.776 | £43.88 |
| 2000 + | £8.192 | £40.96 |
*price indicative
- RS Stock No.:
- 493-2743
- Mfr. Part No.:
- 1967469
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 10.16mm | |
| Number of Rows | 1 | |
| Current | 20A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 4mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 10 AWG | |
| Orientation | Horizontal | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 630 V | |
| Length | 41.5mm | |
| Width | 48.24 mm | |
| Series | PC 16/3-STF-10.16 | |
| Depth | 27.8mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 10.16mm | ||
Number of Rows 1 | ||
Current 20A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 4mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 10 AWG | ||
Orientation Horizontal | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 630 V | ||
Length 41.5mm | ||
Width 48.24 mm | ||
Series PC 16/3-STF-10.16 | ||
Depth 27.8mm | ||
Standards/Approvals No | ||
Phoenix Contact COMBICON PC 16 10.16mm Terminal Block Plug Connectors
COMBICON PC 16 series plug-in terminal block connectors with female sockets. The terminals feature a high current carrying capacity of 76 A and unrestricted 600 V UL approval. The COMBICON PC 16 series high capacity free hanging terminal block plugs can be plugged into PC 6-16 headers and IPC 16 plugs.
Features and Benefits
• Screw connection
• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force
• 10.16 mm pitch
Phoenix Contact COMBICON 10.16mm Two Part Terminal Blocks
