Name: Phoenix Contact, 3.5mm Pitch, MCV, 2 Way, Pluggable Terminal Block, PCB Mount, Plug In Termination, 1843606
Brand: Phoenix Contact
SKU: 268-4732
Price: 0.49 GBP
Availability: Discontinued

Phoenix Contact MC & MCV PCB headers - 3.81 mm pitch

The MC & MCV range of PCB headers from Phoenix contact are well known, and versatile connectors. They feature multiple connection technologies so that you can use one header for multiple different uses, all while having a premium build. The range all feature a 3.81 mm pitch and can be mounted via wave soldering straight onto your motherboard or any PCB. Furthermore, these connectors are mounted vertically so this allows you to arrange them in multi-row arrangements on your PCB.

The housings are made from a green PBT (Polybutylene terephthalate) making them sturdy thanks to PBT's great properties, this, in turn, means these PCB headers can be used in some extreme conditions. Both MC & MCV series can work in temperatures from -40°C up to 100°C.

Features and benefits:

Mounted via through-hole and soldered, will allow you to use these connectors worldwide

Total flexibility with your design - one header accepts multiple connections technologies so you can use one series of headers

Pitch of 3.81mm for compatibility with most other connectors

Shrouded pins provide extra protection to your connection and can offer sturdy connections overtime

Nominal current of 8A

What is a PCB header?

A PCB header is a type of connector that is used on printed circuit boards, most commonly motherboards to allow you to connect other accessories or cables into a single connector on the circuit board. They come in different shapes and sizes and can be mounted in various ways. The MC & MCV series are all recommended to be wave soldered onto the PCB.

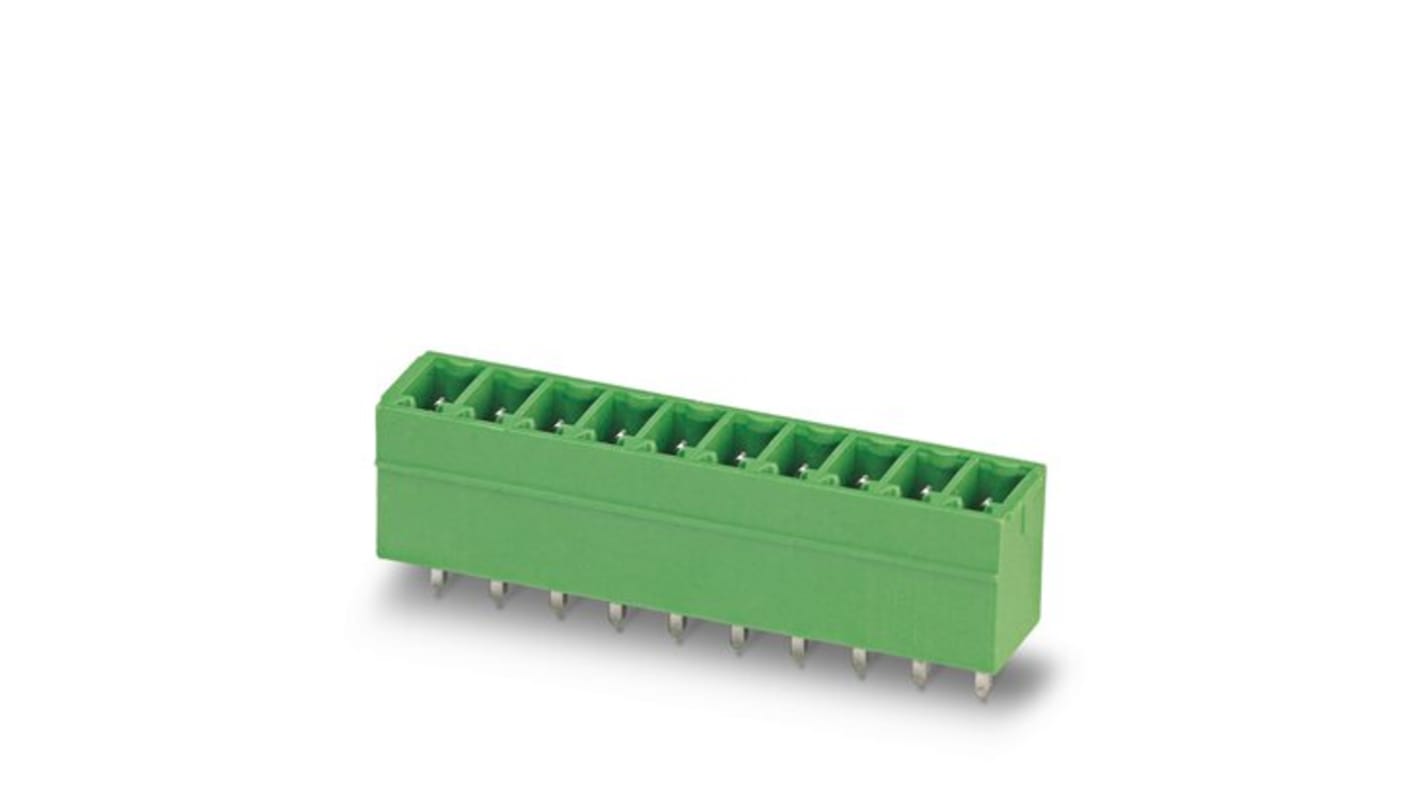

Phoenix Contact MCV 1.5/2-G-3.5 Series Pluggable Terminal Block, 8A Current Rating, 3.5mm Pitch - 1843606

This pluggable terminal block is a primary component in electrical connection systems designed to facilitate reliable connectivity in various applications. It features a straight header with a 3.5mm pitch, making it suitable for wave soldering processes. The product is constructed from PBT material, ensuring durability and longevity in performance.

Features & Benefits

• Offers secure connections with self-locking plugs
• Compact size ideal for space-constrained designs
• Rated for 8A current and 160V voltage applications
• Manufactured from copper alloy for optimal conductivity
• Easy installation through wave soldering techniques
• Individual position coding enhances assembly accuracy

Applications

• Utilised in industrial automation for reliable signal transmission
• Commonly used in electronic control systems for various devices
• Integrated within machinery as a connector for components
• Designed for use in electrical panels requiring compact connections

What is the electrical rating for maximum load usage?

The terminal block is rated for a maximum load current of 8A and a voltage rating of 160V, ensuring optimal conductance in various scenarios.

How does the solder termination method benefit installation?

The solder termination method allows for a strong, permanent connection that enhances reliability in high-vibration environments, ideal for industrial applications.

What materials are used in the construction for durability?

This product is made from PBT, which is known for its high thermal stability and resistance to chemical degradation, thus providing longevity in challenging conditions.

	Select all
	Brand Phoenix Contact
	Number of Contacts 2
	Pitch 3.5mm
	Series MCV
	Number of Rows 1
	Mounting Type PCB Mount
	Termination Method Plug In
