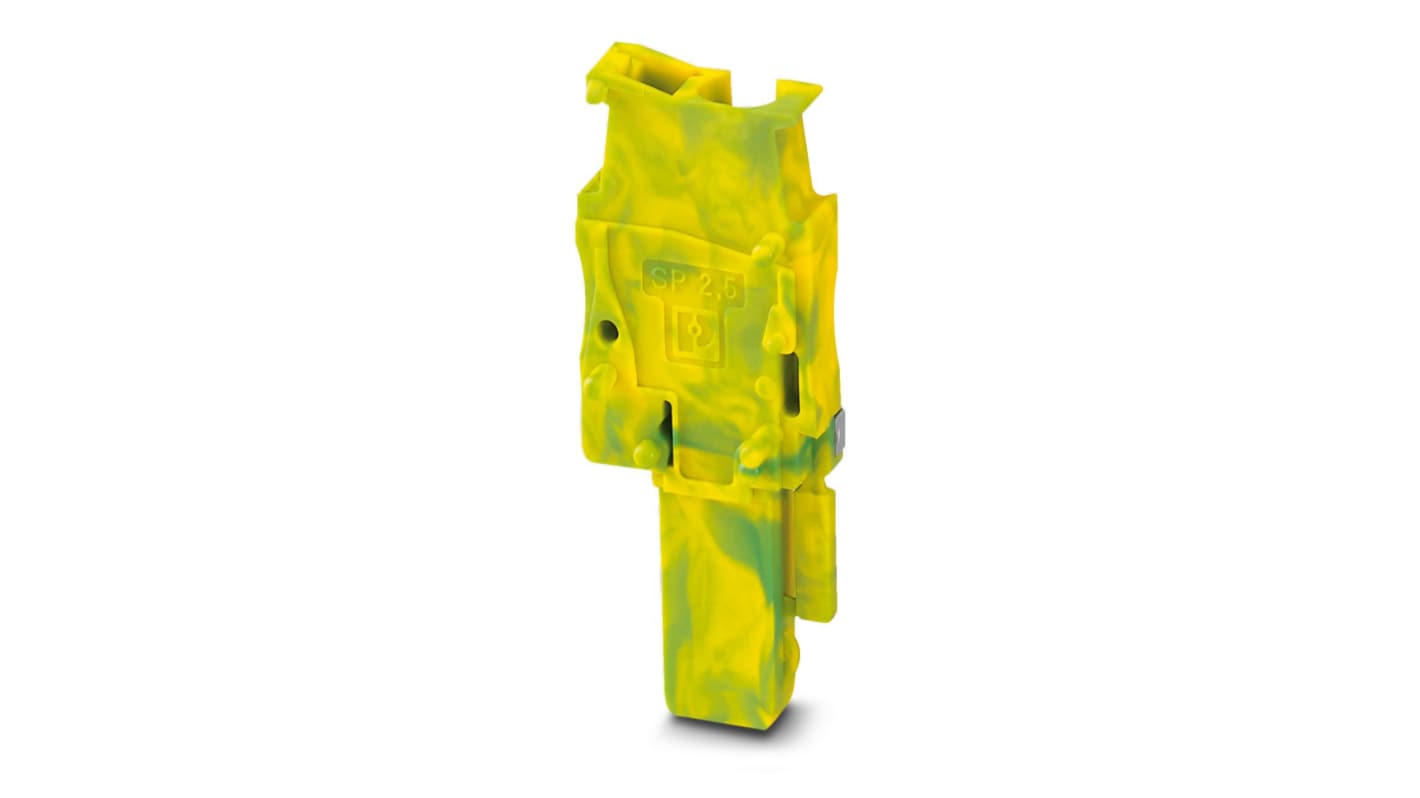

Phoenix Contact ST-COMBI Series Pluggable Terminal Block, 1-Contact, 5.2 mm Pitch, 3043093
- RS Stock No.:
- 254-4857
- Distrelec Article No.:
- 304-40-807
- Mfr. Part No.:
- 3043093
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£50.45
(exc. VAT)
£60.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.009 | £50.45 |
*price indicative
- RS Stock No.:
- 254-4857
- Distrelec Article No.:
- 304-40-807
- Mfr. Part No.:
- 3043093
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 1 | |
| Pitch | 5.2mm | |
| Current | 24A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Colour | Green, Yellow | |
| Wire Connection Method | Spring Cage | |
| Voltage | 500V | |
| Depth | 39mm | |
| Series | ST-COMBI | |
| Length | 15.8mm | |
| Width | 5.2mm | |
| Standards/Approvals | IEC 61984 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 1 | ||
Pitch 5.2mm | ||
Current 24A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 4mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Colour Green, Yellow | ||
Wire Connection Method Spring Cage | ||
Voltage 500V | ||
Depth 39mm | ||
Series ST-COMBI | ||
Length 15.8mm | ||
Width 5.2mm | ||
Standards/Approvals IEC 61984 | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements. Connector element right, left housing with engagement pin, right closed with cover. It has nominal voltage 500 V and nominal current 24 A.
Cable housing can be snapped on to the plugs
Number of positions 1
Connection method Spring-cage Connection
Rated cross section 2.5 mm²
Cross section 0.08 mm²- 4 mm²
