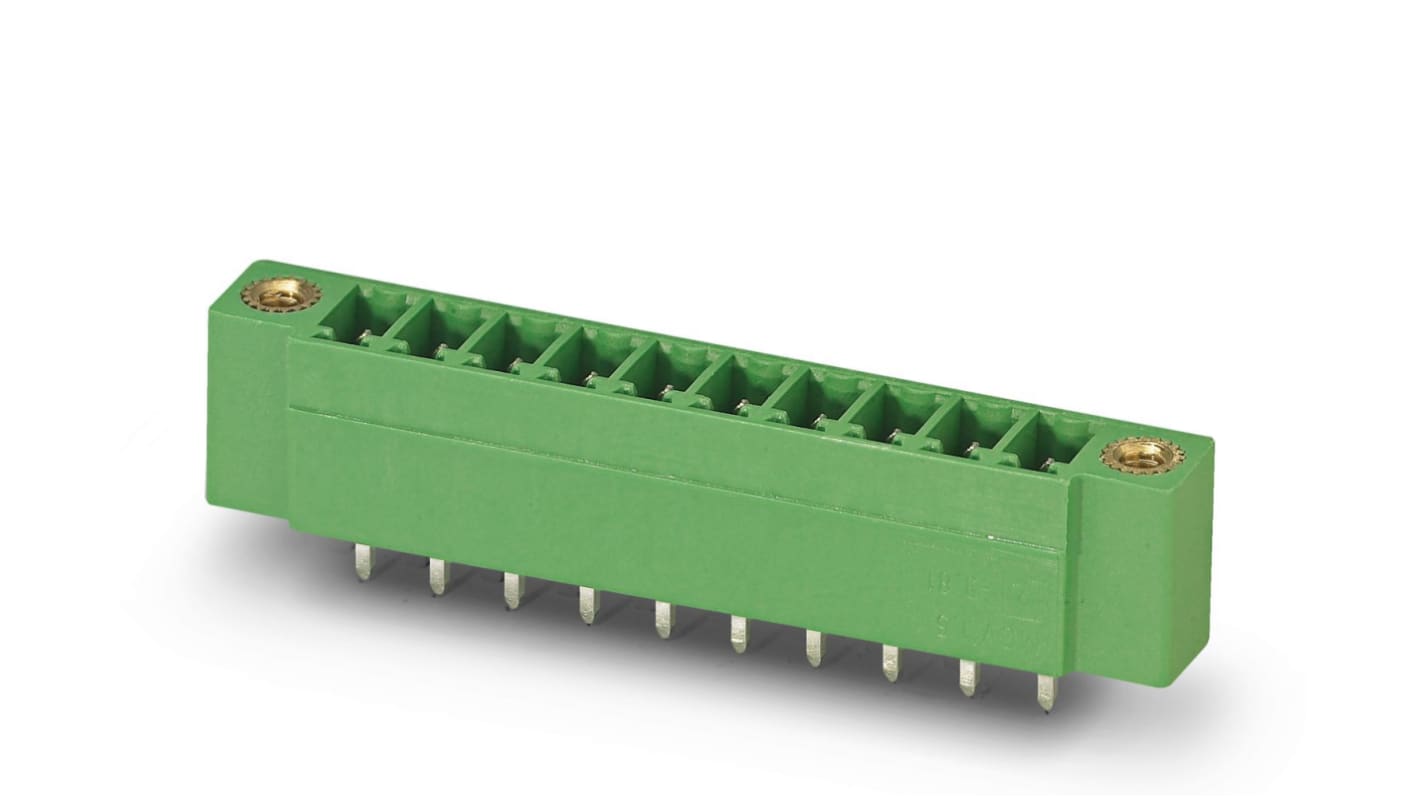

Phoenix Contact, 3.81mm Pitch, 5/10-GF-3, 81, MCV 1, 10 Way, , Pluggable Terminal Block, Header, 1830677
- RS Stock No.:
- 241-5960
- Mfr. Part No.:
- 1830677
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£306.00
(exc. VAT)
£367.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 + | £3.06 | £306.00 |
*price indicative
- RS Stock No.:
- 241-5960
- Mfr. Part No.:
- 1830677
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Header | |
Number of Contacts | 10 | |
Pitch | 3.81mm | |
Series | 5/10-GF-3, 81, MCV 1 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 10 | ||
Pitch 3.81mm | ||
Series 5/10-GF-3, 81, MCV 1 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
- COO (Country of Origin):
- DE
The Phoenix Contact's PCB headers has nominal cross section of 1.5 mm² and is green in colour. The vertical connection enables multi-row arrangement on the PCB. Maximum flexibility when it comes to device design – one header for connectors with different connection technologies.
Number of positions 10
Mounting type wave soldering
Pin layout linear pinning
Locking Threaded flange
Number of rows 1
Number of connections 10
Number of potentials 10
Nominal current 8 A
Nominal voltage 160 V
Mounting type wave soldering
Pin layout linear pinning
Locking Threaded flange
Number of rows 1
Number of connections 10
Number of potentials 10
Nominal current 8 A
Nominal voltage 160 V
