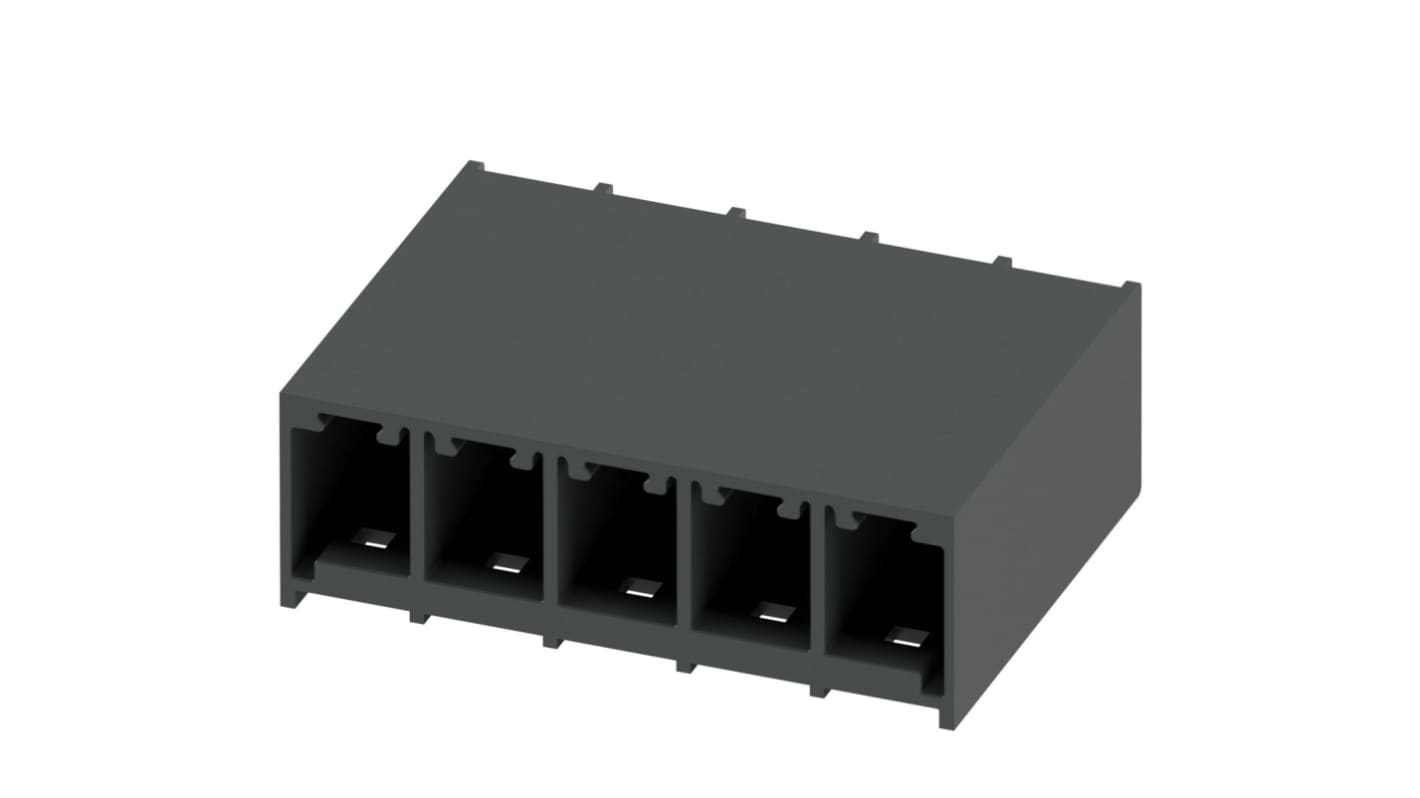

Phoenix Contact PC 6/-G-THR Series Pluggable Terminal Block, 5-Contact, 7.62 mm Pitch, 1 Row, 1190492
- RS Stock No.:
- 240-3113
- Mfr. Part No.:
- 1190492
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£213.15
(exc. VAT)
£255.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.263 | £213.15 |
*price indicative
- RS Stock No.:
- 240-3113
- Mfr. Part No.:
- 1190492
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 5 | |
| Pitch | 7.62mm | |
| Number of Rows | 1 | |
| Current | 41A | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Wire Size mm² | 6mm² | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Colour | Black | |
| Voltage | 630V | |
| Length | 28.2mm | |
| Standards/Approvals | VDE Zeichengenehmigung | |
| Width | 38.5mm | |
| Series | PC 6/-G-THR | |
| Depth | 15.6mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 5 | ||
Pitch 7.62mm | ||
Number of Rows 1 | ||
Current 41A | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Wire Size mm² 6mm² | ||
Connector Gender Male | ||
Orientation Straight | ||
Colour Black | ||
Voltage 630V | ||
Length 28.2mm | ||
Standards/Approvals VDE Zeichengenehmigung | ||
Width 38.5mm | ||
Series PC 6/-G-THR | ||
Depth 15.6mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Phoenix Contact has PCB header with linear pin layout and wave soldering mounting. This header has 5 number of positions and nominal current is 41 A. The material used for contact is Cu alloy and housing colour is black.
Designed for integration into the SMT soldering process
Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
Easy PCB replacement thanks to plug-in modules
