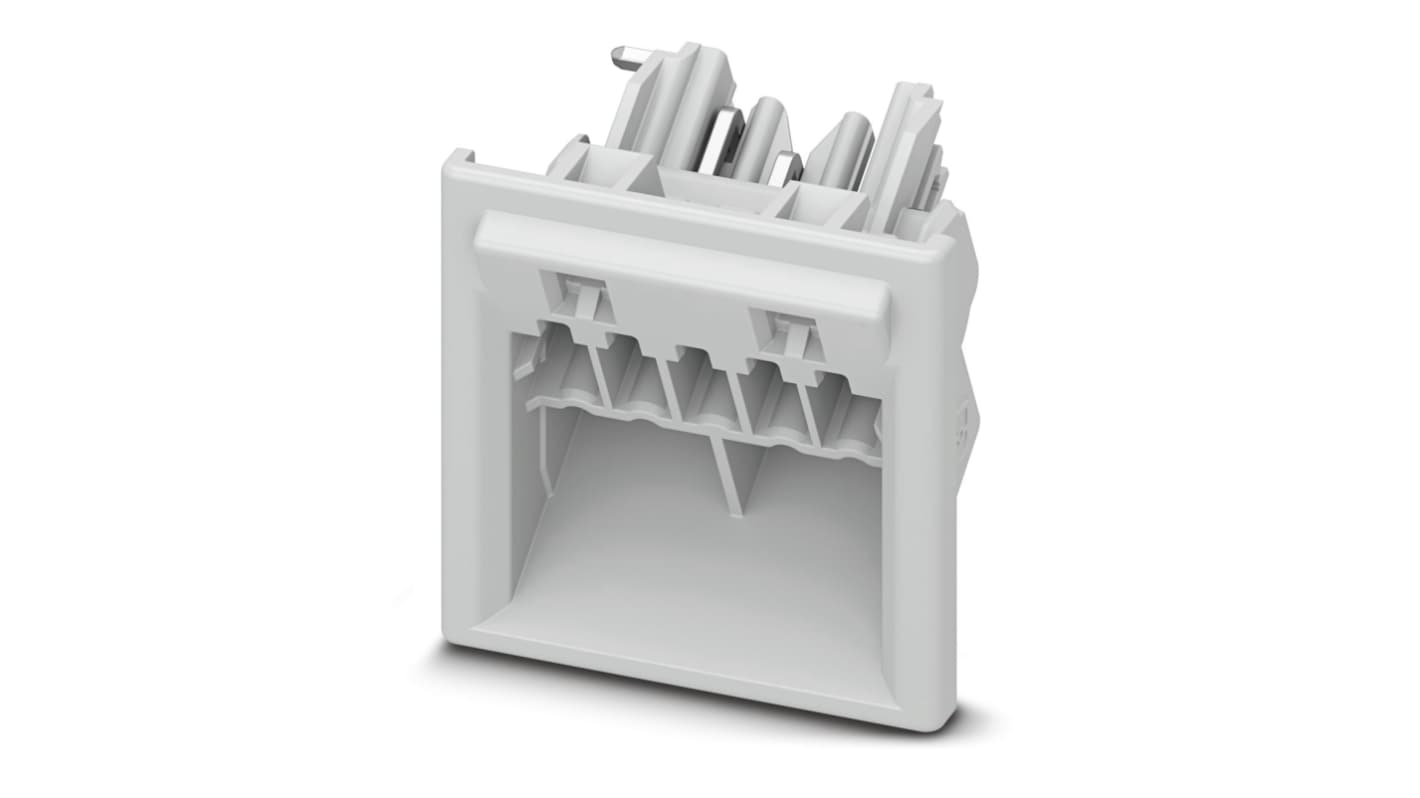

Phoenix Contact ICC25 Series Pluggable Terminal Block, 5-Contact, 3.5 mm Pitch, 1 Row, 1084018
- RS Stock No.:
- 240-1055
- Mfr. Part No.:
- 1084018
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£181.30
(exc. VAT)
£217.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £3.626 | £181.30 |
*price indicative
- RS Stock No.:
- 240-1055
- Mfr. Part No.:
- 1084018
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 5 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Colour | Light Grey | |
| Wire Connection Method | Solder | |
| Voltage | 150V | |
| Series | ICC25 | |
| Standards/Approvals | EAC, cULus Recognised | |
| Length | 20.22mm | |
| Width | 25mm | |
| Depth | 22.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 5 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Orientation Straight | ||
Colour Light Grey | ||
Wire Connection Method Solder | ||
Voltage 150V | ||
Series ICC25 | ||
Standards/Approvals EAC, cULus Recognised | ||
Length 20.22mm | ||
Width 25mm | ||
Depth 22.4mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB header has a nominal current of 8 A and rated voltage 150 V. It has variable coding, for reliable protection against incorrect connection. It is designed for integration into the wave soldering process and also has easy and fast push-in mounting of assembled printed-circuit boards due to stable guide rails.
Type of contact male connector
Number of positions 5
Mounting type wave soldering
Contact material Cu alloy
Housing colour light grey
