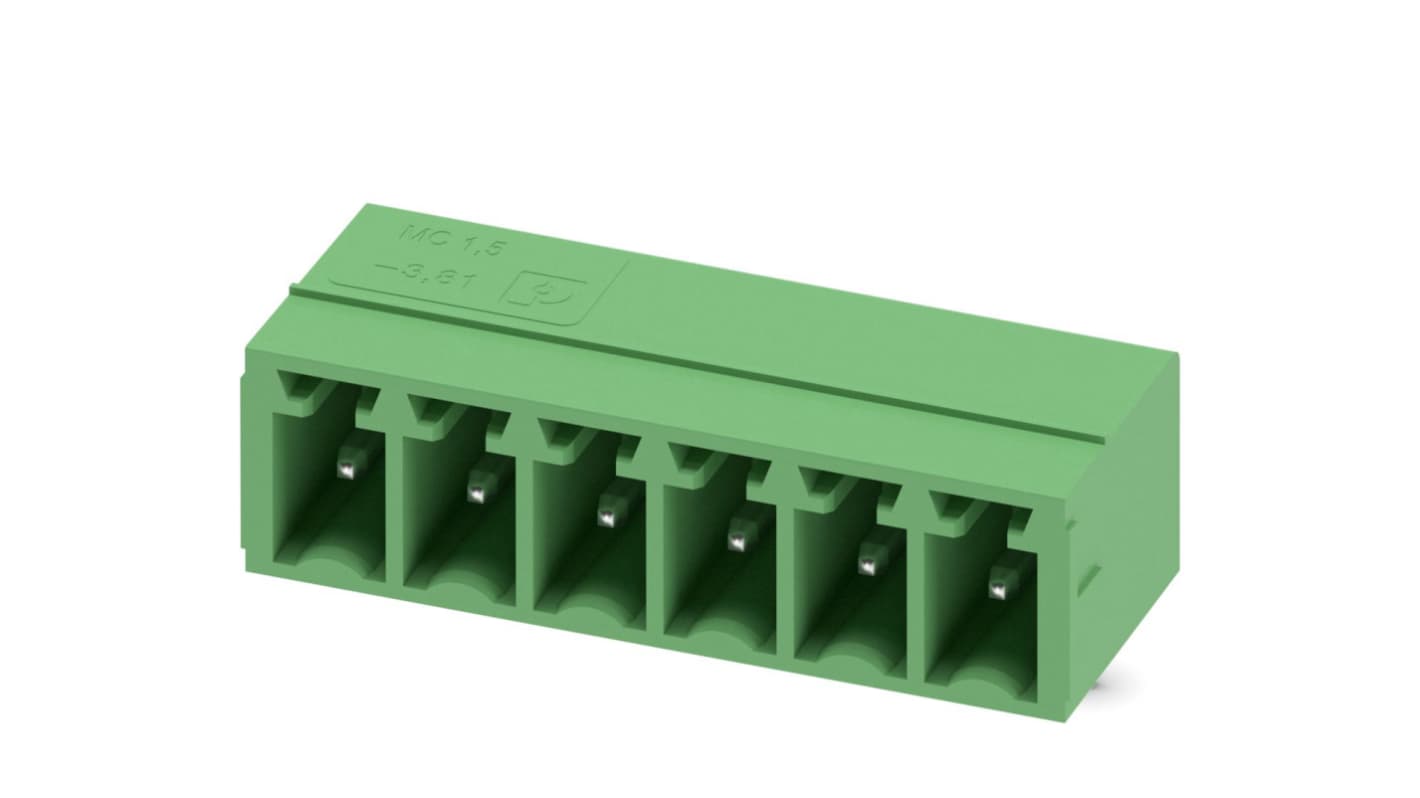

Phoenix Contact MC 1.5/ 6-G-3.81 Series Pluggable Terminal Block, 6-Contact, 3.81 mm Pitch, 1 Row, 1803316

RS Stock No.:: 220-4771
Distrelec Article No.:: 304-32-314
Mfr. Part No.:: 1803316
Brand:: Phoenix Contact

Phoenix Contact MC 1.5/ 6-G-3.81 Series Pluggable Terminal Block, 6-Contact, 3.81 mm Pitch, 1 Row, 1803316

Bulk discount available

Subtotal (1 pack of 5 units)*

£7.69

(exc. VAT)

£9.23

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

285 unit(s) ready to ship
Plus 20 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 70	£1.538	£7.69
75 - 245	£1.438	£7.19
250 - 495	£1.228	£6.14
500 - 995	£1.136	£5.68
1000 +	£1.082	£5.41

*price indicative

Phoenix Contact Jumper Bars

Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.

Buy Phoenix Contact Jumper Bars

RS Stock No.:: 220-4771
Distrelec Article No.:: 304-32-314
Mfr. Part No.:: 1803316
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Contacts	6
	Product Type	Pluggable Terminal Block
	Pitch	3.81mm
	Number of Rows	1
	Current	8A
	Housing Material	Polybutylene Terephthalate
	Connector Gender	Male
	Maximum Wire Size mm²	1.5mm²
	Orientation	Right Angle
	Wire Connection Method	Solder
	Colour	Green
	Voltage	300 V
	Series	MC 1.5/ 6-G-3.81
	Length	9.2mm
	Depth	10.65mm
	Width	24.25 mm
	Standards/Approvals	EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS

	Select all
	Brand Phoenix Contact
	Number of Contacts 6
	Product Type Pluggable Terminal Block
	Pitch 3.81mm
	Number of Rows 1
	Current 8A
	Housing Material Polybutylene Terephthalate
	Connector Gender Male
	Maximum Wire Size mm² 1.5mm²
	Orientation Right Angle
	Wire Connection Method Solder
	Colour Green
	Voltage 300 V
	Series MC 1.5/ 6-G-3.81
	Length 9.2mm
	Depth 10.65mm
	Width 24.25 mm
	Standards/Approvals EU RoHS, EU REACH SVHC, cULus, CSA, CHINA RoHS

COO (Country of Origin):: DE

Phoenix Contact MC 1.5/ 6-G-3.81 Series Pluggable Terminal Block, 3.81mm Pitch, Solder Termination Method - 1803316

This pluggable terminal block is designed for secure and efficient connections in electronic and electrical systems. As a right angle header terminal, it offers versatility in device design while ensuring reliable connectivity. With a robust voltage rating and a user-friendly solder termination method, this product is essential for modern automation and electrical applications.

Features & Benefits

• 8A current rating for dependable performance under load

• 300V voltage rating for high-voltage applications

• 3.81mm pitch for compatibility with various systems

• Through-hole mounting for straightforward installation

• Linear pin layout simplifies pin connection

• Green housing enhances visibility and integrates well

Applications

• Suitable for automation systems to ensure stable signal transmission

• Ideal for PCB connections within electronic devices

• Used in control panels for electrical distribution

• Appropriate for outdoor and industrial environments

• Employed in machinery for effective power distribution

What type of connection technology is suitable for this device?

The device accommodates various connection technologies, providing flexibility in design.

Can it withstand harsh environmental conditions?

Yes, it operates effectively within a temperature range of -40 to 100°C.

How do I install this component?

It can be installed easily using wave soldering methods due to its through-hole mounting.

Is there a specific maintenance requirement for this terminal block?

Regular visual inspections are advised to check for wear or damage over time.

How many connections can be made with this terminal block?

It supports up to six connections, allowing for multiple circuits or signals.

Approvals

UL (E60425); CSA (LR13631)
