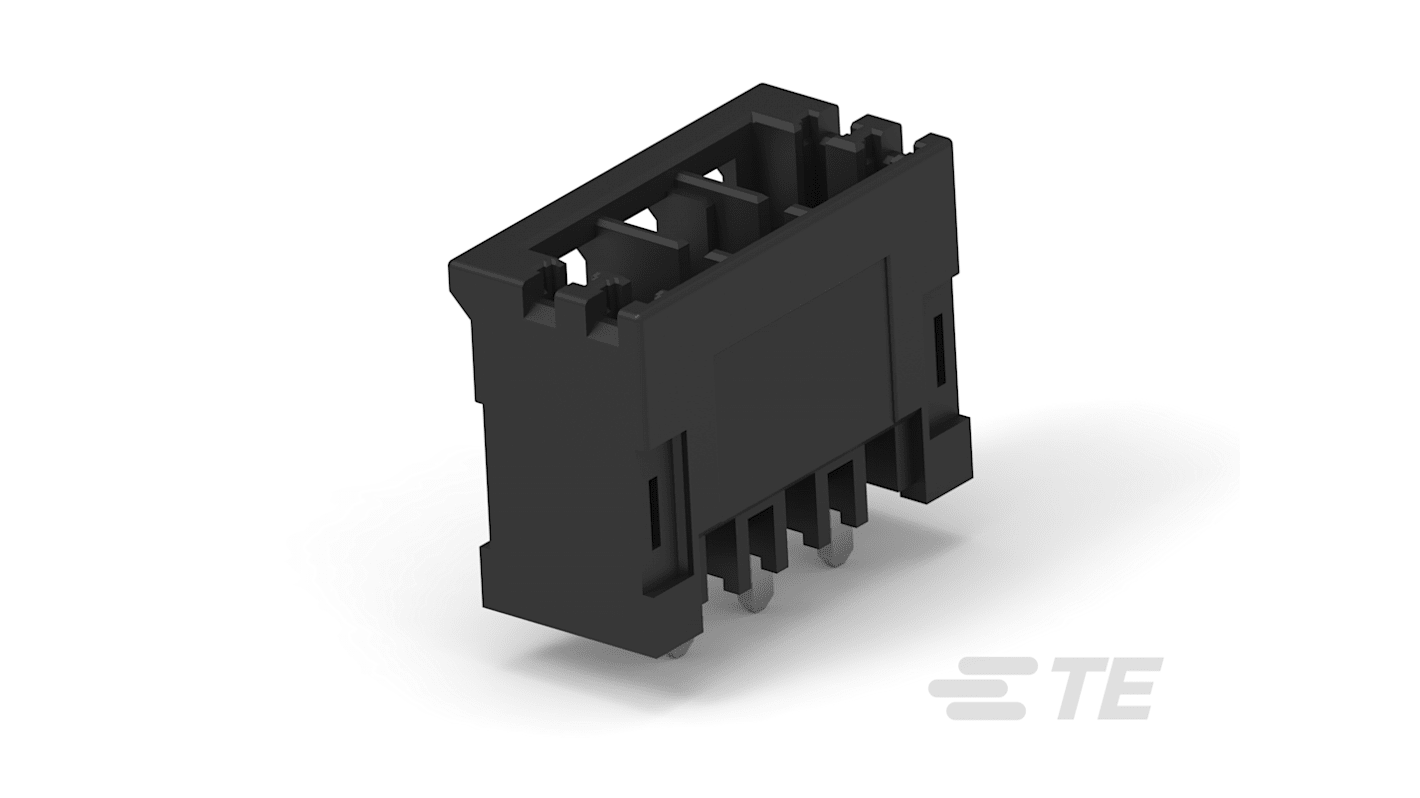

TE Connectivity, 5mm Pitch, D-2970 Dynamic, 3 Way, Pluggable Terminal Block, Header, Through Hole, 2336494-3

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 50 units)*

£50.20

(exc. VAT)

£60.25

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,150 unit(s), ready to ship
Units
Per unit
Per Box*
50 - 200£1.004£50.20
250 - 450£0.976£48.80
500 +£0.95£47.50

*price indicative

RS Stock No.:
219-0431
Mfr. Part No.:
2336494-3
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Pluggable Terminal Block Type

Header

Number of Contacts

3

Pitch

5mm

Series

D-2970 Dynamic

Number of Rows

1

Mounting Type

Through Hole

COO (Country of Origin):
CZ
The TE Connectivity D-2970 Dynamic Series is a compact 5-mm pitch wire-to-board PCB connector with field-installable, time-saving push-in clamp termination. The push-in clamp and single-hand-operating center-locking lever – both designed to require no tooling – make it possible to cut mating time by up to 90% compared with connectors using screw-latch locking systems. The center-locking lever has clear tactile and audible mating feedback to ensure safe mating. The new D-2970 PCB connector family is a powerful addition to TE well-known Dynamic Series and is fully equipped to meet our customers high standards regarding installation and application safety, also saving valuable process time and application space.

Tool less wire release is possible, due to 50% lower insertion force, which allows users to release the wire without injuring their fingertips
All designs of male header mate with the same female plug, providing electronics designers flexibility
