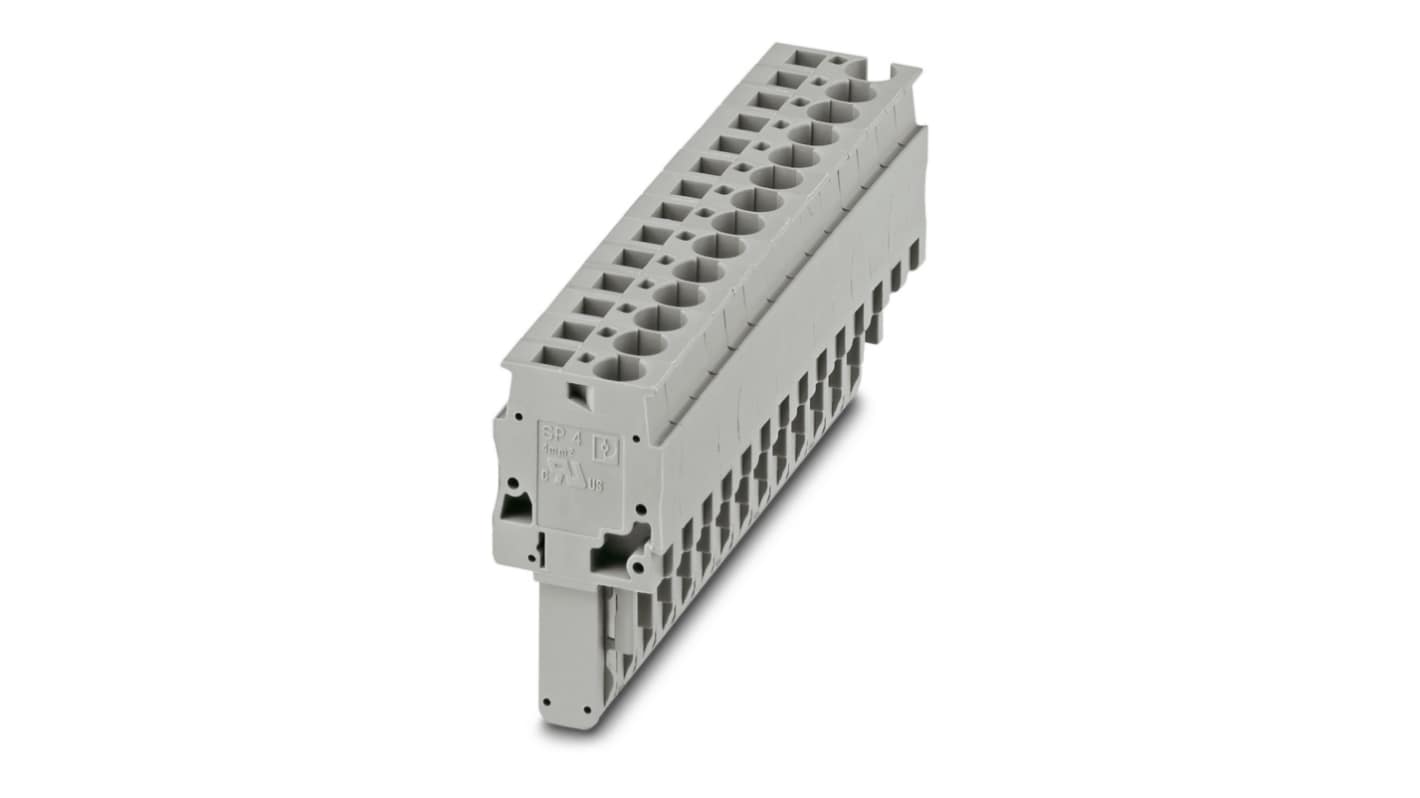

Phoenix Contact SP Series Pluggable Terminal Block, 14-Contact, 6.2 mm Pitch, 3043721
- RS Stock No.:
- 212-7468
- Mfr. Part No.:
- 3043721
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 212-7468
- Mfr. Part No.:
- 3043721
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 14 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 6.2mm | |
| Current | 32A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Wire Connection Method | Spring Cage | |
| Colour | Grey | |
| Voltage | 800V | |
| Standards/Approvals | CSA IEC 61984 | |
| Width | 86.8mm | |
| Series | SP | |
| Length | 21mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 14 | ||
Product Type Pluggable Terminal Block | ||
Pitch 6.2mm | ||
Current 32A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 10AWG | ||
Wire Connection Method Spring Cage | ||
Colour Grey | ||
Voltage 800V | ||
Standards/Approvals CSA IEC 61984 | ||
Width 86.8mm | ||
Series SP | ||
Length 21mm | ||
- COO (Country of Origin):
- PL
The Phoenix Contact plug with 14 number of positions has spring cage connection method. It is made up of the PA material and available in grey colour.
Large-surface labelling option
Practical coding option
Tested for railway applications
