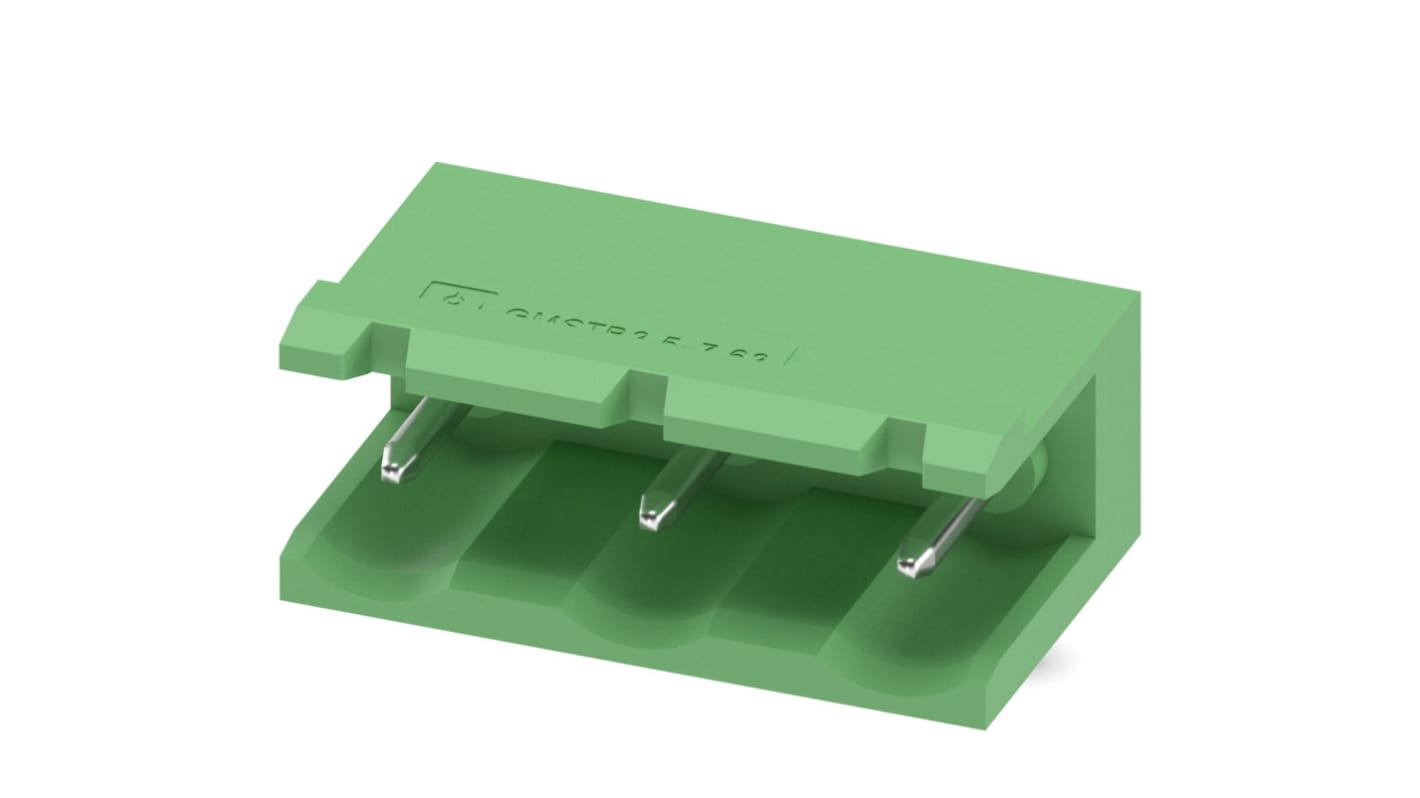

Phoenix Contact GMSTB 2.5/ 3-G-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 1766136

RS Stock No.:: 189-6313
Mfr. Part No.:: 1766136
Brand:: Phoenix Contact

Phoenix Contact GMSTB 2.5/ 3-G-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 1766136

Bulk discount available

Subtotal (1 pack of 5 units)*

£5.83

(exc. VAT)

£6.995

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 110 unit(s) shipping from 23 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 70	£1.166	£5.83
75 - 245	£1.062	£5.31
250 - 495	£0.902	£4.51
500 - 995	£0.86	£4.30
1000 +	£0.806	£4.03

*price indicative

Phoenix Contact Jumper Bars

Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.

Buy Phoenix Contact Jumper Bars

RS Stock No.:: 189-6313
Mfr. Part No.:: 1766136
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Pluggable Terminal Block
	Number of Contacts	3
	Pitch	7.62mm
	Current	12A
	Number of Rows	1
	Housing Material	Polyamide
	Connector Gender	Female
	Orientation	Right Angle
	Wire Connection Method	Solder
	Colour	Green
	Voltage	400 V
	Depth	11.8mm
	Width	21.06 mm
	Standards/Approvals	EU RoHS, CHINA RoHS, EU REACH SVHC, cULus, CSA
	Series	GMSTB 2.5/ 3-G-7.62
	Length	12mm

	Select all
	Brand Phoenix Contact
	Product Type Pluggable Terminal Block
	Number of Contacts 3
	Pitch 7.62mm
	Current 12A
	Number of Rows 1
	Housing Material Polyamide
	Connector Gender Female
	Orientation Right Angle
	Wire Connection Method Solder
	Colour Green
	Voltage 400 V
	Depth 11.8mm
	Width 21.06 mm
	Standards/Approvals EU RoHS, CHINA RoHS, EU REACH SVHC, cULus, CSA
	Series GMSTB 2.5/ 3-G-7.62
	Length 12mm

Datasheet 1766136

COO (Country of Origin):: DE

Phoenix Contact CLASSIC COMBICON GMSTB 7.62mm PCB Terminal Block Headers

Headers for Miniconnec printed circuits without end walls, allowing them to be side stacked

Mate with the corresponding cable mounting screw terminals e.g. stock no. 189-6284

Polyamide 6.6 'KRILEN' casing

1.4mm PCB hole diameter

Rated at 12A/400V

Phoenix Contact COMBICON 7.62mm Two Part Terminal Blocks

Approvals

UL94V-0
