Wurth Elektronik WR-TBL Series Pluggable Terminal Block, 9-Contact, 3.5 mm Pitch, 1 Row, 691304100009
- RS Stock No.:
- 185-4136
- Mfr. Part No.:
- 691304100009
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 box of 185 units)*
£1,039.70
(exc. VAT)
£1,246.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 185 - 740 | £5.62 | £1,039.70 |
| 925 + | £5.232 | £967.92 |
*price indicative
- RS Stock No.:
- 185-4136
- Mfr. Part No.:
- 691304100009
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Minimum Wire Size mm² | 0.21mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 1.31mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Wire Connection Method | Screwless | |
| Voltage | 300 V ac | |
| Depth | 7.8mm | |
| Length | 32.2mm | |
| Width | 21.1 mm | |
| Series | WR-TBL | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 9 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 12A | ||
Minimum Wire Size mm² 0.21mm² | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Maximum Wire Size mm² 1.31mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation Vertical | ||
Colour Green | ||
Wire Connection Method Screwless | ||
Voltage 300 V ac | ||
Depth 7.8mm | ||
Length 32.2mm | ||
Width 21.1 mm | ||
Series WR-TBL | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

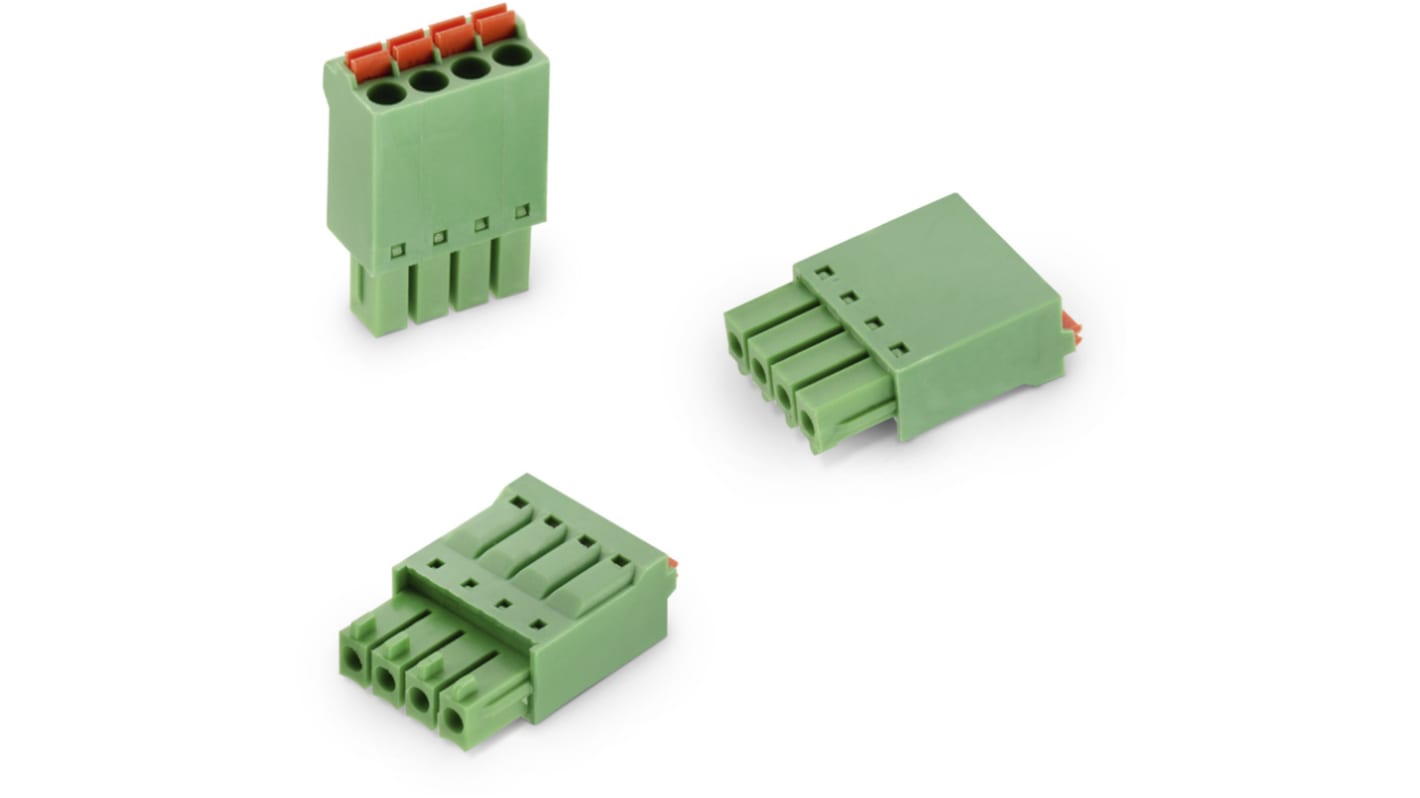

WR-TBL Series 3041 - 3.50 mm Screwless Plug Vertical Entry Low Profile
