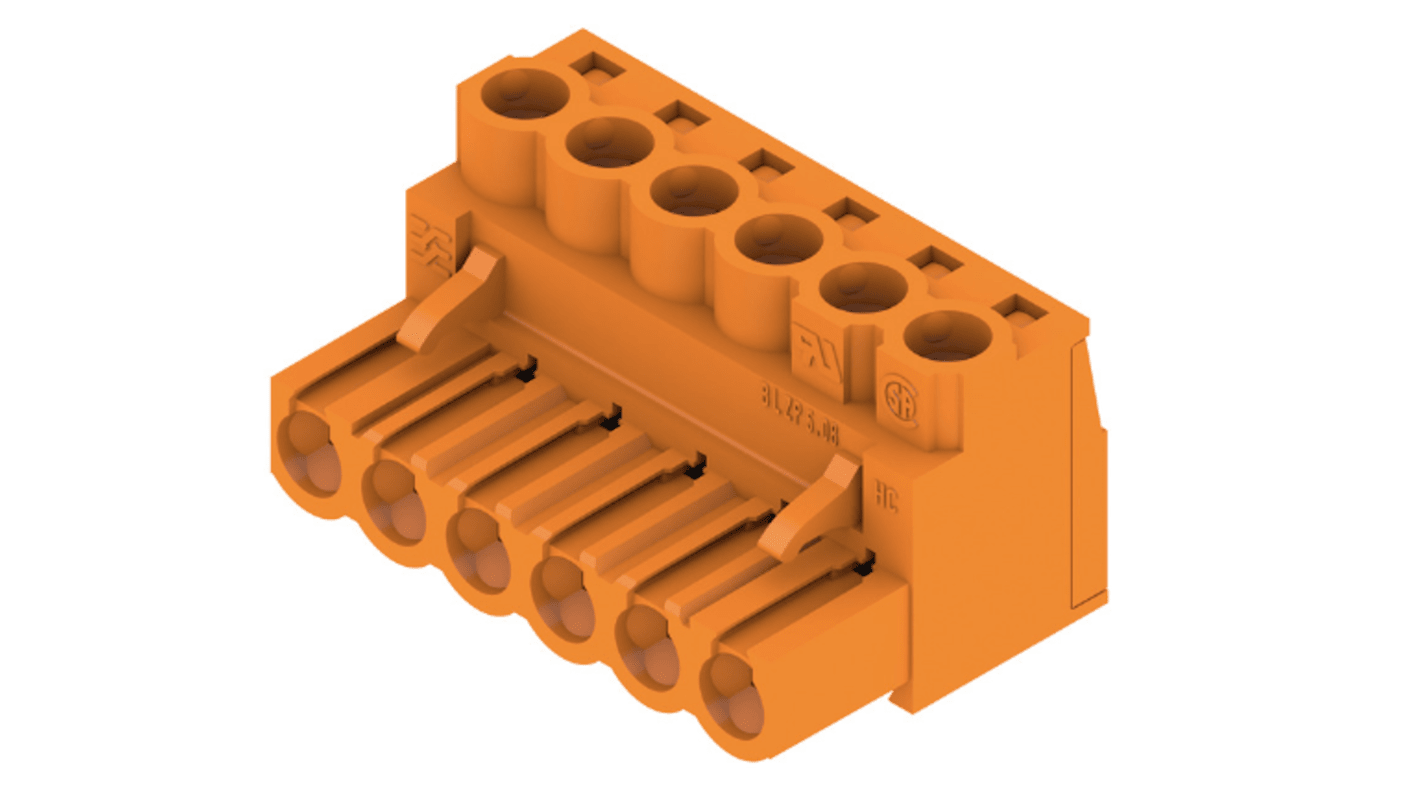

Weidmüller BL Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 1 Row, 1943620000

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 60 units)*

£198.96

(exc. VAT)

£238.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 120 unit(s) ready to ship
  • Plus 120 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Box*
60 - 240£3.316£198.96
300 - 540£3.111£186.66
600 +£2.925£175.50

*price indicative

RS Stock No.:
176-7739
Mfr. Part No.:
1943620000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Product Type

Pluggable Terminal Block

Number of Contacts

6

Pitch

5.08mm

Number of Rows

1

Current

20A

Minimum Wire Size mm²

0.2mm²

Housing Material

Copper Alloy

Maximum Wire Size mm²

4mm²

Connector Gender

Female

Minimum Wire Size AWG

26AWG

Maximum Wire Size AWG

12AWG

Orientation

Right Angle

Wire Connection Method

Screw

Colour

Orange

Voltage

400V

Length

31.4mm

Series

BL

Depth

16mm

Standards/Approvals

RoHS

Width

20.1mm

COO (Country of Origin):
DE

Weidmuller Series BL Pluggable Terminal Block, 20A Current Rating, 300V/400V Voltage Rating - 1943620000


This pluggable Terminal Block ensures electrical connections suitable for various applications in automation and electronics. With a Compact right-angle design, it is Ideal for installations in confined spaces. Featuring a pitch of 5.08mm and accommodating six contacts, it offers effective termination for multiple configurations.

Features & Benefits


• Right-angle orientation optimises space during installation

• Six contacts provide flexible connectivity options

• Screw termination ensures a secure connection

• Rated for a current of 20A

• Operates at voltage ratings of 300V and 400V

• Constructed from Durable copper alloy for extended service life

Applications


• Utilised in automation control panels

• Suitable for circuit board

• Appropriate for electrical wiring harnesses

• Commonly employed in mechanical device connections

• Effective for both home and industrial electrical systems

What is the connection method for the BLZP 5.08HC/06/180?


It uses a clamping yoke connection for optimal secure wiring.

Will it fit in a limited space?


Yes, the right-angle design is space-efficient.

Is it compatible with various voltage ratings?


Yes, it operates at both 300V and 400V.

What is the maximum operating temperature for this connector?


The maximum operating temperature is 100°C.

Is this connector compliant with any environmental standards?


Yes, it is compliant with RoHS and adheres to IEC 60664-1 standards.
