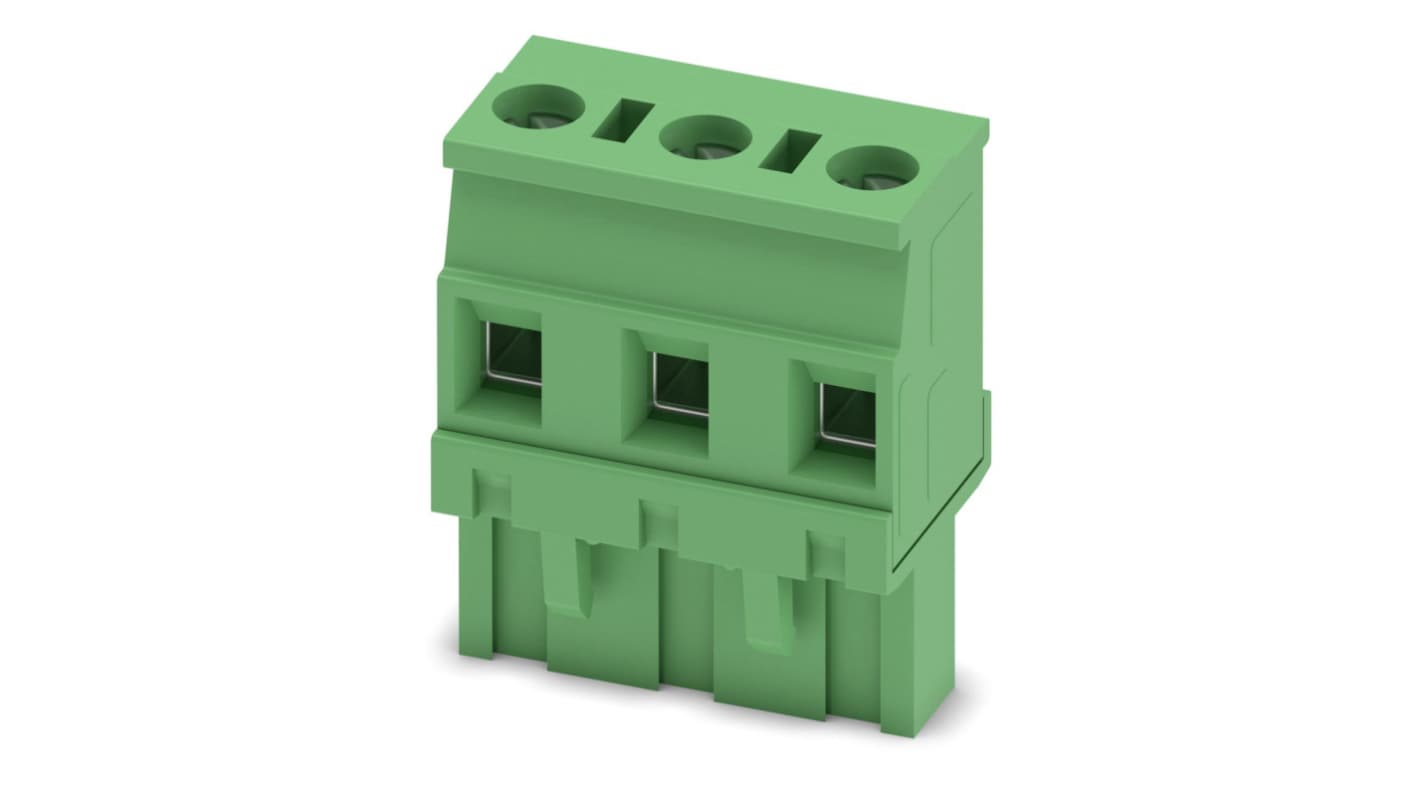

Phoenix Contact GMVSTBR 2.5/3-ST-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 1832536
- RS Stock No.:
- 176-1241
- Mfr. Part No.:
- 1832536
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 box of 50 units)*
£183.25
(exc. VAT)
£219.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 50 unit(s) shipping from 02 April 2026
- Plus 100 unit(s) shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 200 | £3.665 | £183.25 |
| 250 - 450 | £3.299 | £164.95 |
| 500 + | £3.005 | £150.25 |
*price indicative
- RS Stock No.:
- 176-1241
- Mfr. Part No.:
- 1832536
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 7.62mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Right Angle | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 1 kV | |
| Length | 12.6mm | |
| Standards/Approvals | RoHS | |
| Width | 20.82 mm | |
| Depth | 26mm | |
| Series | GMVSTBR 2.5/3-ST-7.62 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 7.62mm | ||
Number of Rows 1 | ||
Current 12A | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Right Angle | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 1 kV | ||
Length 12.6mm | ||
Standards/Approvals RoHS | ||
Width 20.82 mm | ||
Depth 26mm | ||
Series GMVSTBR 2.5/3-ST-7.62 | ||
- COO (Country of Origin):
- DE
Phoenix Contact PCB Header, 12A Current Rating, 7.62mm Pitch - GMVSTBR 2,5/ 3-ST-7,62 - 1832536
Stop crossed wires from causing confusion with this PCB header from Phoenix Contact. It lets you easily connect multiple wires to a PCB using just one component, while safely and reliably transmitting signals, data and power.
For your safety, this unit won't add fuel to a fire, thanks to its flame-retardant housing. Maximum contact force makes it a cool operator, so there's little need for additional fans or ventilation devices. Its contact geometry is designed for the long haul, so there's minimal chance of the header wearing down over time. Don't worry about electrical spikes affecting function, either, as it safely handles surges of up to 6kV.
This part's large pitch of 7.62mm means it's suitable to use in demanding systems with power needs of up to 12A. It's a safe pair of hands for automotive manufacturing and food processing applications.
• Screw connection with tension sleeve that holds wires securely, reducing the need for regular re-tightening
• Compact dimensions of 12.6 (L) x 20.82 (W) x 26mm (H) to maximise board packing efficiency
• Insulated for safety, so there's minimal risk of electric shocks
PCB connector, nominal current: 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, colour: green, contact surface: Tin
