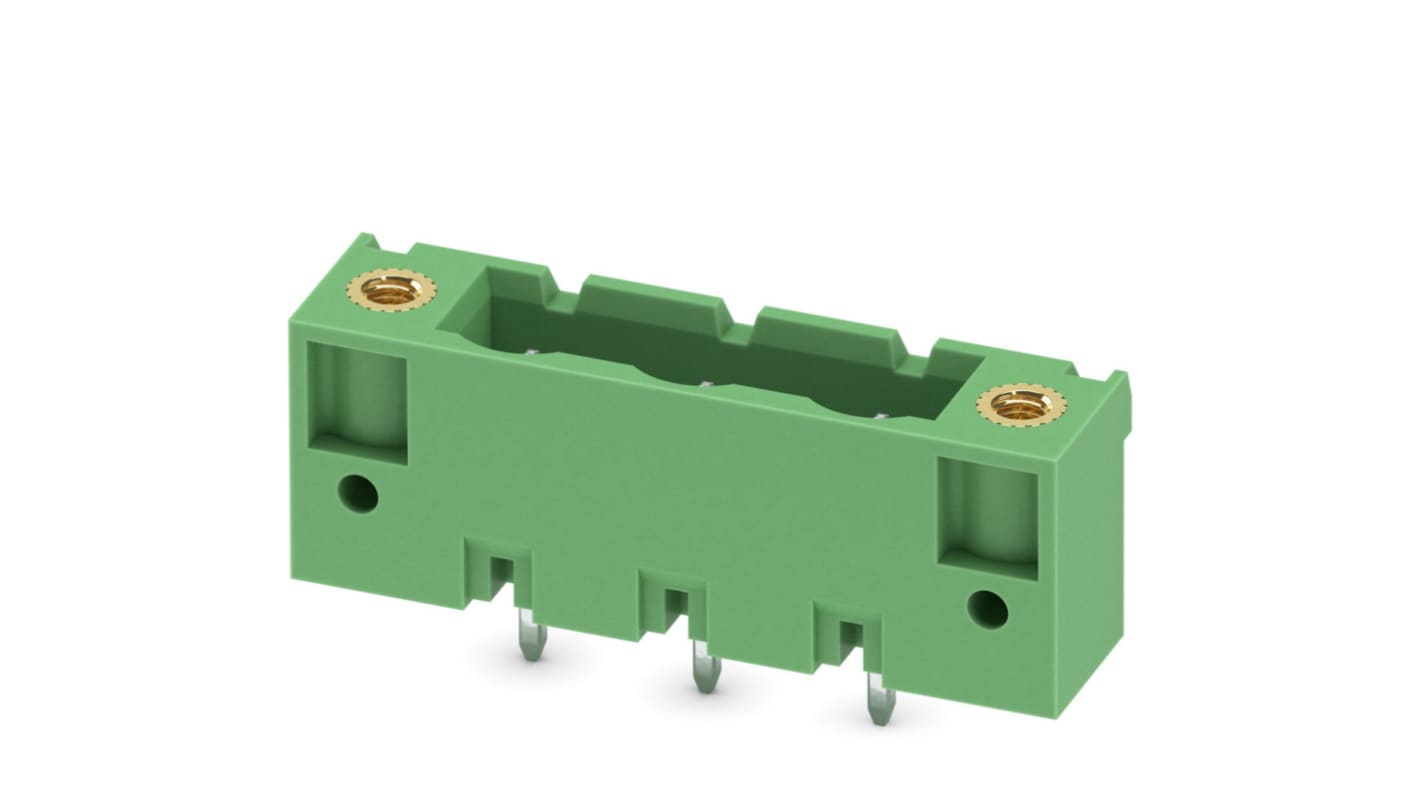

Phoenix Contact GMSTBV 2.5/ 3-GF-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 1829167

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 50 units)*

£118.10

(exc. VAT)

£141.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 250 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 - 200£2.362£118.10
250 +£2.017£100.85

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
176-1236
Mfr. Part No.:
1829167
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Contacts

3

Product Type

Pluggable Terminal Block

Pitch

7.62mm

Current

12A

Number of Rows

1

Housing Material

Polyamide

Maximum Wire Size mm²

2.5mm²

Connector Gender

Male

Orientation

Straight

Wire Connection Method

Solder

Colour

Green

Voltage

630 V

Depth

15.9mm

Width

33.44 mm

Standards/Approvals

CHINA RoHS, CSA, cULus, EU REACH SVHC, EU RoHS

Series

GMSTBV 2.5/ 3-GF-7.62

Length

8.6mm

COO (Country of Origin):
DE

Phoenix Contact PCB Terminal Block


The Phoenix Contact PCB GMSTBV series wave soldering mount male straight Terminal Block has 3 contacts. It has a voltage rating of 630V and current rating of 12A. The Terminal Block has tin contacts. The well-known mounting principle allows it to be used worldwide. It has a vertical connection which enables multi-row arrangement on the PCB. This Terminal is used as industrial equipment.

Features and Benefits


• Larger pitch

• Maximum flexibility

• Pitch size is 7.62mm

• Polyamide material

• Single row

• Termination method push-in
