MPN

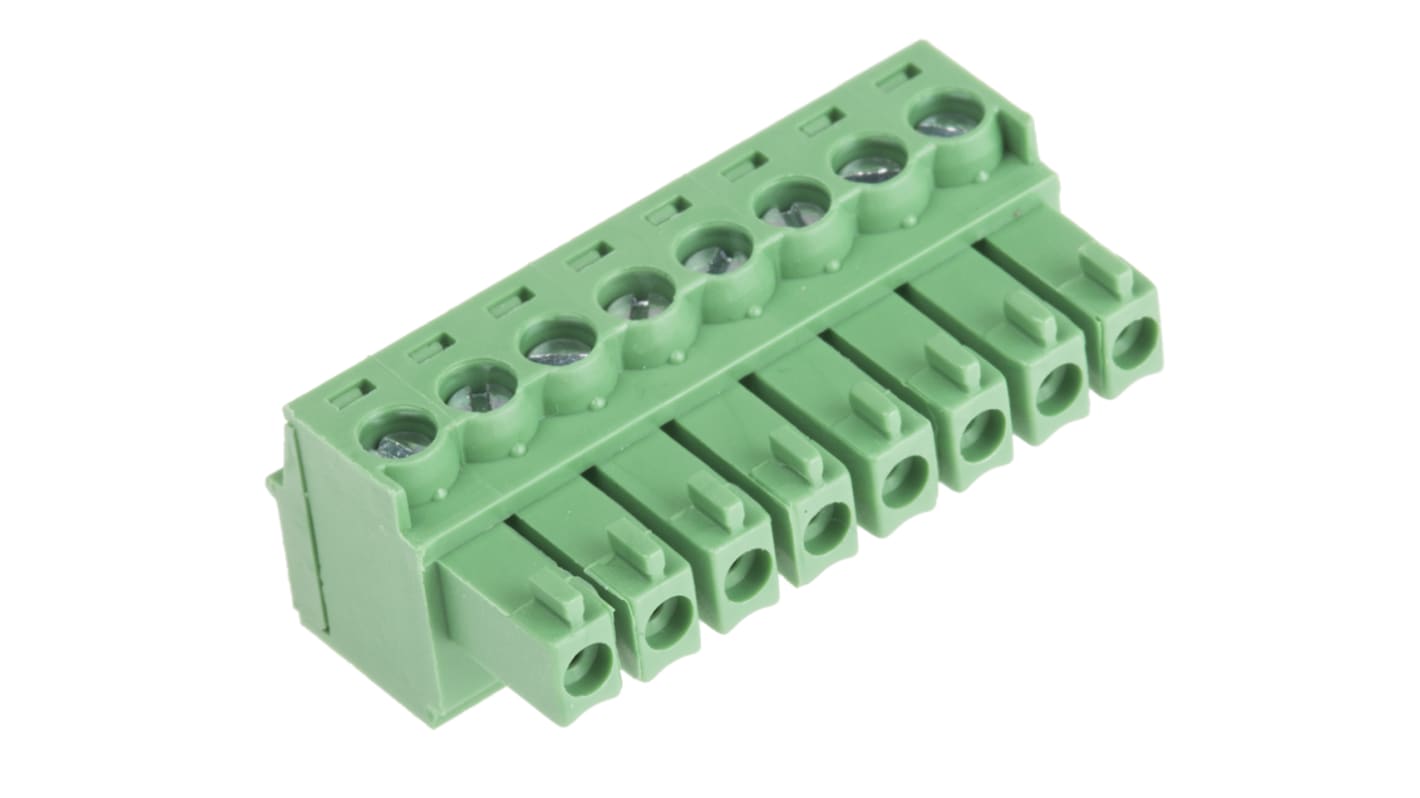

RS PRO, 3.5mm Pitch, 8 Way, , Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS Stock No.:: 144-4069
Brand:: RS PRO

RS PRO, 3.5mm Pitch, 8 Way, , Pluggable Terminal Block, Plug, Through Hole, Screw Termination

Discontinued

RS Stock No.:: 144-4069
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Pluggable Terminal Block Type	Plug
	Number of Contacts	8
	Pitch	3.5mm
	Number of Rows	1
	Body Orientation	Straight
	Mounting Type	Through Hole
	Termination Method	Screw
	Current Rating	10A
	Voltage Rating	300 V
	Colour	Green
	Material	Nylon 66

	Select all
	Brand RS PRO
	Pluggable Terminal Block Type Plug
	Number of Contacts 8
	Pitch 3.5mm
	Number of Rows 1
	Body Orientation Straight
	Mounting Type Through Hole
	Termination Method Screw
	Current Rating 10A
	Voltage Rating 300 V
	Colour Green
	Material Nylon 66

2-12 pole solid block
Pluggable male-female connectors
Polarised mouldings
Moulded in green UL94-V0 flame retardant PA66
Professional rising clamp terminals
1.0mm2 (28-16AWG) solid & stranded cable
Captive screws
Guided pin alignment
UL & VDE approved
