Phoenix Contact Pluggable Terminal Block, 3-Contact, 3.81 mm Pitch, 1 Row, 1341133
- RS Stock No.:
- 609-942
- Mfr. Part No.:
- 1341133
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£37.02
(exc. VAT)
£44.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £37.02 | £0.74 |
*price indicative
- RS Stock No.:
- 609-942
- Mfr. Part No.:
- 1341133
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Housing Material | Polybutylene Terephthalate | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 0° | |
| Wire Connection Method | Crimp Connection | |
| Colour | Black | |
| Voltage | 160V | |
| Length | 33.6mm | |
| Standards/Approvals | IEC 60512-1-2:2002-02, IEC 60068-2-70:1995-12, DIN EN 61984, IEC 60512-15-1:2008-05, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, UL, ISO 6988:1985-02, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02 | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Housing Material Polybutylene Terephthalate | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 0° | ||
Wire Connection Method Crimp Connection | ||
Colour Black | ||
Voltage 160V | ||
Length 33.6mm | ||
Standards/Approvals IEC 60512-1-2:2002-02, IEC 60068-2-70:1995-12, DIN EN 61984, IEC 60512-15-1:2008-05, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, UL, ISO 6988:1985-02, IEC 60664-1:2007-04, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02 | ||
Width 4mm | ||
- COO (Country of Origin):
- CN

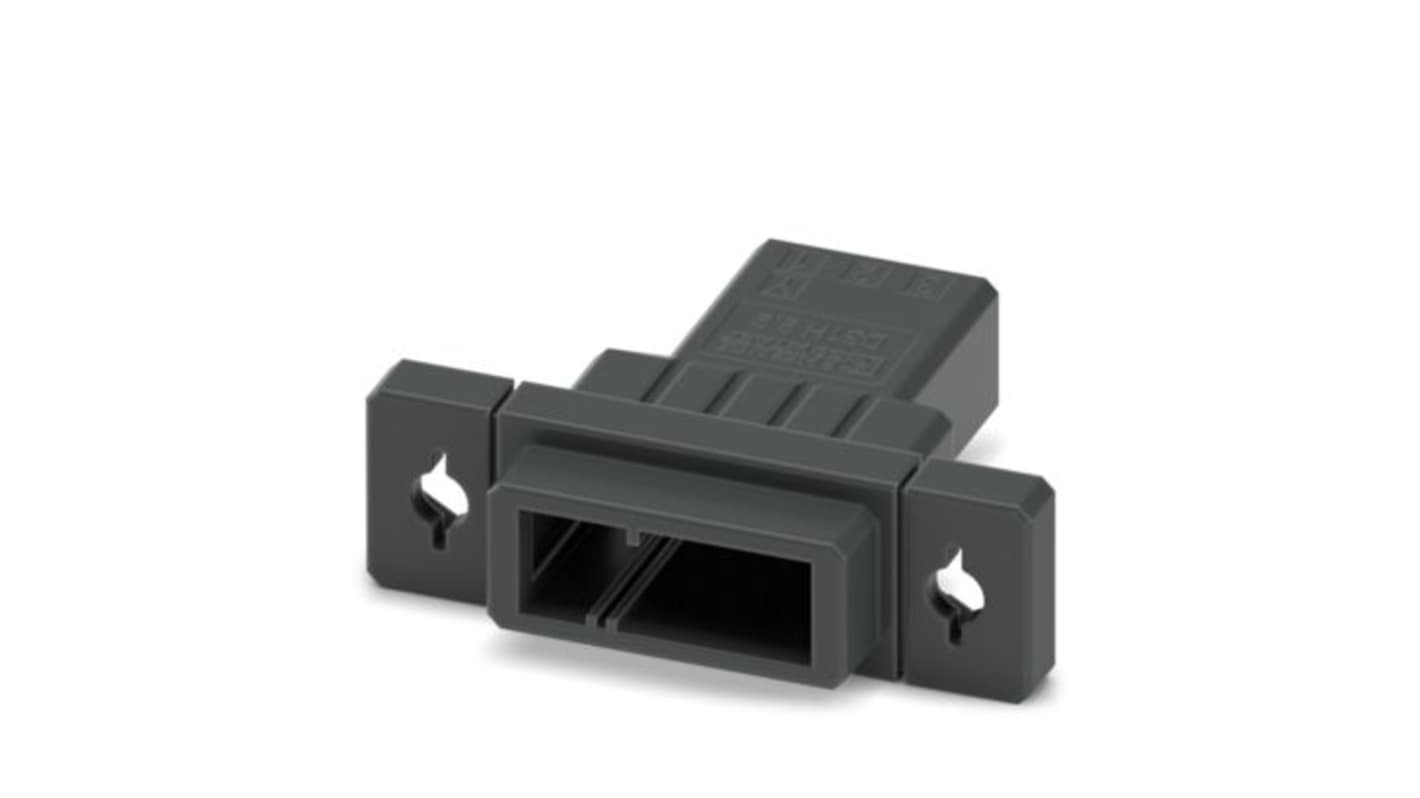

The Phoenix Contact Feed Through plug exemplifies precision and reliability in electrical connectivity. Designed specifically for seamless integration, this connector caters to a variety of industrial applications where secure and efficient connections are paramount. With its crimp connection method and compact design, the D31H offers a nominal current rating of 8 A and a rated voltage of 160 V, making it suitable for demanding environments. The black housing, made from PBT, ensures both durability and aesthetic appeal.
Durable housing material enhances longevity and reduces wear
Snap in locking mechanism ensures secure connections
Rigorous testing confirms resilience to mechanical and electrical stress
Dedicated crimp contacts support various conductor cross sections
Environmentally friendly design complies with EU RoHS requirements
