Phoenix Contact 5/..-PL, PTCM 0 Series Pluggable Terminal Block, 3-Contact, 2.5 mm Pitch, 1 Row, 1015463
- RS Stock No.:
- 565-715
- Mfr. Part No.:
- 1015463
- Brand:
- Phoenix Contact
Subtotal (1 pack of 250 units)*
£139.72
(exc. VAT)
£167.66
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £139.72 | £0.559 |
*price indicative
- RS Stock No.:
- 565-715
- Mfr. Part No.:
- 1015463
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 2.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | PA | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 26 AWG | |
| Maximum Wire Size AWG | 18 AWG | |
| Orientation | Straight | |
| Colour | Black | |
| Wire Connection Method | Crimp | |
| Voltage | 160 V | |
| Series | 5/..-PL, PTCM 0 | |
| Width | 16.96 mm | |
| Length | 16.2mm | |
| Depth | 3.9mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 2.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material PA | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 26 AWG | ||
Maximum Wire Size AWG 18 AWG | ||
Orientation Straight | ||
Colour Black | ||
Wire Connection Method Crimp | ||
Voltage 160 V | ||
Series 5/..-PL, PTCM 0 | ||
Width 16.96 mm | ||
Length 16.2mm | ||
Depth 3.9mm | ||
- COO (Country of Origin):
- DE

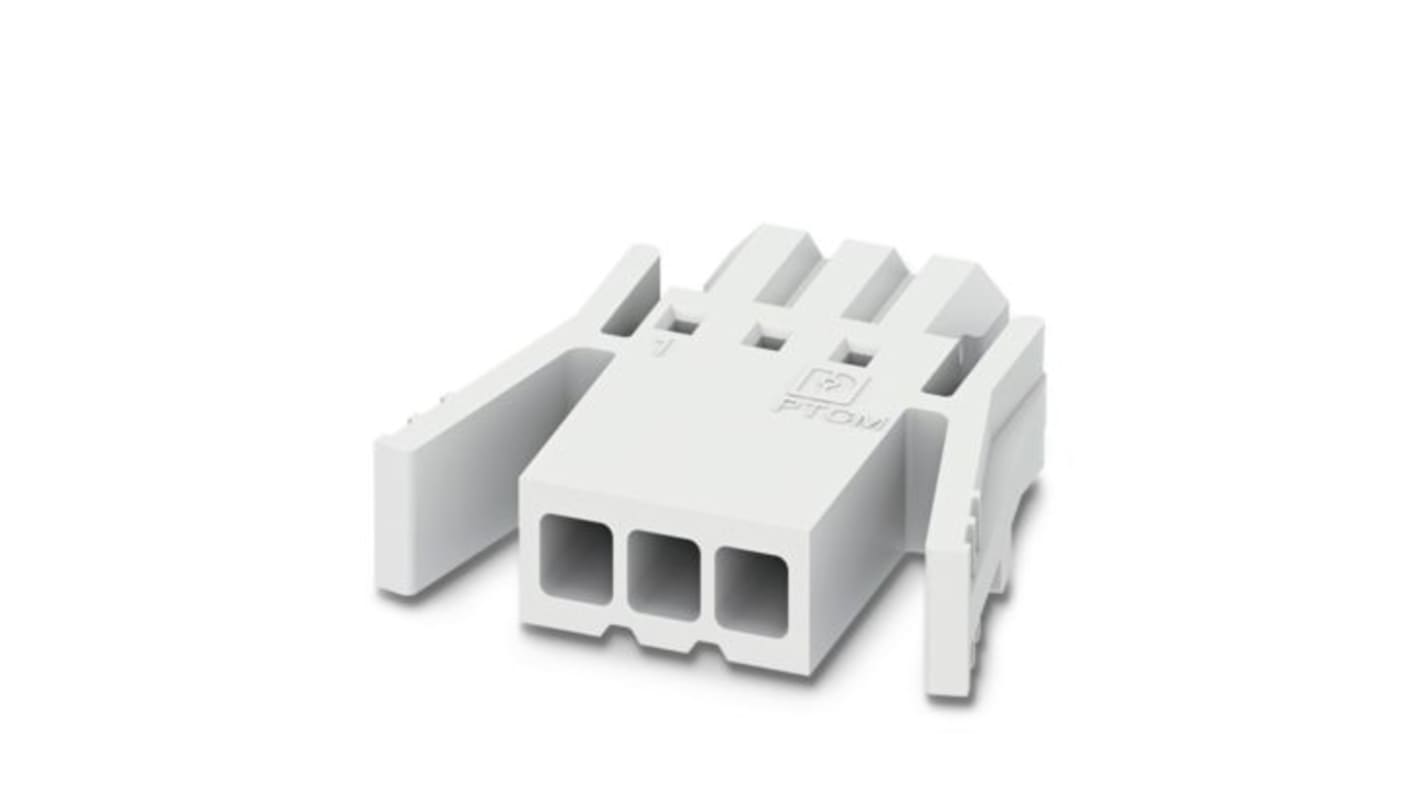

The Phoenix Contact PCB Connector offers a reliable connection in compact dimensions, ideal for applications requiring stable electrical performance. Designed with a nominal current of 6 A and rated voltage of 160 V, this connector ensures optimal conductivity and minimal contact resistance. Its intuitive snap-in locking mechanism enhances safety by preventing accidental disconnections, making it a practical choice for various electronic applications. Engineered for crimp connections, it accommodates a wide range of conductor cross-sections while delivering excellent durability and performance. The product's white housing not only presents a clean aesthetic but also guarantees stable colour during welding and usage, contributing to its long-lasting appeal. Incorporating the latest design innovations, this PCB connector is a testament to quality and functionality, designed to meet professional standards and user expectations with ease.
Intuitive locking mechanism for secure connections
Snap in locking design prevents accidental disconnections
Compact dimensions accommodate tight spaces in assemblies
Durable crimp connections support a range of conductor sizes
High current capacity enhances overall performance reliability
Stable white colour ensures aesthetic consistency during use
Environmentally compliant design aligns with industry standards
