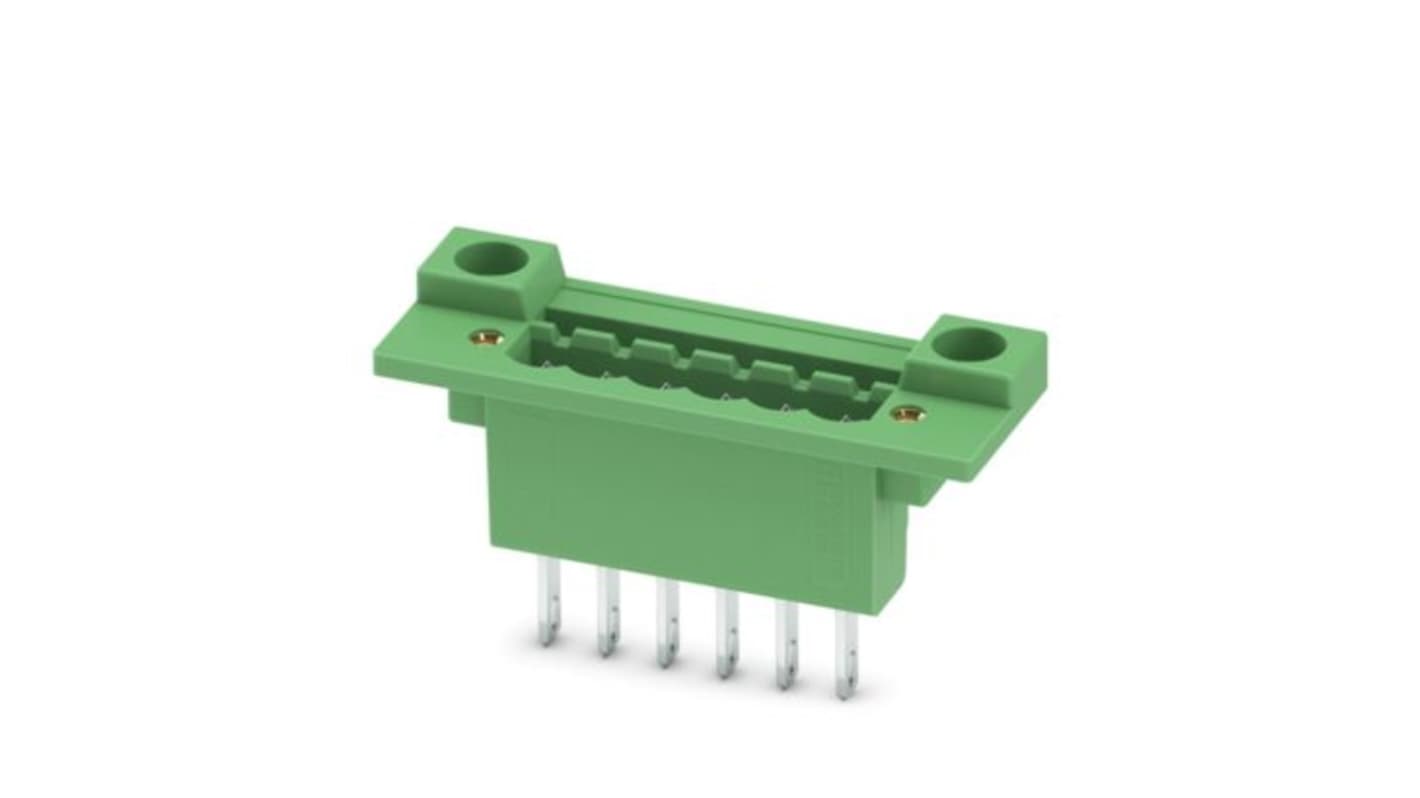

Phoenix Contact Threaded Pluggable Terminal Block, 6 Contact(s), 5.08 mm Pitch, 1 Row(s)
- RS Stock No.:
- 556-149
- Mfr. Part No.:
- 0710219
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£386.52
(exc. VAT)
£463.82
(inc. VAT)
Stock information currently inaccessible
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £386.52 | £7.73 |
*price indicative
- RS Stock No.:
- 556-149
- Mfr. Part No.:
- 0710219
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Current | 12A | |
| Pitch | 5.08mm | |
| Number of Contacts | 6 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Threaded | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 5.08mm | |
| Termination Type | Solder | |
| Tail Pin Length | 9.3mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CSA 13631, cULus E60425-19931011, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, VDE 40050648 | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Current 12A | ||
Pitch 5.08mm | ||
Number of Contacts 6 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Threaded | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 5.08mm | ||
Termination Type Solder | ||
Tail Pin Length 9.3mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CSA 13631, cULus E60425-19931011, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, VDE 40050648 | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact feed through header represents a versatile solution for panel feed-through applications. Designed for reliability and easy integration, it offers the flexibility of both solder and slip-on connections, catering to diverse device design needs. With a robust construction that includes a threaded flange for superior mechanical stability, this product ensures secure mounting in various environments. Its efficient design allows for optimal positioning of cables within devices, enabling a cleaner layout. Ideal for industrial settings, this feed-through header supports multiple electrical configurations, making it essential for modern applications requiring dependable connectivity.
Designed to accommodate a linear pin layout for straightforward integration
Green housing colour aids in easy identification within panels
Robust construction ensures long lasting performance in demanding environments
Compact dimensions allow for efficient use of space in enclosures
Available in a minimum order quantity that caters to bulk purchasing needs
Screw locking mechanism provides added security for connections
WEEE/RoHS compliant ensuring adherence to environmental standards
