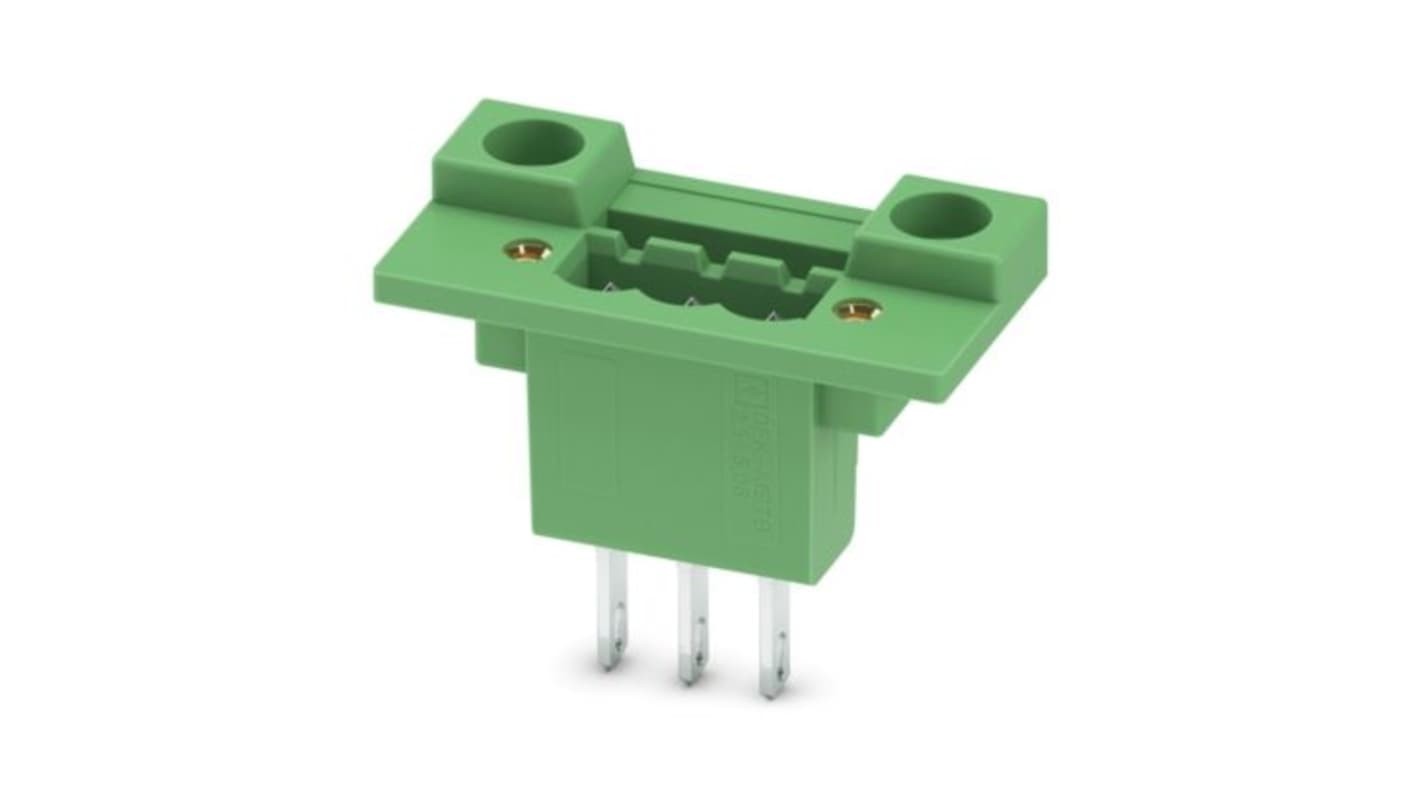

Phoenix Contact Threaded Pluggable Terminal Block, 3 Contact(s), 5.08 mm Pitch, 1 Row(s)
- RS Stock No.:
- 556-148
- Mfr. Part No.:
- 0710183
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£245.29
(exc. VAT)
£294.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £245.29 | £4.906 |
*price indicative
- RS Stock No.:
- 556-148
- Mfr. Part No.:
- 0710183
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Threaded | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 5.08mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 9.3mm | |
| Standards/Approvals | CSA 13631, cULus E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE 40050648 | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Current 12A | ||
Housing Material Polyamide | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Threaded | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 5.08mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 9.3mm | ||
Standards/Approvals CSA 13631, cULus E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE 40050648 | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through header is designed to offer exceptional versatility and reliability for various electrical applications. Its robust construction, featuring a nominal cross-section of 2.5 mm², ensures efficient performance while accommodating a nominal current of up to 12 A. The product seamlessly integrates into device designs, enabling both permanent solder connections and standardised slip-on options. With a pitch of 5.08 mm and a linear pin layout, it simplifies installation while promoting mechanical stability through its screw locking mechanism. The header is compliant with various international standards, ensuring it meets industry requirements and provides peace of mind for users. Moreover, its compact size and green housing make it a practical choice for space-constrained environments, enhancing overall device aesthetics and functionality.
Flexible positioning of the panel feed-through allows for customised installation
Choose between a permanent solder connection or a streamlined slip-on connection
One header supports different connection technologies for maximum versatility
A screw locking mechanism guarantees superior mechanical stability
Packed in cardboard for environmentally friendly logistics
VDE approved, ensuring quality and conformity to strict standards
