Eaton xEnergy Series Pluggable Terminal Block, 1-Contact, 1 Row, 289970 BPZ-KB-6/160
- RS Stock No.:
- 259-307
- Mfr. Part No.:
- 289970 BPZ-KB-6/160
- Brand:
- Eaton
Subtotal (1 unit)*
£42.30
(exc. VAT)
£50.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.30 |
*price indicative
- RS Stock No.:
- 259-307
- Mfr. Part No.:
- 289970 BPZ-KB-6/160
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Contacts | 1 | |
| Product Type | Pluggable Terminal Block | |
| Number of Rows | 1 | |
| Current | 160A | |
| Minimum Wire Size mm² | 2.5mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 14 AWG | |
| Maximum Wire Size AWG | 6 AWG | |
| Orientation | Straight | |
| Colour | Grey | |
| Voltage | 1000 V ac, 1500 V dc | |
| Depth | 49mm | |
| Width | 35 mm | |
| Length | 92mm | |
| Series | xEnergy | |
| Standards/Approvals | UL 1059 IEC 60 947 -7 -1 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Contacts 1 | ||
Product Type Pluggable Terminal Block | ||
Number of Rows 1 | ||
Current 160A | ||
Minimum Wire Size mm² 2.5mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 14 AWG | ||
Maximum Wire Size AWG 6 AWG | ||
Orientation Straight | ||
Colour Grey | ||
Voltage 1000 V ac, 1500 V dc | ||
Depth 49mm | ||
Width 35 mm | ||
Length 92mm | ||
Series xEnergy | ||
Standards/Approvals UL 1059 IEC 60 947 -7 -1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

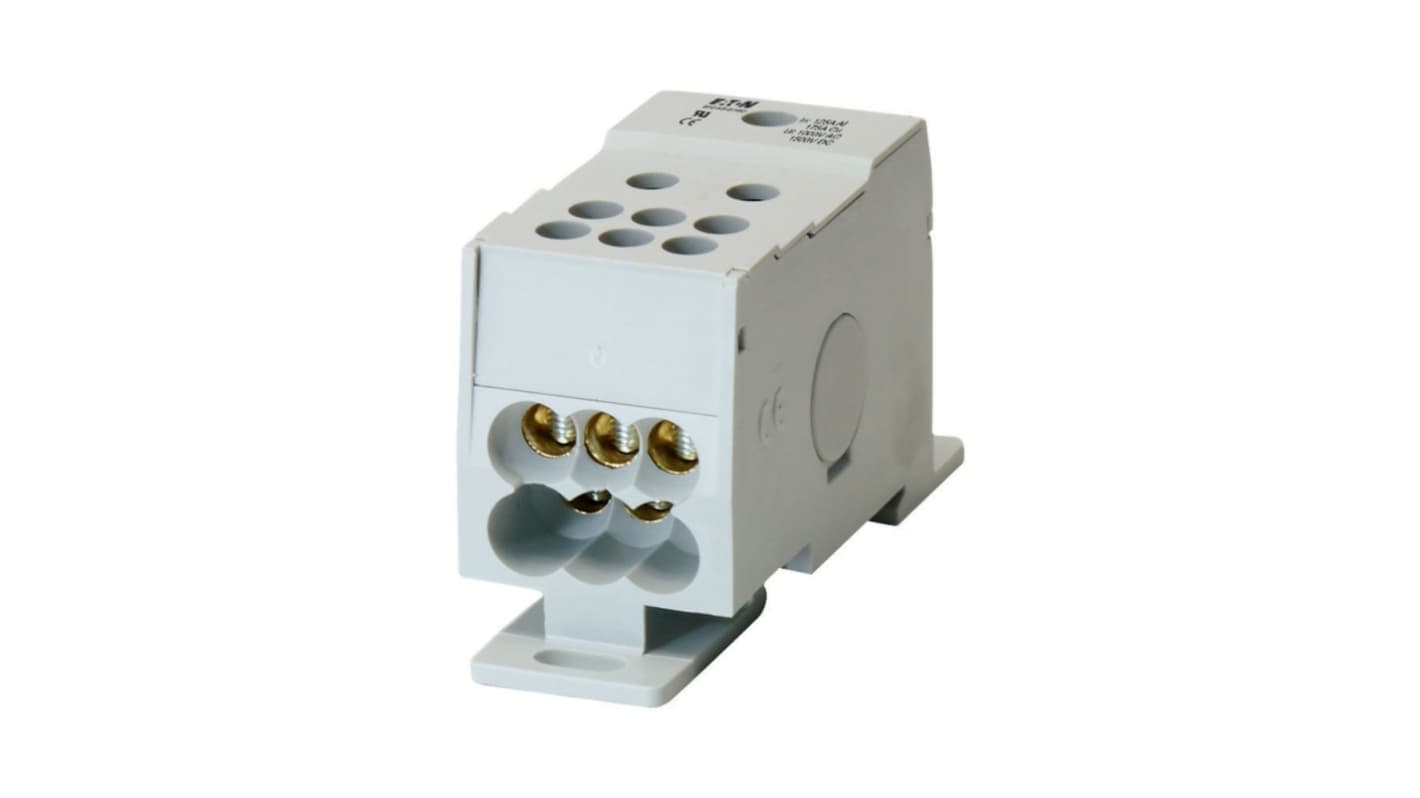

The Eaton xEnergy Basic single-pole terminal block is designed to meet the demands of modern low voltage switchgear applications. With its robust construction and modular design, this accessory not only enhances wiring efficiency but also maximises space-saving in various installations. Featuring a well-engineered blend of safety and performance, it supports a range of conductor cross sections, allowing seamless integration into existing systems. Whether utilised in floor-standing distribution boards or surface-mounted setups, this terminal block is a reliable choice backed by compliance with industry standards.
Constructed for optimal durability and reliability
Modular design allows for easy expansion and configuration
Universal mounting position enhances installation flexibility
Torque ratings ensure secure connections without risk of damage
Versatile conductor cross section compatibility caters to varied applications
Light grey housing colour offers a clean and modern aesthetic
Plain brass clamp material ensures superior conductivity
Designed to save up to 80% on required space
Flame classification of V-0 enhances safety in operation
Compliances with RoHS regulations reflects commitment to environmental standards
