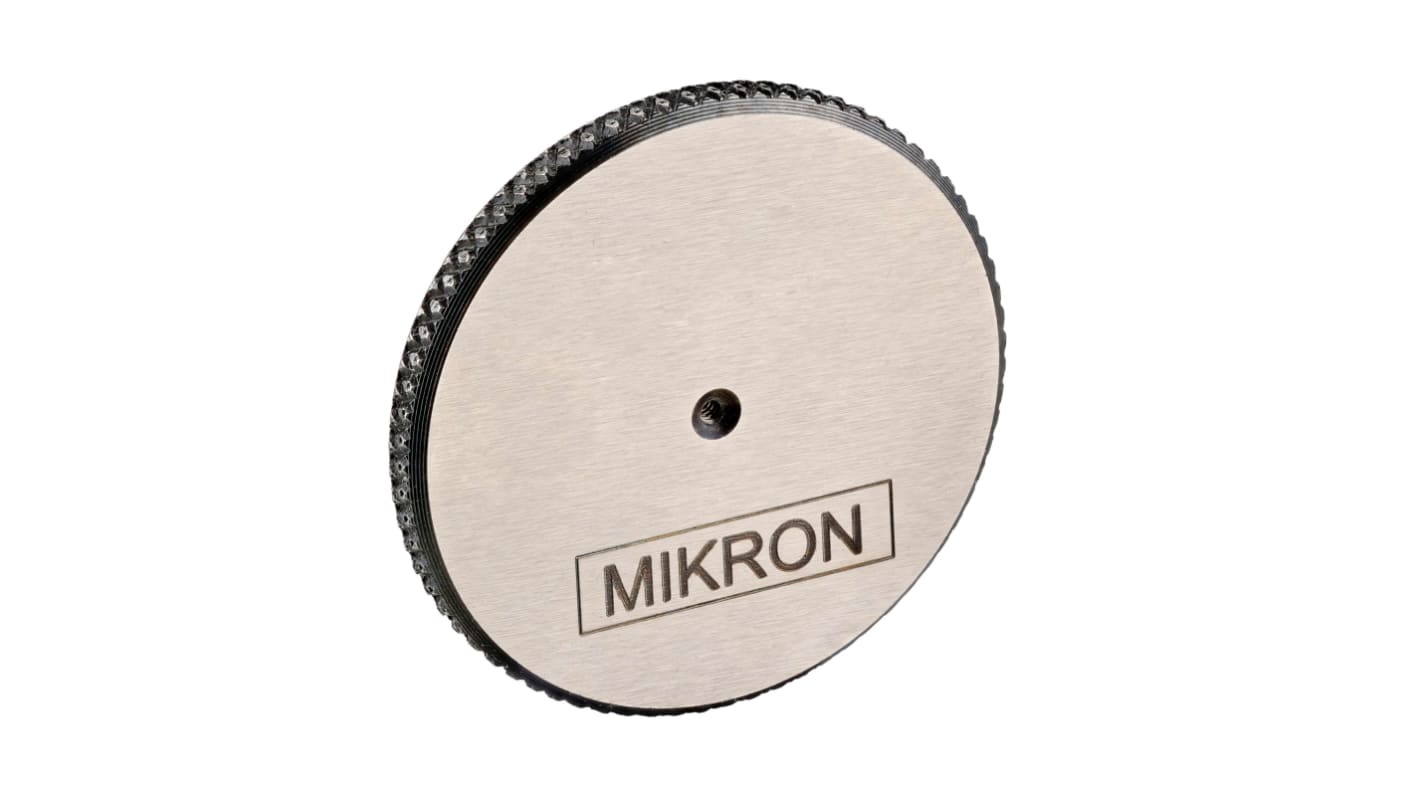

MikronTec M11 x 1.5 Ring Thread Gauge Ring Gauge, 1.5mm Pitch Diameter
- RS Stock No.:
- 265-8540
- Mfr. Part No.:
- 92A01100M1D
- Brand:
- MikronTec
Available to back order for despatch 24/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£75.86
(exc. VAT)
£91.03
(inc. VAT)
| Units | Per unit |
| 1 + | £75.86 |
- RS Stock No.:
- 265-8540
- Mfr. Part No.:
- 92A01100M1D
- Brand:
- MikronTec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The MikronTec thread ring gauge is a gauge used to test a threaded shaft. The Go gauge must be able to be screwed on the threaded shaft without excessive force. The No-Go gauge (indicated in red) must not fit on the test item. These gauges are used to check whether the actual thread of a test item is within a specified target range.
Conforms to DIN13 - ISO 1502
Right handled
High precision and fast μm production
Right handled
High precision and fast μm production
Specifications
Attribute | Value |
|---|---|
| Plug/Ring | Ring |
| Gauge Type | Ring Thread Gauge |
| Go / No Go | No Go |
| Thread Size | M11 x 1.5 |
| Pitch Diameter | 1.5mm |
