MikronTec M22 x 2.5 Plug Thread Gauge Plug Gauge, 2.5mm Pitch Diameter
- RS Stock No.:
- 265-8474
- Mfr. Part No.:
- 0022010050
- Brand:
- MikronTec
Available to back order for despatch 31/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£99.14
(exc. VAT)
£118.97
(inc. VAT)
| Units | Per unit |
| 1 + | £99.14 |
- RS Stock No.:
- 265-8474
- Mfr. Part No.:
- 0022010050
- Brand:
- MikronTec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

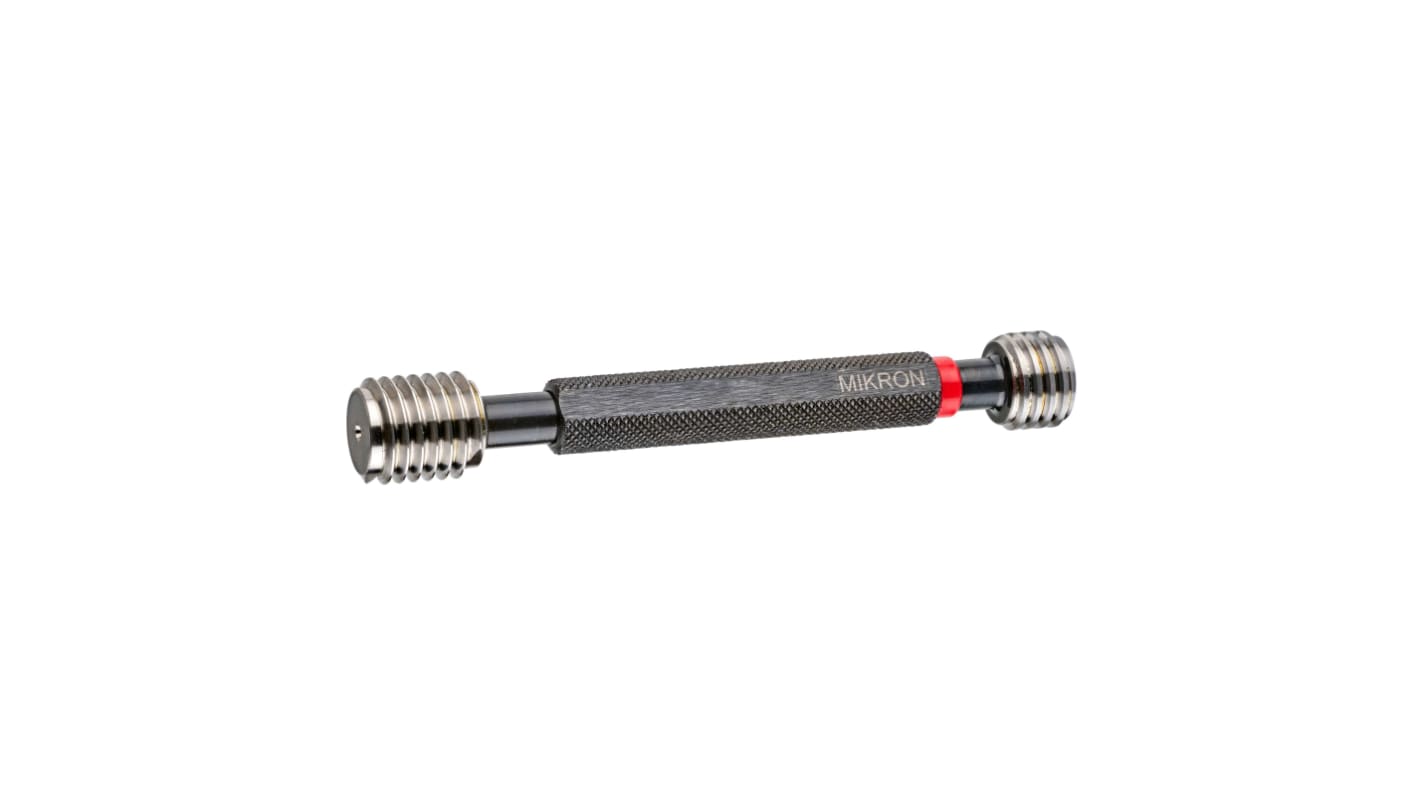

The MikronTec limit thread plug gauge have a Go and a No-Go side. The go side must be able to be screwed in threads/threaded holes by hand without applying any force, whereas the No-Go side, which is indicated in red, must not fit in the test item. These gauges are used to check whether the actual thread of a test item is within a specified target range.
Conforms to DIN13 - ISO 1502
Right handled
High precision and fast μm production
Right handled
High precision and fast μm production
Specifications
Attribute | Value |
|---|---|
| Plug/Ring | Plug |
| Gauge Type | Plug Thread Gauge |
| Go / No Go | Go/No Go |
| Thread Size | M22 x 2.5 |
| Pitch Diameter | 2.5mm |
