- RS Stock No.:
- 265-8467
- Mfr. Part No.:
- 0016050053
- Brand:
- MikronTec
Available to back order for despatch 29/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£90.79
(exc. VAT)
£108.95
(inc. VAT)
Units | Per unit |
1 + | £90.79 |
- RS Stock No.:
- 265-8467
- Mfr. Part No.:
- 0016050053
- Brand:
- MikronTec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

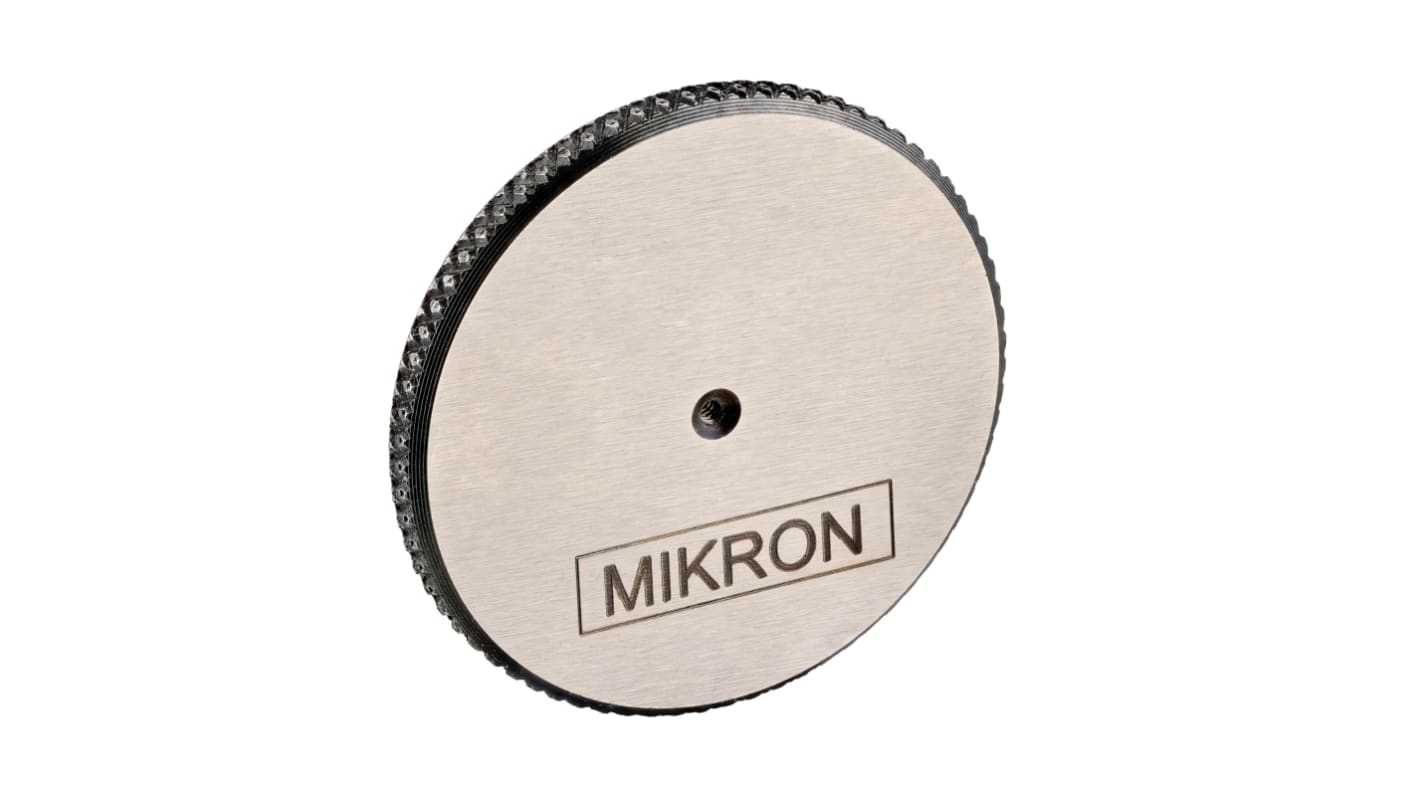

The MikronTec thread ring gauge is a gauge used to test a threaded shaft. The Go gauge must be able to be screwed on the threaded shaft without excessive force. The No-Go gauge (indicated in red) must not fit on the test item. These gauges are used to check whether the actual thread of a test item is within a specified target range.
Conforms to DIN13 - ISO 1502
Right handled
High precision and fast μm production
Right handled
High precision and fast μm production
Specifications
Attribute | Value |
---|---|
Plug/Ring | Ring |
Gauge Type | Ring Thread Gauge |
Go / No Go | No Go |
Thread Size | M16 x 2 |
Pitch Diameter | 2mm |
