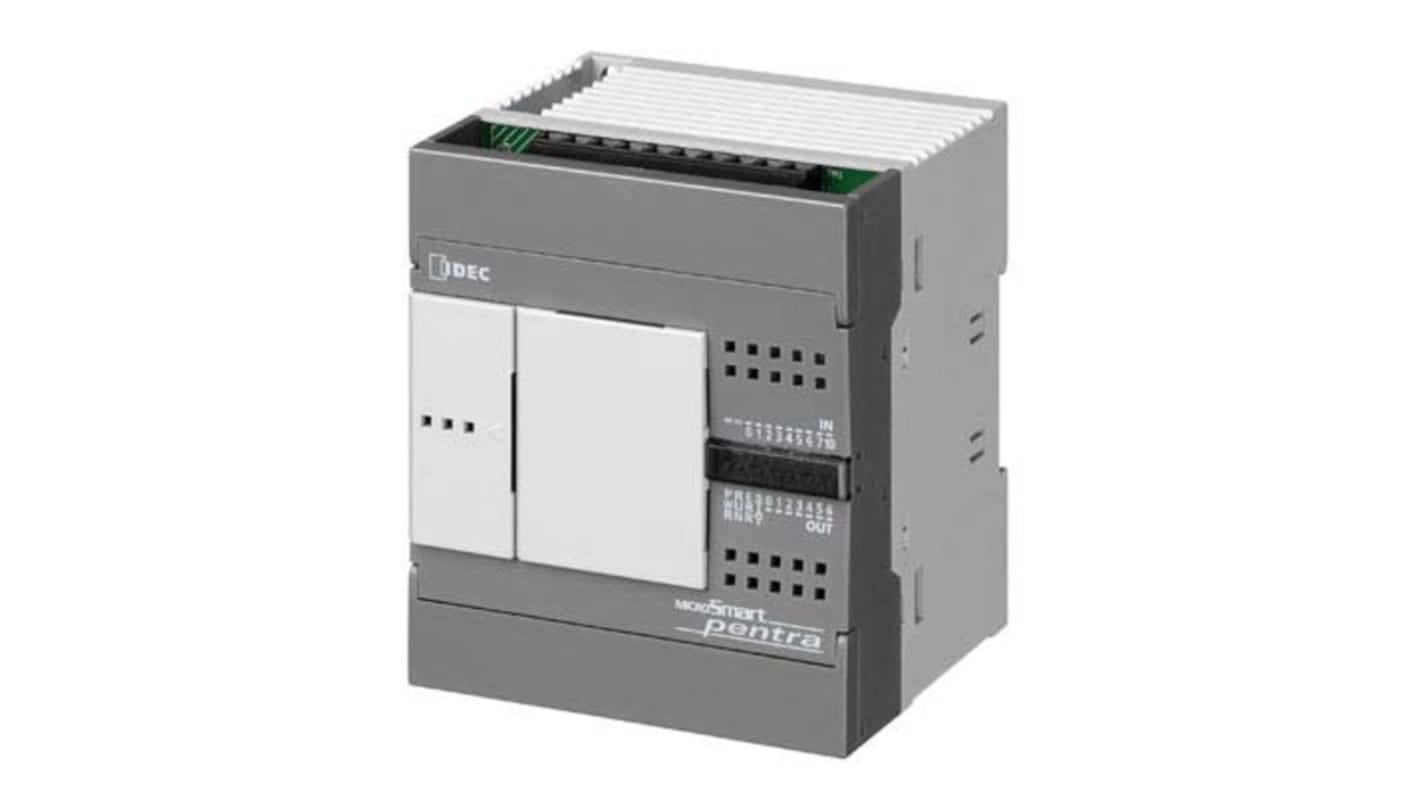

Idec MicroSmart Pentra Series PLC CPU for Use with MicroSmart Pentra Series PLC, Pulse, Relay Output, 9-Input,
- RS Stock No.:
- 833-6206
- Mfr. Part No.:
- FC5A-C16R2
- Brand:
- Idec
Discontinued
- RS Stock No.:
- 833-6206
- Mfr. Part No.:
- FC5A-C16R2
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Manufacturer Series | MicroSmart Pentra | |
| Number of Inputs | 9 | |
| Output Type | Pulse, Relay | |
| For Use With | MicroSmart Pentra Series PLC | |
| Input Type | Analogue, Voltage | |
| Number of Outputs | 7 | |
| Voltage Category | 24 V dc, 100 → 240 V ac | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 80 x 90 x 70 mm | |
| Communication Port Type | Modbus Master & Slave, RS232C | |
| Program Capacity | 27 kB | |
| Depth | 70mm | |
| Number of Communication Ports | 7 | |
| Output Current | 250 mA | |
| Length | 80mm | |
| Mounting Type | DIN Rail | |
| Maximum Operating Temperature | +55°C | |
| Width | 90mm | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Manufacturer Series MicroSmart Pentra | ||
Number of Inputs 9 | ||
Output Type Pulse, Relay | ||
For Use With MicroSmart Pentra Series PLC | ||
Input Type Analogue, Voltage | ||
Number of Outputs 7 | ||
Voltage Category 24 V dc, 100 → 240 V ac | ||
Minimum Operating Temperature 0°C | ||
Dimensions 80 x 90 x 70 mm | ||
Communication Port Type Modbus Master & Slave, RS232C | ||
Program Capacity 27 kB | ||
Depth 70mm | ||
Number of Communication Ports 7 | ||
Output Current 250 mA | ||
Length 80mm | ||
Mounting Type DIN Rail | ||
Maximum Operating Temperature +55°C | ||
Width 90mm | ||
- COO (Country of Origin):
- JP
Idec MicroSmart PLC Series
The new embedded Ethernet MicroSmart Pentra with web server functions boasts powerful features such as an embedded 10/100Mbps RJ45 ethernet port and remote connectivity, communication can be done at a faster speed. These controllers not only support Modbus TCP, but also have the capability to send up to 255 email messages with dynamic data and have 1MB for a user web page. These PLCs can be configured to communicate with WindLDR software, IE/Firefox/Safari web browsers, WindSRV OPC software, HG operator interface, and Modbus TCP all at the same time.
Embedded Ethernet CPU
Modbus TCP, RTU and ASCII
1MB user web page
Email/Text message alerts
USB programming port
Integrated 100 KHz high speed I/O
Up to 7 Communication Ports
Max. 512 I/Os
Up to 14 simultaneous connections can be established
Modbus TCP, RTU and ASCII
1MB user web page
Email/Text message alerts
USB programming port
Integrated 100 KHz high speed I/O
Up to 7 Communication Ports
Max. 512 I/Os
Up to 14 simultaneous connections can be established
Idec MicroSmart Pentra PLC Series
MicroSmart Pentra has always meant speed, flexibility and power. The MicroSmart Pentra PLCs packs even more features into a small footprint to create an even more powerful controller with a response time up to 16 times faster than leading competitors.
