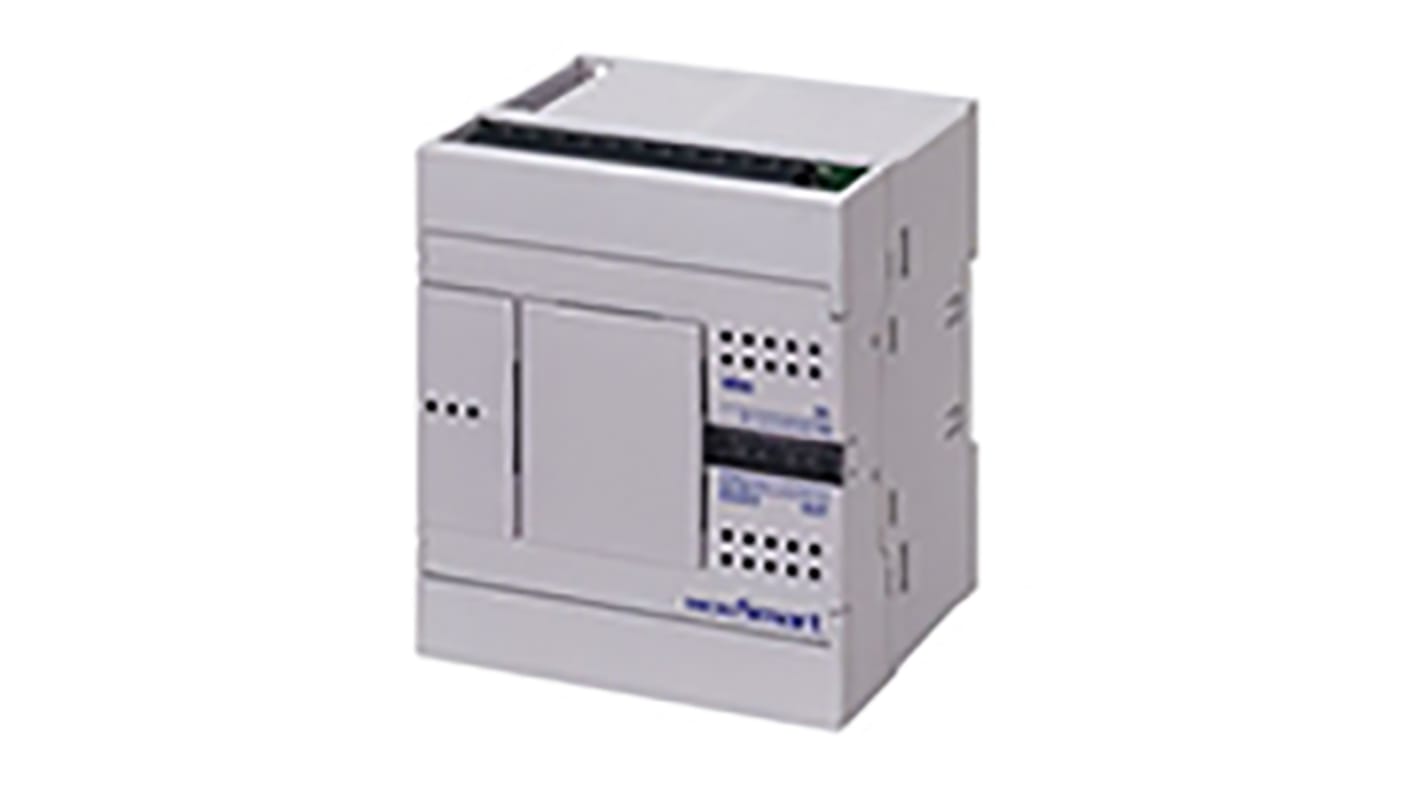

Idec MicroSmart Series PLC CPU for Use with MicroSmart Series PLC, Relay Output, 9-Input, Voltage Input

View this category
Discontinued
RS Stock No.:
833-6155
Mfr. Part No.:
FC4A-C16R2C
Brand:
Idec
Find similar products by selecting one or more attributes.
Select all

Brand

Idec

Manufacturer Series

MicroSmart

Number of Inputs

9

Output Type

Relay

For Use With

MicroSmart Series PLC

Input Type

Voltage

Number of Outputs

7

Voltage Category

24 V dc, 100 → 240 V ac

Dimensions

80 x 94.5 x 70 mm

Battery Backup

Yes

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+55°C

Output Current

2 (Per Point) A, 8 (Per Common) A

Number of Communication Ports

2

Mounting Type

DIN Rail

Width

94.5mm

Length

80mm

Depth

70mm

Communication Port Type

RS232C/RS485

Program Capacity

15 KB

COO (Country of Origin):
JP

Idec FC4A Series


CPUs are available in two types of modules, All-in-One and Slim. Each CPU is compact indesign but has built-in inputs and outputs. The Slim and All-in-One type can expand into the ideal system using the optional expansion modules.


IDEC MicroSmart
