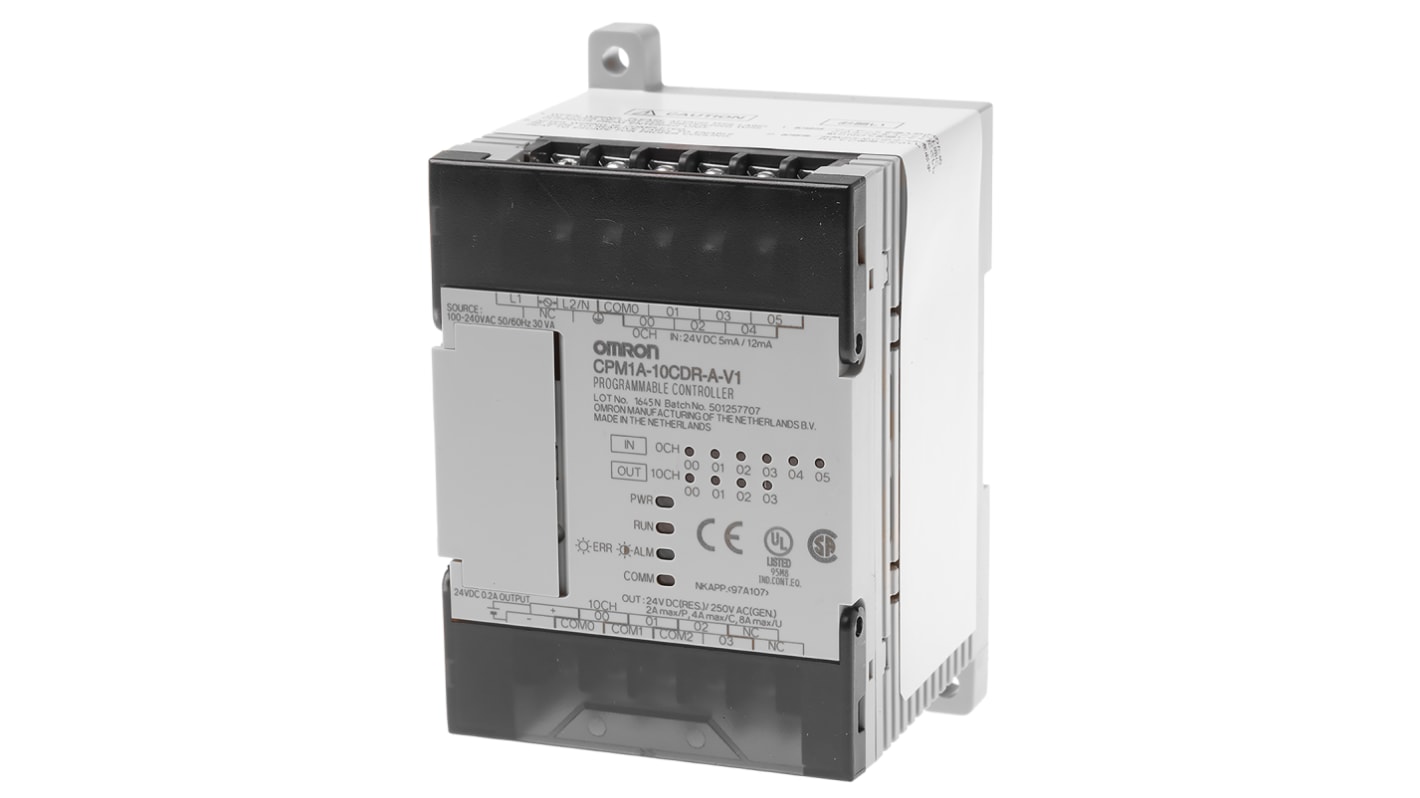

Omron CPM1A Series PLC CPU for Use with CPM1A Series, Relay Output, 6 (DC)-Input, DC Input
- RS Stock No.:
- 432-9406
- Mfr. Part No.:
- CPM1A10CDRAV1
- Brand:
- Omron
Discontinued
- RS Stock No.:
- 432-9406
- Mfr. Part No.:
- CPM1A10CDRAV1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Manufacturer Series | CPM1A | |
| Number of Inputs | 6 (DC) | |
| Output Type | Relay | |
| For Use With | CPM1A Series | |
| Input Type | DC | |
| Voltage Category | 240 V ac | |
| Number of Outputs | 4 (Relay) | |
| Network Type | DeviceNet | |
| Kit Included | Yes | |
| Programming Interface | Computer | |
| Dimensions | 90 x 66 x 50 mm | |
| Memory | 1024 (Data Memory) Words, 2048 (Program Memory) Words | |
| Maximum Operating Temperature | +55°C | |
| Width | 66mm | |
| Communication Port Type | RS232C | |
| Minimum Operating Temperature | 0°C | |
| Programming Language Used | Ladder Logic | |
| Program Capacity | 2048 Words | |
| Depth | 50mm | |
| Number of Communication Ports | 1 | |
| Output Current | 10 (Minimum) mA, 2 (Maximum) A | |
| Length | 90mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Manufacturer Series CPM1A | ||
Number of Inputs 6 (DC) | ||
Output Type Relay | ||
For Use With CPM1A Series | ||
Input Type DC | ||
Voltage Category 240 V ac | ||
Number of Outputs 4 (Relay) | ||
Network Type DeviceNet | ||
Kit Included Yes | ||
Programming Interface Computer | ||
Dimensions 90 x 66 x 50 mm | ||
Memory 1024 (Data Memory) Words, 2048 (Program Memory) Words | ||
Maximum Operating Temperature +55°C | ||
Width 66mm | ||
Communication Port Type RS232C | ||
Minimum Operating Temperature 0°C | ||
Programming Language Used Ladder Logic | ||
Program Capacity 2048 Words | ||
Depth 50mm | ||
Number of Communication Ports 1 | ||
Output Current 10 (Minimum) mA, 2 (Maximum) A | ||
Length 90mm | ||
RoHS Status: Not Applicable
CPM1A-V1 CPU
The CPM1A is a compact micro PLC with removable terminal blocks ideally suited to small machine control and sequencing applications.
Available in modules with 10 to 40 I/O points
30 and 40 I/O modules can be combined with up to 3 digital or 3 analogue expansion units to increase the system I/O to 100 points
Each analogue signal uses 16 points
Full HMI and PC connectivity
DIN rail/panel mount
Non volatile flash ROM memory
Variable Setting Control
1 x 5 kHz High Speed Counter
Individual digital input filters 1ms to 80ms
1024 data registers
128 timers/counters
Pulse output function
Replaces the CPM1 range
Output Rating/Point: 2A @ 250Vac/24Vdc (except stock nos. 432-9490, 432-9507, 432-9513 and 432-9535 which are 0.3A @ 24Vdc)
30 and 40 I/O modules can be combined with up to 3 digital or 3 analogue expansion units to increase the system I/O to 100 points
Each analogue signal uses 16 points
Full HMI and PC connectivity
DIN rail/panel mount
Non volatile flash ROM memory
Variable Setting Control
1 x 5 kHz High Speed Counter
Individual digital input filters 1ms to 80ms
1024 data registers
128 timers/counters
Pulse output function
Replaces the CPM1 range
Output Rating/Point: 2A @ 250Vac/24Vdc (except stock nos. 432-9490, 432-9507, 432-9513 and 432-9535 which are 0.3A @ 24Vdc)
Omron CPM1A / 2A / 2C Base Units
The micro sized CPM1A, 2A and 2C PLC family for all types of machine control where space is at a premium. Programmed using the CX-Programmer, CX-Programmer Junior software, Syswin Software or a handheld programming console.
Programming port and optoisolated inputs
Interrupt processing, encoder connection and high speed counters
Interrupt processing, encoder connection and high speed counters
Pulse I/O, digital and analogue expansion
Password protection
Password protection
