Voltage or Current inputs
Dimensions: H 90 x W 40 x D 87mm

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

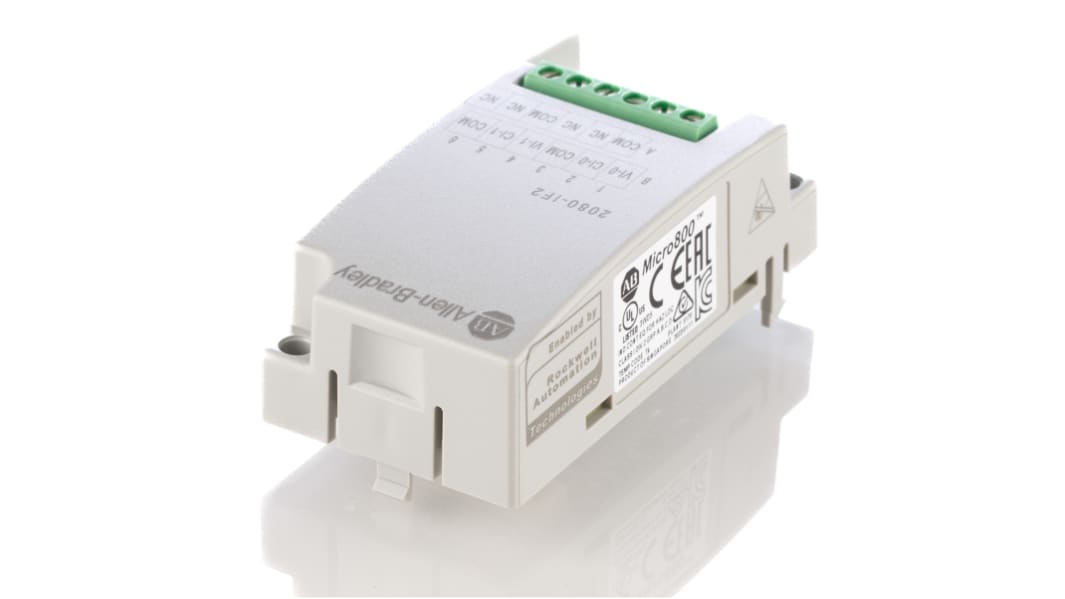

This input-output (I/O) module from Rockwell Automation's Allen Bradley range secures to your programmable logic controller (PLC) to process commands for your machinery. As part of a PLC setup, it assists in sending control instructions to electrical devices so your system can run smoothly. The module communicates between the central processing unit (CPU) and the machine controls, converting commands to signals that are compatible with each particular machine. Units like this are commonly used in industrial automation setups.

• Suitable for use in hazardous locations• Wide working temperature range of -20°C to +65°C for use in industrial environments prone to extreme conditions• Compact size of 90 (height) x 40 (width) x 87mm (diameter) for space efficiency

• NEMA (National Electrical Manufacturer Association)• IEC (International Electrotechnical Commission)• CISPR (Special International Committee on Radio Disturbance)• EN (European Norm)• UL (Underwriters' Laboratories)

Position the plug-in module with the terminal block facing the front of the controller, snap the module into the module bay then tighten the M3 self-tapping screw with a screwdriver.
