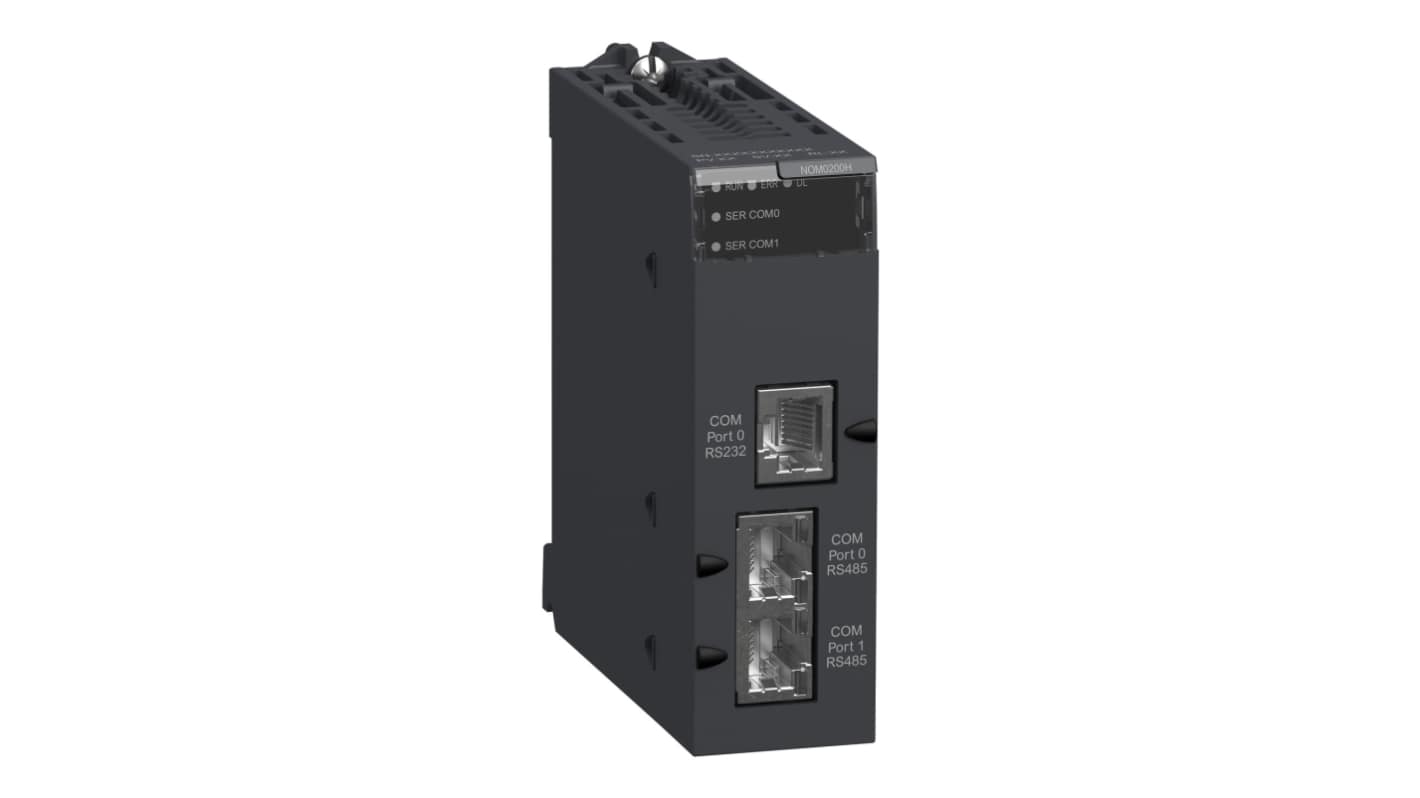

Schneider Electric BMXN Series M2-M2 Local Link Module for Use with Modicon X80 Series, Serial, Serial, 24 V
- RS Stock No.:
- 664-438
- Mfr. Part No.:
- BMXNOM0200H
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£757.63
(exc. VAT)
£909.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £757.63 |
*price indicative
- RS Stock No.:
- 664-438
- Mfr. Part No.:
- BMXNOM0200H
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Accessory Type | Link Module | |
Range | Modicon X80 | |
Series | BMXN | |
Number of Inputs | 2 | |
Input Type | Serial | |
Output Type | Serial | |
Number of Outputs | 2 | |
For Use With | Modicon X80 Series | |
Supply Voltage | 24 V | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Accessory Type Link Module | ||
Range Modicon X80 | ||
Series BMXN | ||
Number of Inputs 2 | ||
Input Type Serial | ||
Output Type Serial | ||
Number of Outputs 2 | ||
For Use With Modicon X80 Series | ||
Supply Voltage 24 V | ||
- COO (Country of Origin):
- FR
The Schneider Electric Serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers. This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It weighs 0.23kg. It is suitable for standard and severe environment applications.
IP20 protection rated
Certified by CE and UL
Meets UL 508 and EN 61131-2 standard
Meet EN 61000-6-4 and EN 61010-2-201 standards
Certified by CE and UL
Meets UL 508 and EN 61131-2 standard
Meet EN 61000-6-4 and EN 61010-2-201 standards
