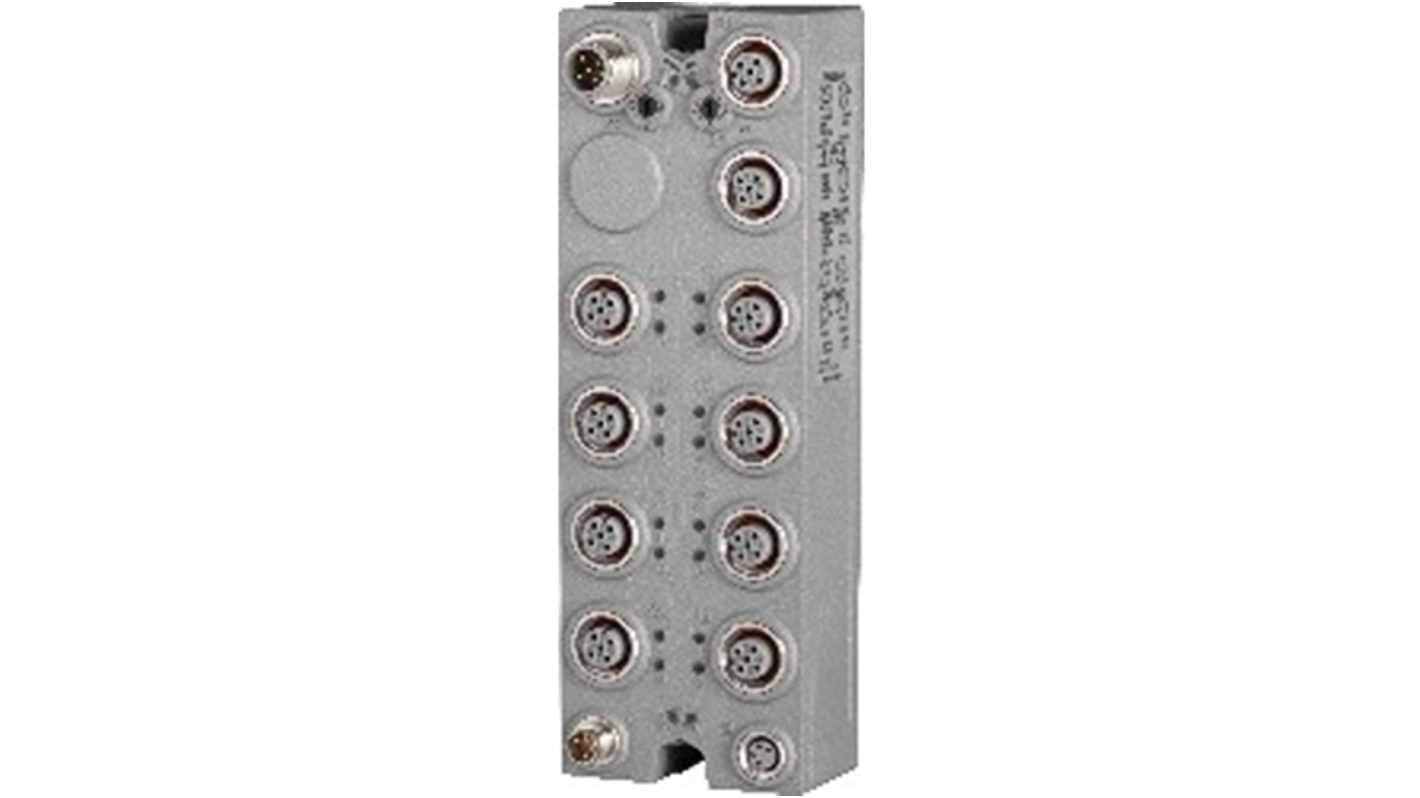

B&R X67 Series I/O module for Use with PLC, Digital, Digital, 24 V dc
- RS Stock No.:
- 594-457
- Mfr. Part No.:
- X67BC4321.L12-10
- Brand:
- B&R
Subtotal (1 unit)*
£533.22
(exc. VAT)
£639.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £533.22 |
*price indicative
- RS Stock No.:
- 594-457
- Mfr. Part No.:
- X67BC4321.L12-10
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | B&R | |
Accessory Type | CANopen Communication Module | |
Range | X67 Systeme | |
Series | X67 | |
Number of Inputs | 16 | |
Input Type | Digital | |
Number of Outputs | 16 | |
Output Type | Digital | |
For Use With | PLC | |
Supply Voltage | 24 V dc | |
Select all | ||
---|---|---|
Brand B&R | ||
Accessory Type CANopen Communication Module | ||
Range X67 Systeme | ||
Series X67 | ||
Number of Inputs 16 | ||
Input Type Digital | ||
Number of Outputs 16 | ||
Output Type Digital | ||
For Use With PLC | ||
Supply Voltage 24 V dc | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Fieldbus CANopen features 16 digital channels configurable as inputs or outputs, auto-configuration of I/O modules, and easy I/O configuration using Automation Studio V4.3 or later. It ensures constant response times even with large amounts of data, supporting up to 32 Rx and 32 Tx PDOs, with a configurable I/O cycle ranging from 0.5 to 4 ms. Controller Area Network (CAN) is widely used in automation technology, employing a line topology and twisted wire pairs for data transfer, while CANopen, as a higher-layer protocol based on CAN, provides standardized and highly flexible configuration options.
Possible to configure the transfer rate or have it detected automatically
Heartbeat consumer and producer, emergency producer
2x SDO server and NMT slave
Simple boot up (autostart)
Heartbeat consumer and producer, emergency producer
2x SDO server and NMT slave
Simple boot up (autostart)
