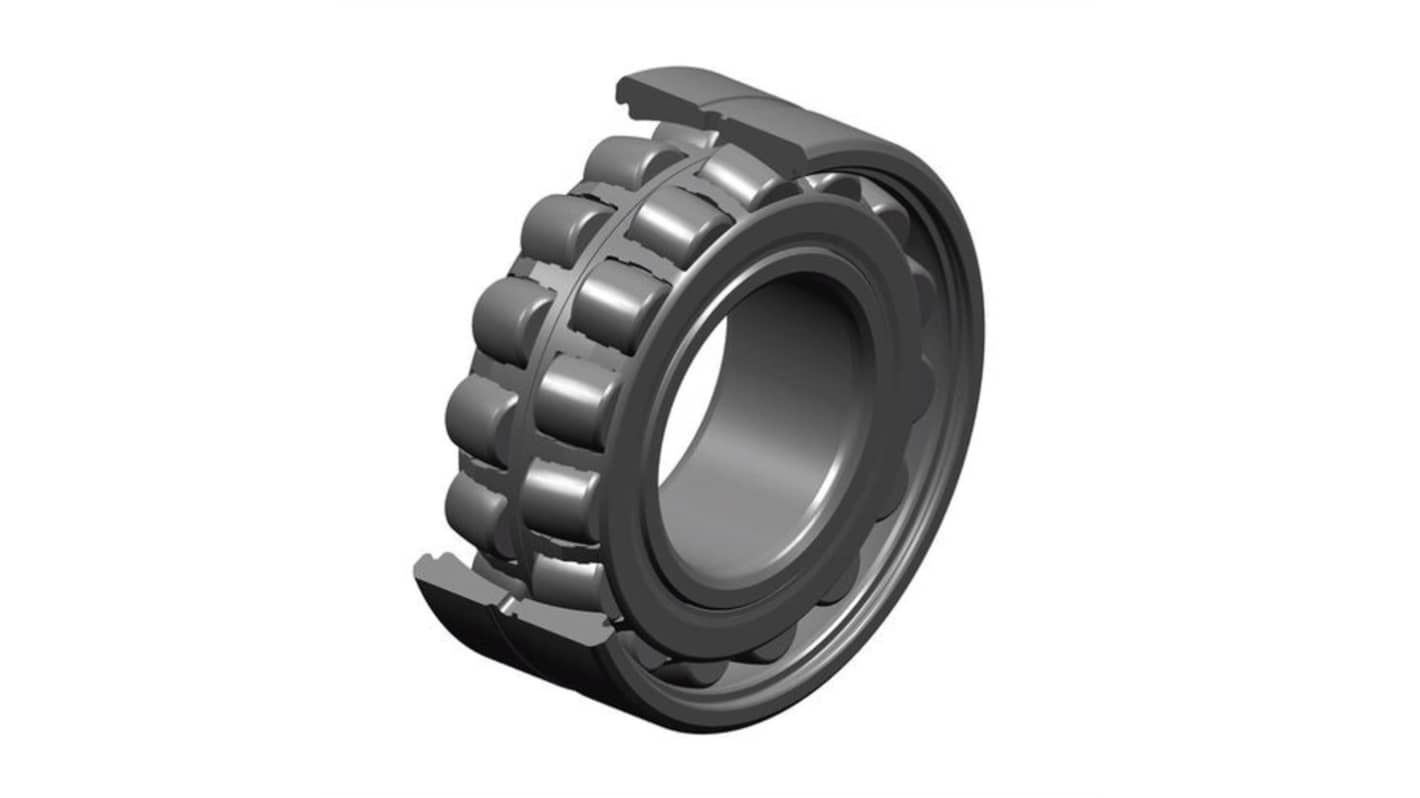

NTN 22217EAKW33C3 Cylindrical 85 mm I.D Spherical Roller Bearing, 150 mm O.D
- RS Stock No.:
- 454-695
- Mfr. Part No.:
- 22217EAKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£186.08
(exc. VAT)
£223.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.08 |
*price indicative
- RS Stock No.:
- 454-695
- Mfr. Part No.:
- 22217EAKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 85 mm | |
| Race Width | 36mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Outside Diameter | 150 mm | |
| Limiting Speed | 5400rpm | |
| Standards/Approvals | RoHS | |
| Series | 22217EAKW33C3 | |
| Static Load Rating | 330kN | |
| Number of Rows | 2 | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 324kN | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 85 mm | ||
Race Width 36mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Outside Diameter 150 mm | ||
Limiting Speed 5400rpm | ||
Standards/Approvals RoHS | ||
Series 22217EAKW33C3 | ||
Static Load Rating 330kN | ||
Number of Rows 2 | ||
Internal Clearance C3 | ||
Dynamic Load Rating 324kN | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions such as impacts or vibrations in crushers, vibrating screens, and heavy handling equipment. With the ULTAGE design, NTN offers, as standard, unsurpassed endurance and longevity.
High load bearing
Steel 100Cr6 rolling element material
