INA GE80-SW-A 80mm Bore Spherical Bearing, 125 mm OD, 1220000 N
- RS Stock No.:
- 310-296
- Mfr. Part No.:
- GE80-SW-A
- Brand:
- INA
Subtotal (1 unit)*
£367.89
(exc. VAT)
£441.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £367.89 |
*price indicative
- RS Stock No.:
- 310-296
- Mfr. Part No.:
- GE80-SW-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Spherical Bearing | |
| Bore Diameter | 80mm | |
| Outside Diameter | 125mm | |
| End Type | Unsealed | |
| Material | Elgoglide, Chrome Steel | |
| Static Load Rating - Radial | 1220000N | |
| Series | GE80-SW | |
| Standards/Approvals | DIN ISO 12240-2 | |
| Width | 29mm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Spherical Bearing | ||
Bore Diameter 80mm | ||
Outside Diameter 125mm | ||
End Type Unsealed | ||
Material Elgoglide, Chrome Steel | ||
Static Load Rating - Radial 1220000N | ||
Series GE80-SW | ||
Standards/Approvals DIN ISO 12240-2 | ||
Width 29mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

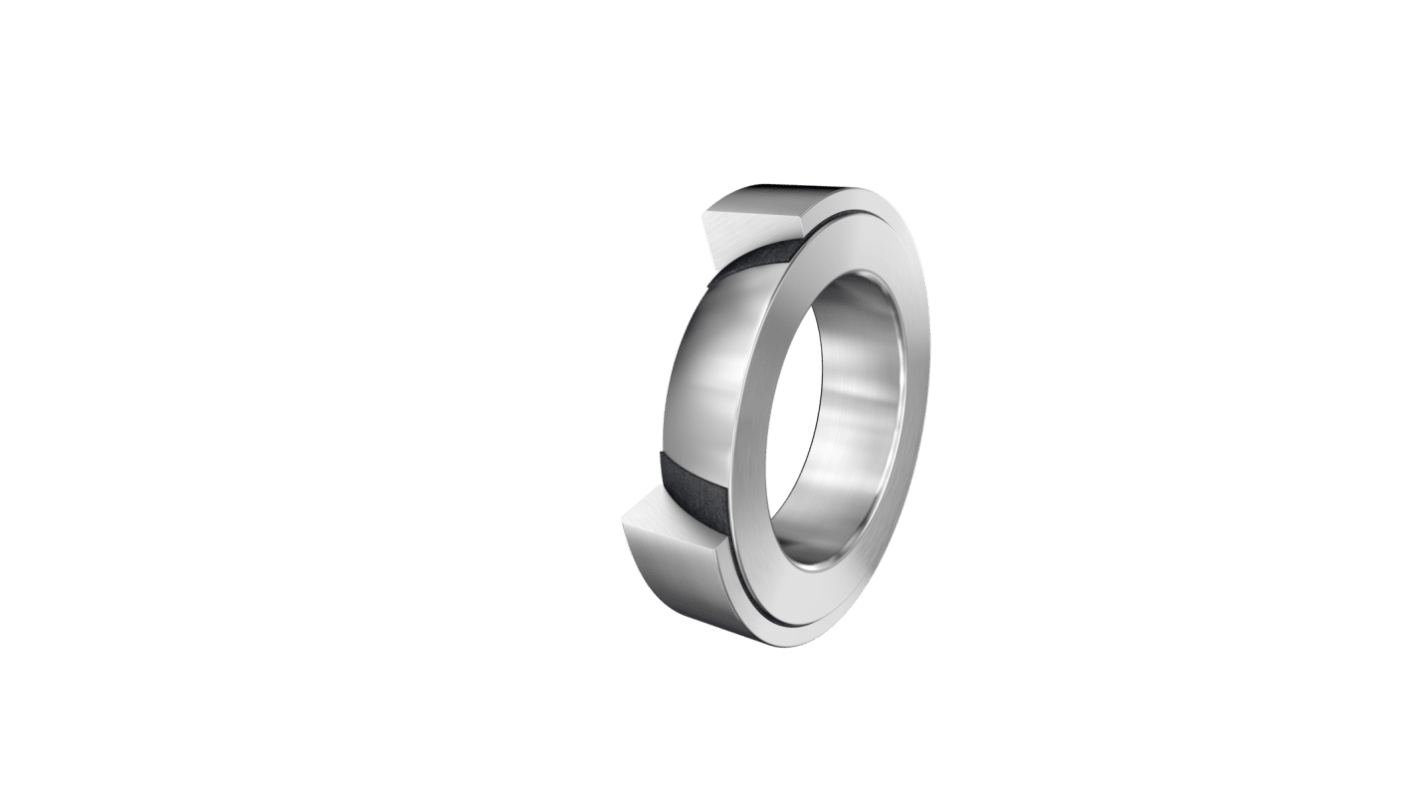

The INA Spherical plain bearing is an angular contact, maintenance free bearing designed to meet DIN ISO 12240-2 standards. It features an inner ring with a curved surface coated with hard chromium, providing superior wear resistance and durability. The open design allows for easy installation and efficient operation, making it ideal for applications that require low maintenance and reliable performance in dynamic environments.
Radial load
Axial load in one direction
Lifetime lubrication and freedom from maintenance
Not sealed
Static angular error and misalignment
Dynamic angular error and misalignment
