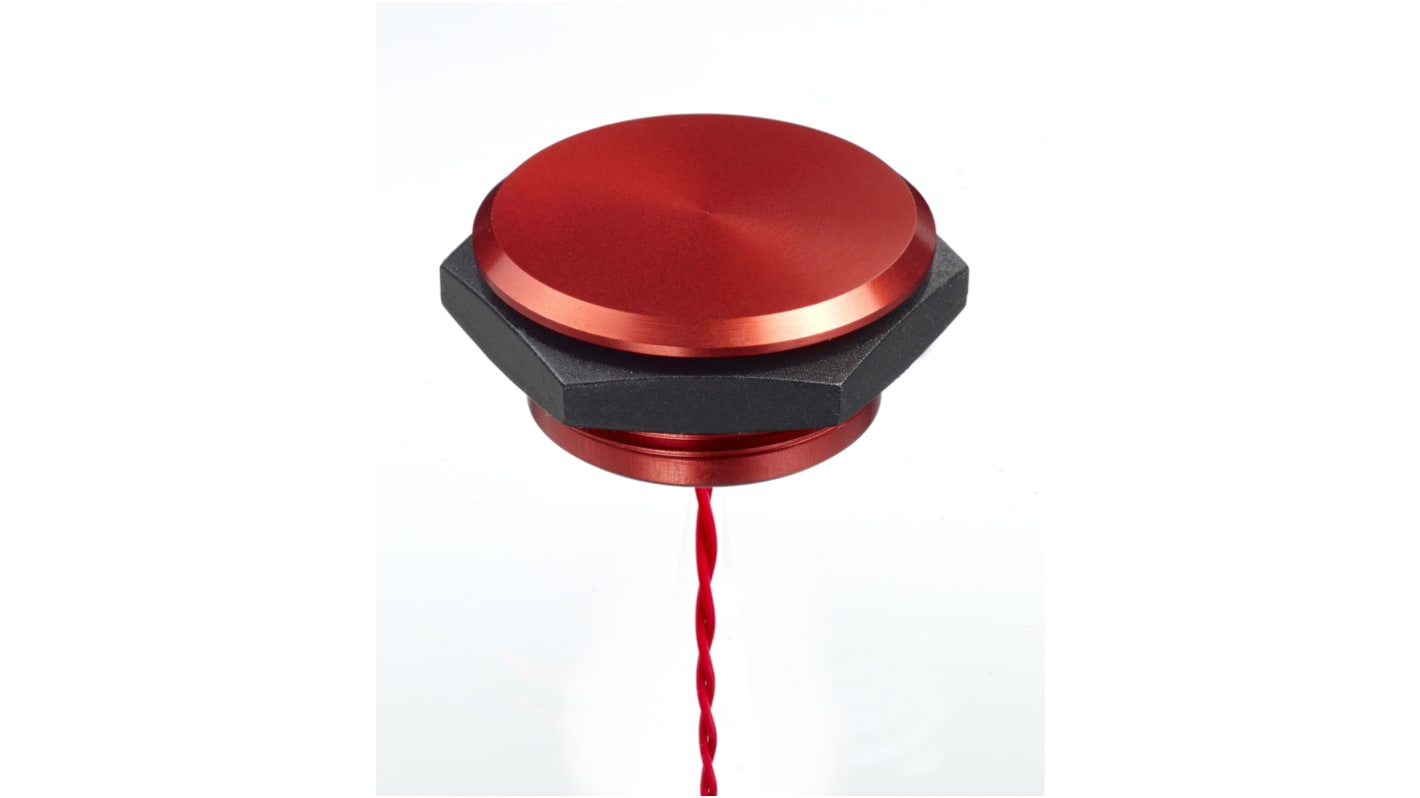

APEM Piezo Switch, Momentary, 1NO, IP68, IP69K, Flying Lead, 1 A, -40 → +75°C Red
- RS Stock No.:
- 165-3181
- Mfr. Part No.:
- PBAM1AF6002
- Brand:
- APEM
Subtotal (1 unit)*
£38.64
(exc. VAT)
£46.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £38.64 |
*price indicative
- RS Stock No.:
- 165-3181
- Mfr. Part No.:
- PBAM1AF6002
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Terminal Type | Flying Lead | |
| Contact Configuration | 1NO | |
| Panel Cut Out Diameter | 30mm | |
| Contact Current Rating | 1 A | |
| IP Rating | IP68, IP69K | |
| Actuator Colour | Red | |
| Case Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +75°C | |
| Voltage Rating | 24V ac/dc | |
| Operating Temperature Range | -40 → +75°C | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Switch Operation Momentary | ||
Illuminated No | ||
Terminal Type Flying Lead | ||
Contact Configuration 1NO | ||
Panel Cut Out Diameter 30mm | ||
Contact Current Rating 1 A | ||
IP Rating IP68, IP69K | ||
Actuator Colour Red | ||
Case Colour Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +75°C | ||
Voltage Rating 24V ac/dc | ||
Operating Temperature Range -40 → +75°C | ||
APEM expands its range of piezo switches with a new version featuring a dia. 30 mm bushing. With its large actuation surface, this new series is in line with the AV 30 mm and FP 30 mm series. Exclusively available on PBA 30 mm models, the prominent ring option increases the visibility of this piezo switch. It is available in single color, bi-color and tri-color versions.
Bushing diameter 30 mm (1.181)
Easy to clean metal surface
Very long life expectancy
Ring illumination: flush or prominent ring
Easy to clean metal surface
Very long life expectancy
Ring illumination: flush or prominent ring
