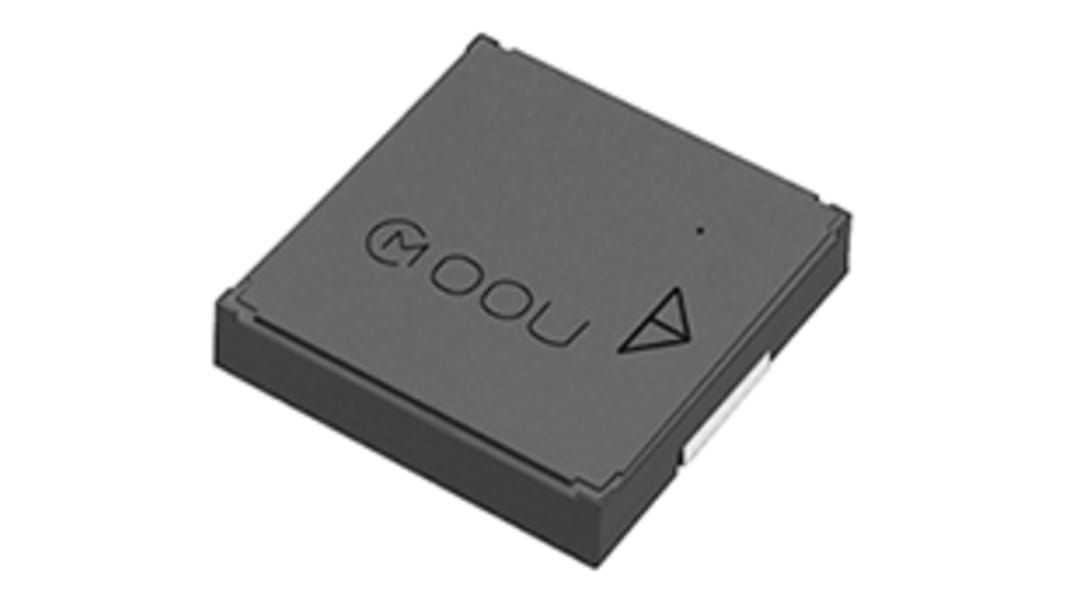

Murata 70 dB Surface Buzzer External Piezo Buzzer Component 3 mm 12 mm 12mm 25V Max
- RS Stock No.:
- 839-1051
- Mfr. Part No.:
- PKLCS1212E20A0-R1
- Brand:
- Murata
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£0.46
(exc. VAT)
£0.55
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 4 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £0.46 |
| 10 - 24 | £0.44 |
| 25 - 49 | £0.42 |
| 50 - 99 | £0.40 |
| 100 + | £0.37 |
*price indicative
- RS Stock No.:
- 839-1051
- Mfr. Part No.:
- PKLCS1212E20A0-R1
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Mount Type | Surface | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 25V | |
| Sound Level | 70dB | |
| Drive Type | External | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 85°C | |
| Height | 3mm | |
| Length | 12mm | |
| Width | 12mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 2kHz | |
| Minimum Frequency | 2kHz | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Mount Type Surface | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 25V | ||
Sound Level 70dB | ||
Drive Type External | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 85°C | ||
Height 3mm | ||
Length 12mm | ||
Width 12mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 2kHz | ||
Minimum Frequency 2kHz | ||
- COO (Country of Origin):
- TH
Square SMT Piezo transducers
Professional range of Piezoelectric surface mount sounders. This range of sounders are small, thin and lightweight. Typical applications would include mobile printers, payment terminals and digital still cameras.
Square cased SMT Piezo transducers
High sound output
Requires external drive circuits to operate
Low power consumption
