RS PRO 80 dB Through Hole Continuous Internal 9 mm Buzzer 3 V dc Min 20V dc Max
- RS Stock No.:
- 535-8225
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.01
(exc. VAT)
£4.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
- Plus 16 unit(s) shipping from 04 June 2026
- Plus 300 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.01 |
| 10 - 24 | £3.84 |
| 25 - 49 | £3.67 |
| 50 - 99 | £3.46 |
| 100 + | £3.18 |
*price indicative
- RS Stock No.:
- 535-8225
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Buzzer | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 20V dc | |
| Sound Level | 80dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 24mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 9mm | |
| Standards/Approvals | No | |
| Termination Style | Wire | |
| Maximum Frequency | 3.9kHz | |
| Minimum Frequency | 2900Hz | |
| Supply Current | 15mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Buzzer | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 20V dc | ||
Sound Level 80dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 24mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Height 9mm | ||
Standards/Approvals No | ||
Termination Style Wire | ||
Maximum Frequency 3.9kHz | ||
Minimum Frequency 2900Hz | ||
Supply Current 15mA | ||
- COO (Country of Origin):
- TW

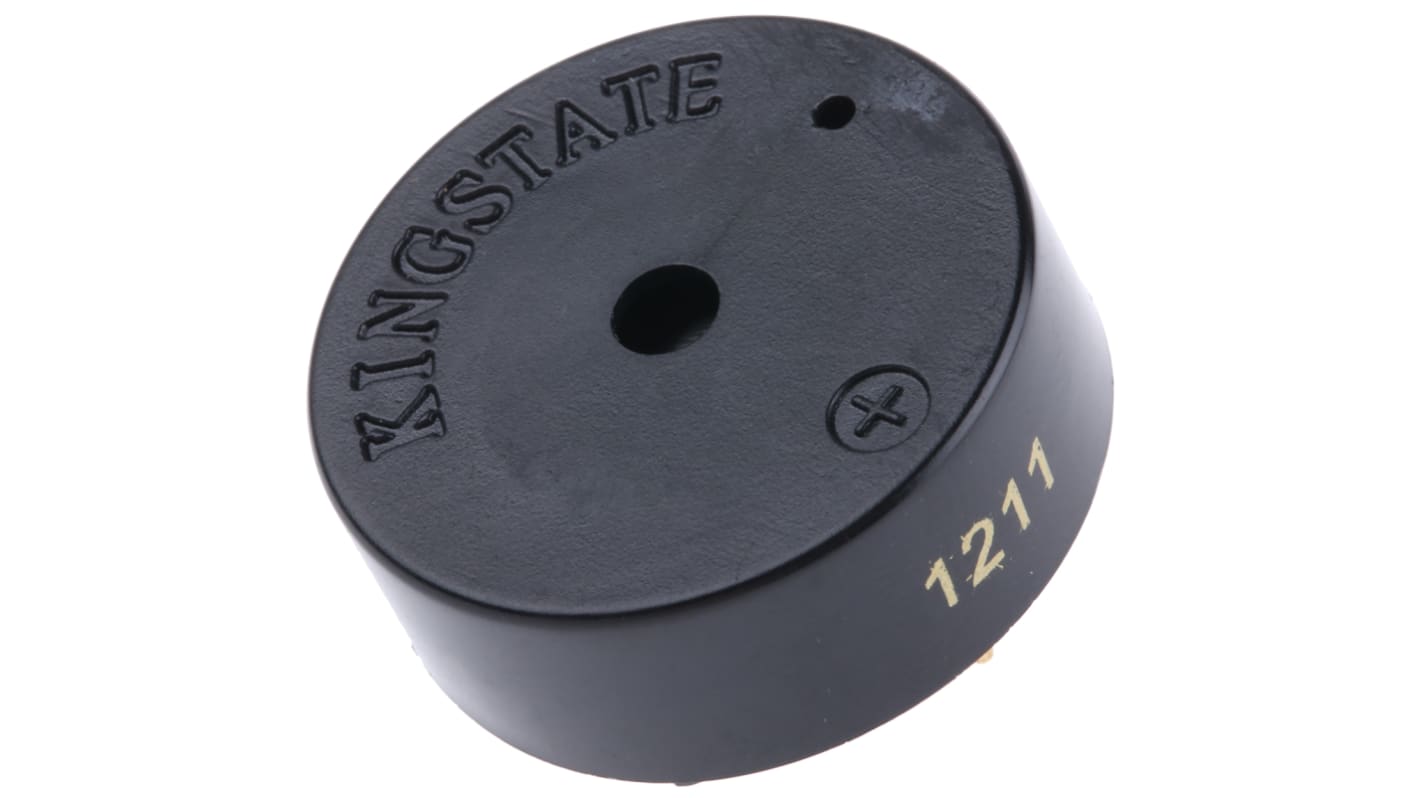

Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
