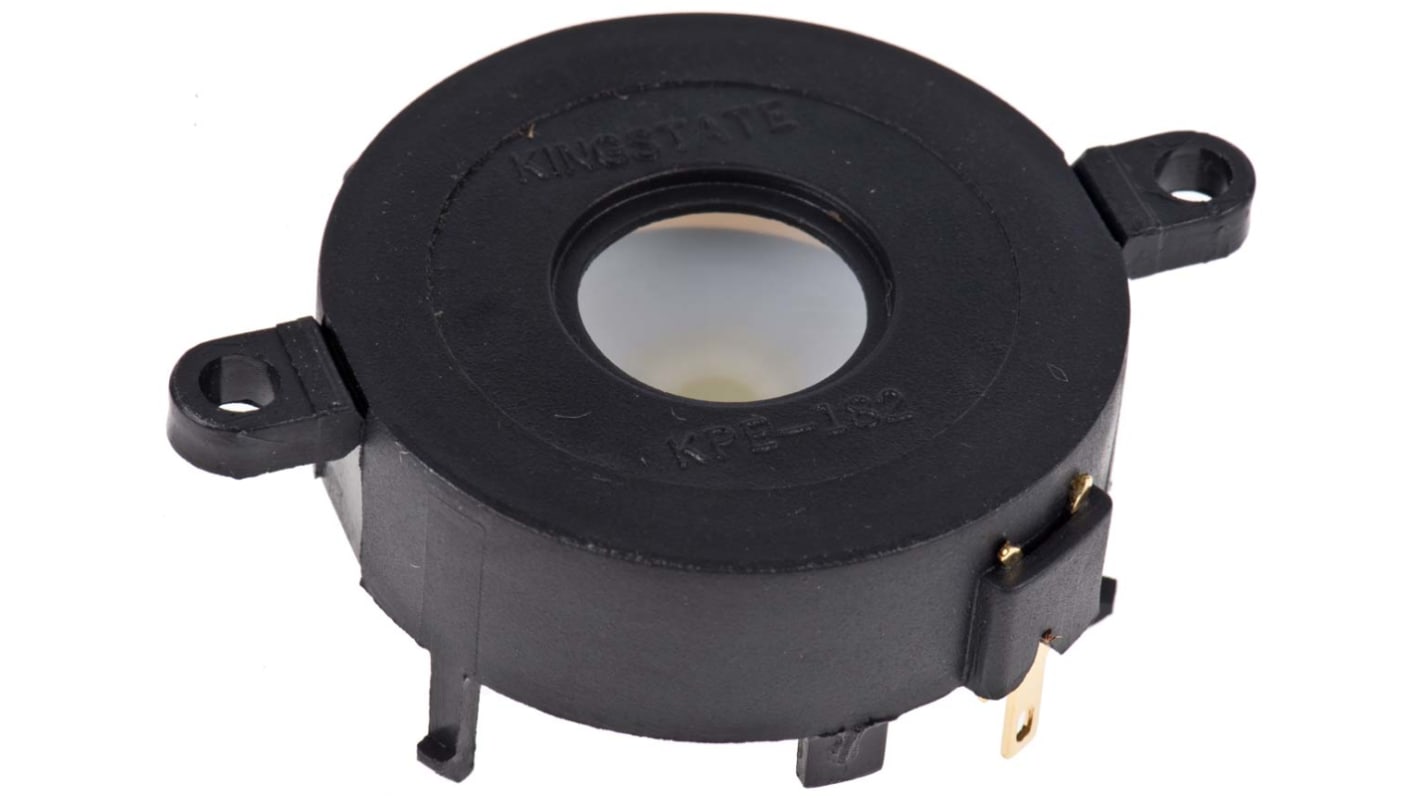

RS PRO 100dB Screw Mount Continuous, Intermittent External Piezo Buzzer, 44.8 x 23mm, 100V ac Max
- RS Stock No.:
- 535-8203P
- Brand:
- RS PRO
Bulk discount available
Subtotal 10 units (supplied in a box)*
£61.10
(exc. VAT)
£73.30
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 10 - 24 | £6.11 |
| 25 - 49 | £5.78 |
| 50 - 99 | £5.45 |
| 100 + | £5.03 |
*price indicative
- RS Stock No.:
- 535-8203P
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Screw Mount | |
| Maximum Supply Voltage | 100V ac | |
| Sound Level | 100dB | |
| Drive Type | External | |
| Tone Type | Continuous, Intermittent | |
| Diameter | 44.8mm | |
| Length | 64mm | |
| Depth | 13.6mm | |
| Height | 23mm | |
| Dimensions | 44.8 x 23mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Maximum Frequency | 4kHz | |
| Minimum Frequency | 2200Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Screw Mount | ||
Maximum Supply Voltage 100V ac | ||
Sound Level 100dB | ||
Drive Type External | ||
Tone Type Continuous, Intermittent | ||
Diameter 44.8mm | ||
Length 64mm | ||
Depth 13.6mm | ||
Height 23mm | ||
Dimensions 44.8 x 23mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Maximum Frequency 4kHz | ||
Minimum Frequency 2200Hz | ||
- COO (Country of Origin):
- TW
Flanged transducer PCB pins
Circular cased Flanged mounting transducer
PCB pin terminals
High sound output
External circuitry required for operation
PCB pin terminals
High sound output
External circuitry required for operation
