Same Sky Lead Wire Buzzer External Magnetic Buzzer 0.51 mm 20 V dc Min 27 mm 9.5mm 30V dc Max
- RS Stock No.:
- 259-6140P
- Mfr. Part No.:
- CEB-27D44
- Brand:
- Same Sky
Subtotal 5 units (supplied in a bag)*
£5.27
(exc. VAT)
£6.325
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 5 + | £1.054 |
*price indicative
- RS Stock No.:
- 259-6140P
- Mfr. Part No.:
- CEB-27D44
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Lead Wire | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 20V dc | |
| Maximum Supply Voltage | 30V dc | |
| Drive Type | External | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 70°C | |
| Width | 9.5mm | |
| Height | 0.51mm | |
| Length | 27mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 5100Hz | |
| Minimum Frequency | 4100Hz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Lead Wire | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 20V dc | ||
Maximum Supply Voltage 30V dc | ||
Drive Type External | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 70°C | ||
Width 9.5mm | ||
Height 0.51mm | ||
Length 27mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 5100Hz | ||
Minimum Frequency 4100Hz | ||

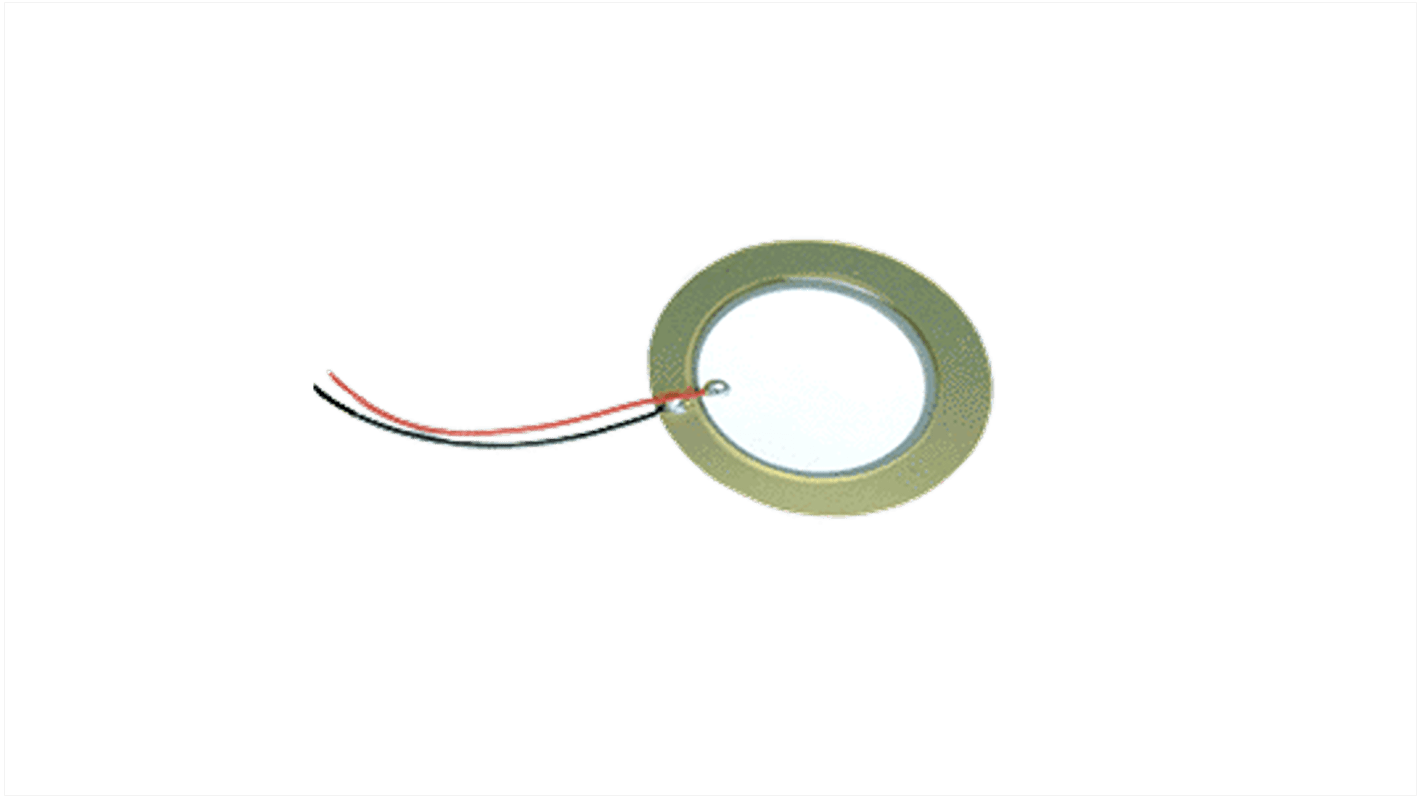

The CUI devices piezo buzzers with a mounting type of wire leads and having a dc resistance of 20 MΩ. It consist of a voltage rating of 20 V and an external drive type.
Storage temperature of -30°C - 80°C
Made up of brass material
