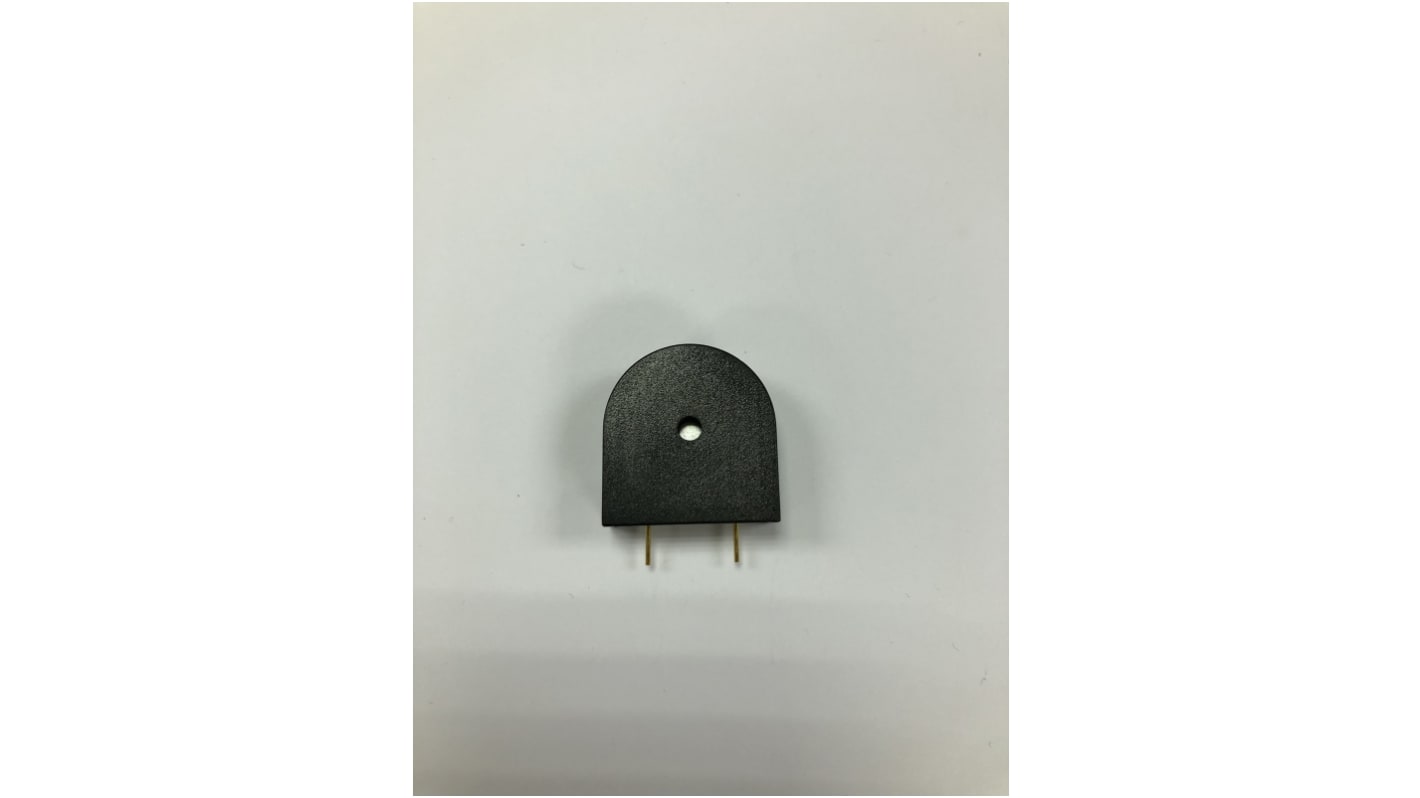

RS PRO 93dB Through Hole Square Wave Piezo Buzzer, 25 x 24 x 10mm, 30V Max
- RS Stock No.:
- 181-2648
- Brand:
- RS PRO
85 In stock - FREE next working day delivery available
Price Each (In a Box of 2800)
£0.752
(exc. VAT)
£0.902
(inc. VAT)
Units | Per unit | Per Box* |
|---|---|---|
| 2800 + | £0.752 | £2,105.60 |
*price indicative
- RS Stock No.:
- 181-2648
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +115°C and Supply Current of 10mA. The material used for buzzer is PC 10%GLASS (BLACK) and it has pin type terminal.
Sound Level 93dB
Length 25mm
Height 10mm
Length 25mm
Height 10mm
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Maximum Supply Voltage | 30V |
| Sound Level | 93dB |
| Tone Type | Square Wave |
| Length | 25mm |
| Depth | 24mm |
| Height | 10mm |
| Dimensions | 25 x 24 x 10mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +115°C |
| Maximum Frequency | 3.3kHz |
| Supply Current | 10mA |
| Capacitance | 17nF |
