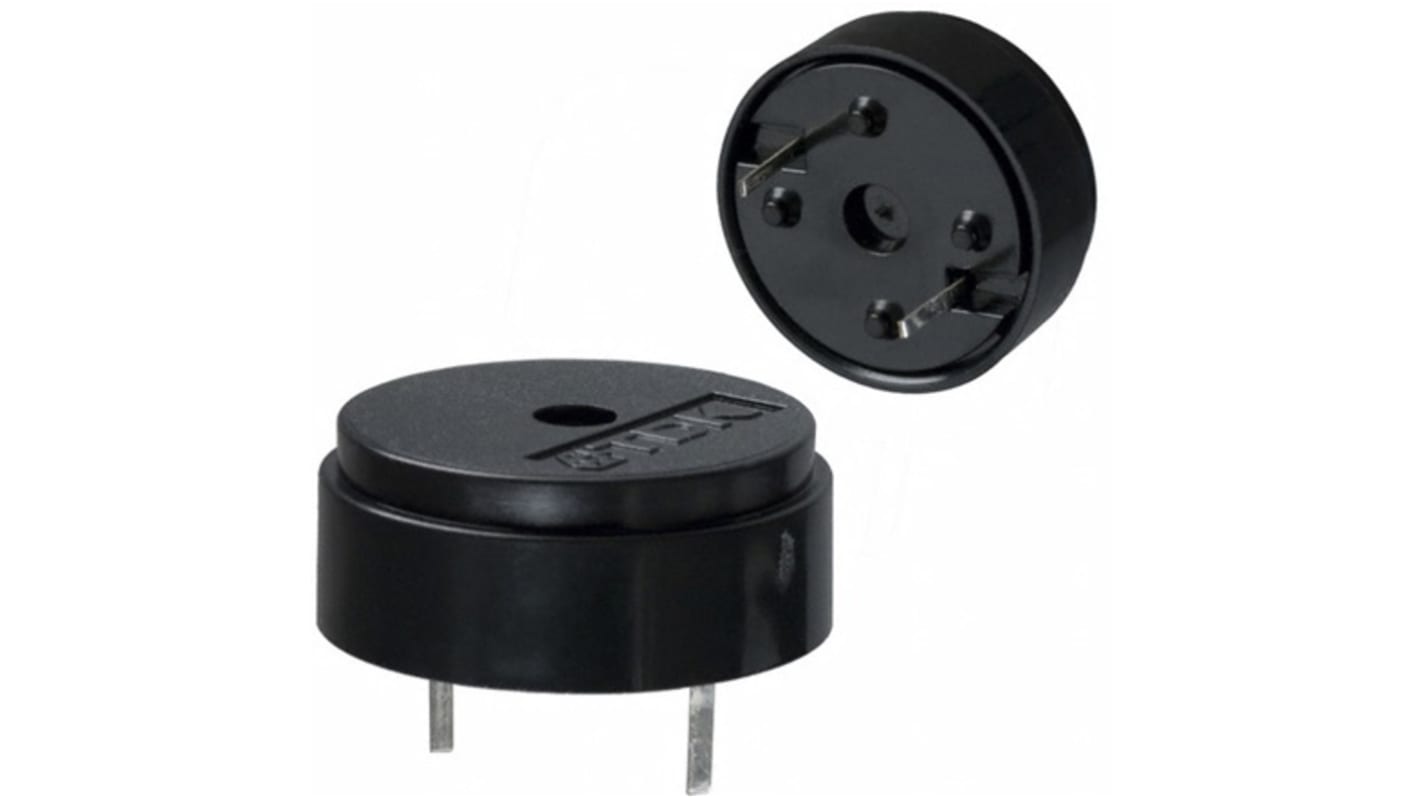

TDK 60dB PCB Mount High External Piezo Buzzer, 17 (Dia.) x 4.6mm, 3V ac Min, 30V ac Max
- RS Stock No.:
- 134-7307
- Mfr. Part No.:
- PS1740P02CE
- Brand:
- TDK
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 134-7307
- Mfr. Part No.:
- PS1740P02CE
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Mounting Type | PCB Mount | |
| Minimum Supply Voltage | 3V ac | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 60dB | |
| Drive Type | External | |
| Tone Type | High | |
| Diameter | 17mm | |
| Height | 4.6mm | |
| Dimensions | 17 (Dia.) x 4.6mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 4kHz | |
| Minimum Frequency | 4000Hz | |
Select all | ||
|---|---|---|
Brand TDK | ||
Mounting Type PCB Mount | ||
Minimum Supply Voltage 3V ac | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 60dB | ||
Drive Type External | ||
Tone Type High | ||
Diameter 17mm | ||
Height 4.6mm | ||
Dimensions 17 (Dia.) x 4.6mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 4kHz | ||
Minimum Frequency 4000Hz | ||
TDK PS Series Electromagnetic Buzzers
TDK PS series pin terminal electromagnetic buzzers are designed for easy incorporation into various circuits. The buzzers are high performing and employ unimorph piezoelectric elements. They feature extremely low power consumption. Because the buzzers are designed for external excitation the same part can serve as a tone oscillator and also a buzzer.
Applications
Washing Machines
Computer terminals
Electric Ranges
Devices requiring speech synthesis output
Computer terminals
Electric Ranges
Devices requiring speech synthesis output
