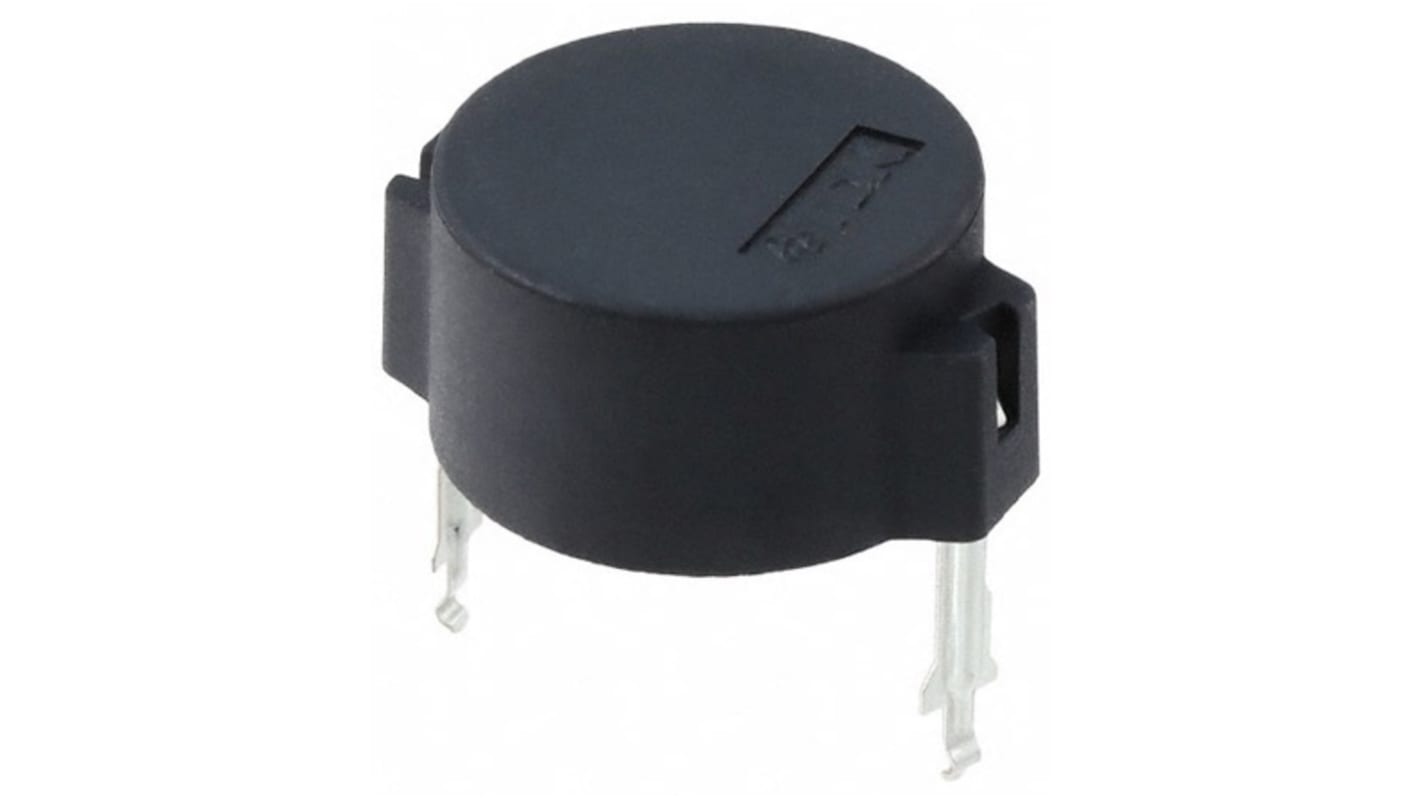

TDK 80dB PCB Mount Low External Piezo Buzzer, 23 (Dia.) x 10.5mm, 10V ac Min, 20V ac Max
- RS Stock No.:
- 134-7282
- Mfr. Part No.:
- PS1920P02
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-7282
- Mfr. Part No.:
- PS1920P02
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Mounting Type | PCB Mount | |
| Minimum Supply Voltage | 10V ac | |
| Maximum Supply Voltage | 20V ac | |
| Sound Level | 80dB | |
| Drive Type | External | |
| Tone Type | Low | |
| Diameter | 23mm | |
| Height | 10.5mm | |
| Dimensions | 23 (Dia.) x 10.5mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 2kHz | |
| Minimum Frequency | 2000Hz | |
Select all | ||
|---|---|---|
Brand TDK | ||
Mounting Type PCB Mount | ||
Minimum Supply Voltage 10V ac | ||
Maximum Supply Voltage 20V ac | ||
Sound Level 80dB | ||
Drive Type External | ||
Tone Type Low | ||
Diameter 23mm | ||
Height 10.5mm | ||
Dimensions 23 (Dia.) x 10.5mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 2kHz | ||
Minimum Frequency 2000Hz | ||
TDK PS Series Electromagnetic Buzzers
TDK PS series pin terminal electromagnetic buzzers are designed for easy incorporation into various circuits. The buzzers are high performing and employ unimorph piezoelectric elements. They feature extremely low power consumption. Because the buzzers are designed for external excitation the same part can serve as a tone oscillator and also a buzzer.
Applications
Washing Machines
Computer terminals
Electric Ranges
Devices requiring speech synthesis output
Computer terminals
Electric Ranges
Devices requiring speech synthesis output
