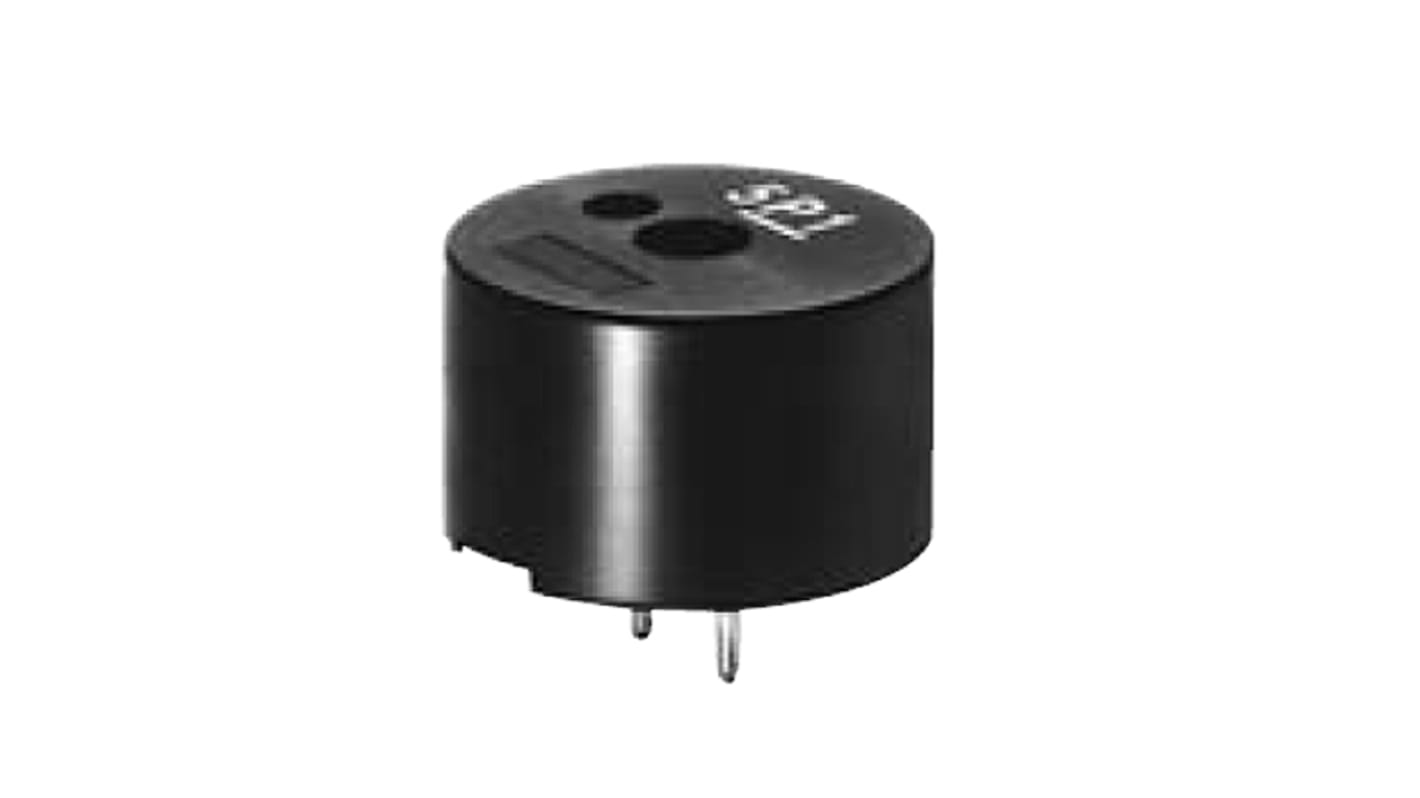

TDK 85dB Through Hole Continuous Internal Magnetic Buzzer Component, 16 (Dia.) x 10mm, 8V dc Min, 16V dc Max
- RS Stock No.:
- 130-9774
- Mfr. Part No.:
- SDC1610MT-01
- Brand:
- TDK
Discontinued
- RS Stock No.:
- 130-9774
- Mfr. Part No.:
- SDC1610MT-01
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Mounting Type | Through Hole | |
| Minimum Supply Voltage | 8V dc | |
| Maximum Supply Voltage | 16V dc | |
| Sound Level | 85dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 16mm | |
| Height | 10mm | |
| Dimensions | 16 (Dia.) x 10mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 2.4kHz | |
| Supply Current | 25mA | |
Select all | ||
|---|---|---|
Brand TDK | ||
Mounting Type Through Hole | ||
Minimum Supply Voltage 8V dc | ||
Maximum Supply Voltage 16V dc | ||
Sound Level 85dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 16mm | ||
Height 10mm | ||
Dimensions 16 (Dia.) x 10mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 2.4kHz | ||
Supply Current 25mA | ||
- COO (Country of Origin):
- JP
TDK SDC Series Electromagnetic Buzzers
TDK SDC series pin terminal electromagnetic buzzers. These buzzers are compact and high reliability. Operating temperature -10 to +70°C.
Applications
Home appliances
Personal computers
Office equipment
Personal computers
Office equipment
