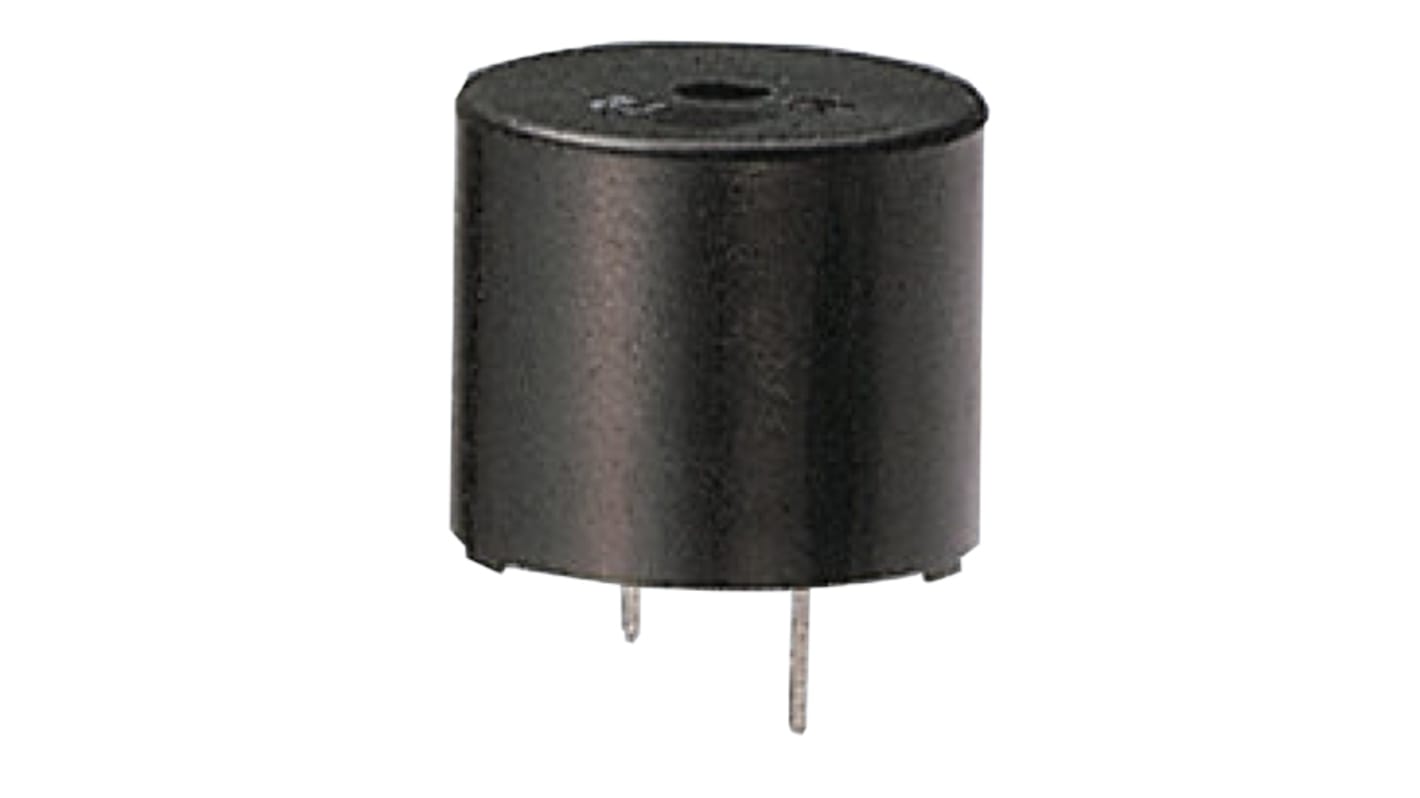

TDK 85dB Through Hole Internal Magnetic Buzzer Component, 16 (Dia.) x 14mm, 6V dc Min, 12V dc Max
- RS Stock No.:
- 130-9771
- Mfr. Part No.:
- SD1614TT-A1
- Brand:
- TDK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 130-9771
- Mfr. Part No.:
- SD1614TT-A1
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Mounting Type | Through Hole | |
| Minimum Supply Voltage | 6V dc | |
| Maximum Supply Voltage | 12V dc | |
| Sound Level | 85dB | |
| Drive Type | Internal | |
| Diameter | 16mm | |
| Height | 14mm | |
| Dimensions | 16 (Dia.) x 14mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 2.048kHz | |
| Supply Current | 100mA | |
Select all | ||
|---|---|---|
Brand TDK | ||
Mounting Type Through Hole | ||
Minimum Supply Voltage 6V dc | ||
Maximum Supply Voltage 12V dc | ||
Sound Level 85dB | ||
Drive Type Internal | ||
Diameter 16mm | ||
Height 14mm | ||
Dimensions 16 (Dia.) x 14mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 2.048kHz | ||
Supply Current 100mA | ||
- COO (Country of Origin):
- JP
TDK SD Series Electromagnetic Buzzers
TDK SD series pin terminal electromagnetic buzzers are highly reliable buzzers for automobile equipment. The buzzers are compact, with a pin terminal which has a 2048Hz output. The pin terminal allows direct mounting onto printed circuit boards.
Applications
Keyboards
Clocks
Travel watches
Alarms of automobile equipment
Clocks
Travel watches
Alarms of automobile equipment
