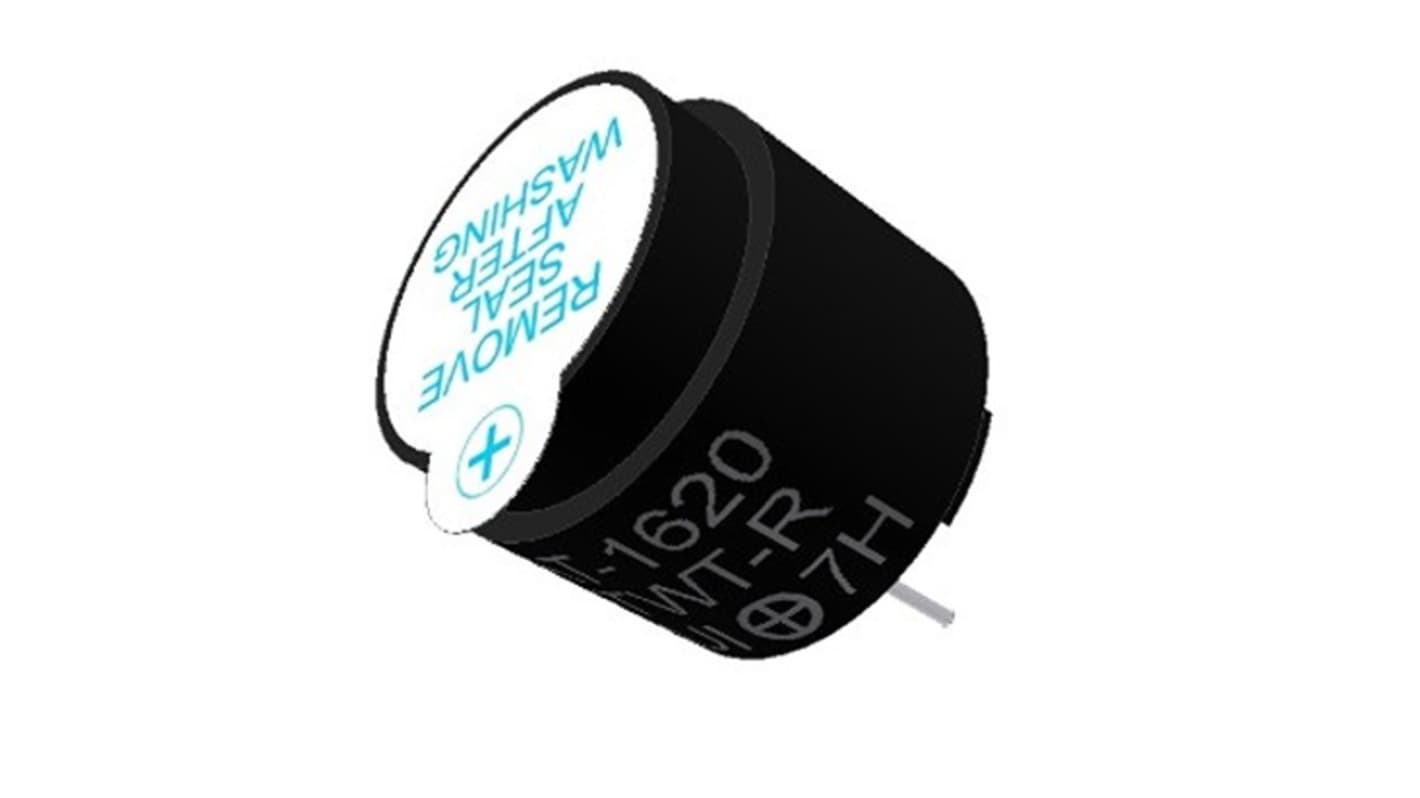

PUI Audio 90 dBA Through Hole External Piezo Buzzer Transducer 14 mm 4 V Min 16 mm 16mm 8V Max
- RS Stock No.:
- 276-852
- Mfr. Part No.:
- AT-1620-TWT-R
- Brand:
- PUI Audio
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.22
(exc. VAT)
£1.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.22 |
| 10 - 99 | £1.10 |
| 100 - 499 | £1.01 |
| 500 - 999 | £0.94 |
| 1000 + | £0.77 |
*price indicative
- RS Stock No.:
- 276-852
- Mfr. Part No.:
- AT-1620-TWT-R
- Brand:
- PUI Audio
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Product Type | Piezo Buzzer Transducer | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 8V | |
| Sound Level | 90dBA | |
| Drive Type | External | |
| Maximum Operating Temperature | 70°C | |
| Height | 14mm | |
| Standards/Approvals | REACH, RoHS | |
| Width | 16mm | |
| Length | 16mm | |
| Maximum Frequency | 2548Hz | |
| Minimum Frequency | 1548Hz | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Product Type Piezo Buzzer Transducer | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 8V | ||
Sound Level 90dBA | ||
Drive Type External | ||
Maximum Operating Temperature 70°C | ||
Height 14mm | ||
Standards/Approvals REACH, RoHS | ||
Width 16mm | ||
Length 16mm | ||
Maximum Frequency 2548Hz | ||
Minimum Frequency 1548Hz | ||
- COO (Country of Origin):
- CN
PUI Audio Piezo Buzzer Transducer, 90dBA Sound Level, 4V to 8V Supply Voltage - AT-1620-TWT-R
This piezo buzzer transducer is an electromechanical sound device designed to produce audible alerts in control and signalling systems. It operates with an external drive and is suited to industrial and electronic control panels where a compact, high‑output audible signal is required. The unit is manufactured for through‑hole mounting and complies with RoHS and REACH directives relevant to material restrictions.
Features and Benefits:
• Operates between 1548 Hz and 2548 Hz for audible tone flexibility
• Produces 90 dBA SPL for distinct alerts in noisy environments
• Accepts 4V to 8V drive for low‑voltage system compatibility
• Rated to 70 °C for elevated‑temperature applications
• Through‑hole format for secure PCB attachment and mechanical stability
• Produces 90 dBA SPL for distinct alerts in noisy environments
• Accepts 4V to 8V drive for low‑voltage system compatibility
• Rated to 70 °C for elevated‑temperature applications
• Through‑hole format for secure PCB attachment and mechanical stability
Applications
• Suitable for alarm panels in factory automation systems
• Ideal for machine status indication in electrical control cabinets
• Used with battery‑powered devices requiring low‑voltage signalling
• Can be used for safety alerts in HVAC and building management
• Used for audible feedback on test rigs and measurement equipment
• Ideal for machine status indication in electrical control cabinets
• Used with battery‑powered devices requiring low‑voltage signalling
• Can be used for safety alerts in HVAC and building management
• Used for audible feedback on test rigs and measurement equipment
What mounting method does it require for PCB assembly?
It uses a through‑hole mounting style that provides robust soldered connections and mechanical retention during vibration.
What drive arrangement is needed to produce sound?
An external drive source must be provided, the device requires a driven signal within the specified voltage and frequency range for correct operation.
How does temperature affect suitability for installations?
The component is rated for operation up to 70 °C, allowing installation in warmer industrial enclosures where standard ambient rises occur.
What physical size considerations apply when integrating into a panel?
The transducer has a Compact footprint with a nominal 16mm width and length and a 14mm maximum height, enabling space‑efficient placement.
