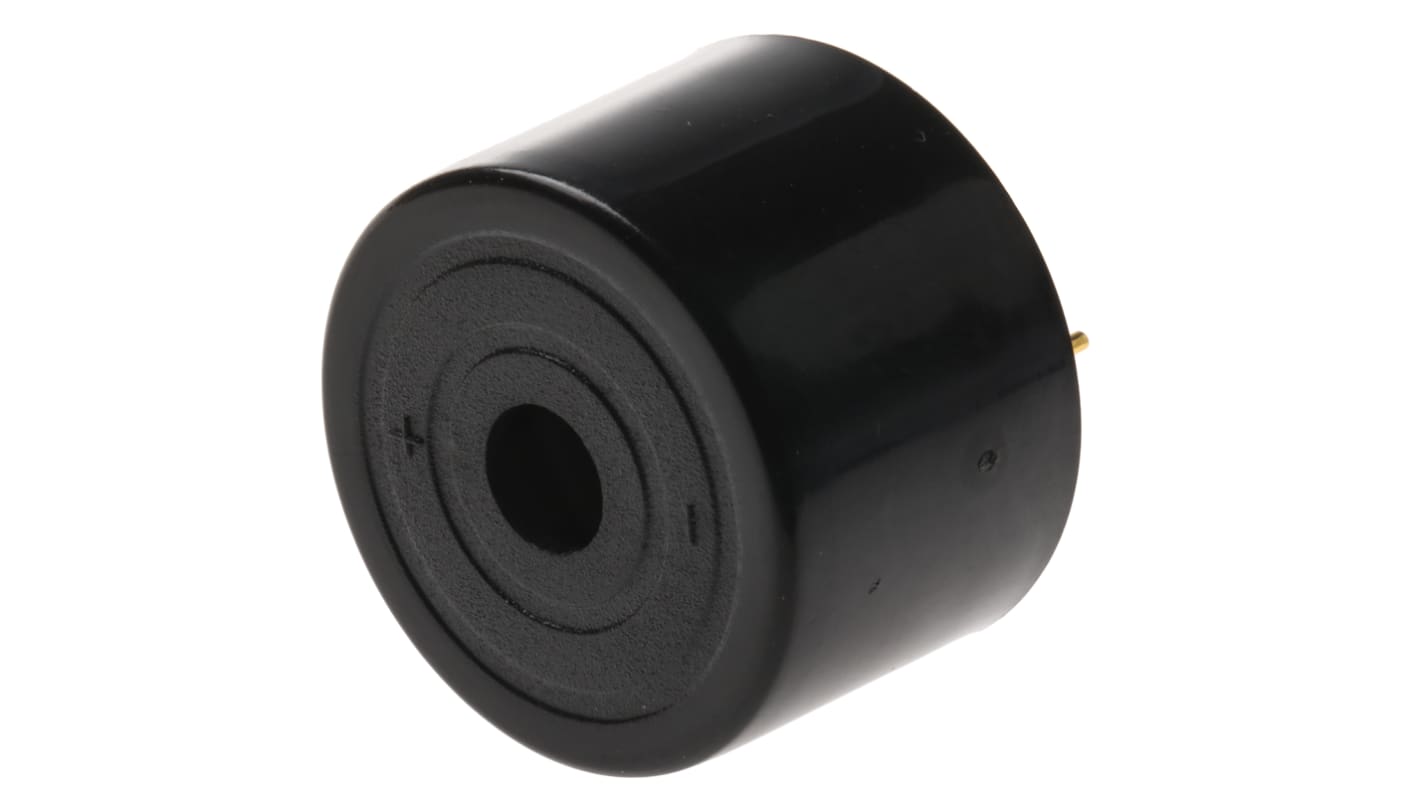

RS PRO 78 dB Through Hole Continuous Internal 16 mm Piezo Buzzer Component 3 V dc Min 20 V dc Max
- RS Stock No.:
- 238-050
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 238-050
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 20V dc | |
| Sound Level | 78dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 23.8 mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 16mm | |
| Standards/Approvals | RoHS | |
| Termination Style | Wire | |
| Maximum Frequency | 3.4kHz | |
| Supply Current | 6mA | |
| Minimum Frequency | 2400Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Piezo Buzzer Component | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 20V dc | ||
Sound Level 78dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 23.8 mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Height 16mm | ||
Standards/Approvals RoHS | ||
Termination Style Wire | ||
Maximum Frequency 3.4kHz | ||
Supply Current 6mA | ||
Minimum Frequency 2400Hz | ||
Non Compliant
- COO (Country of Origin):
- TW
Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
