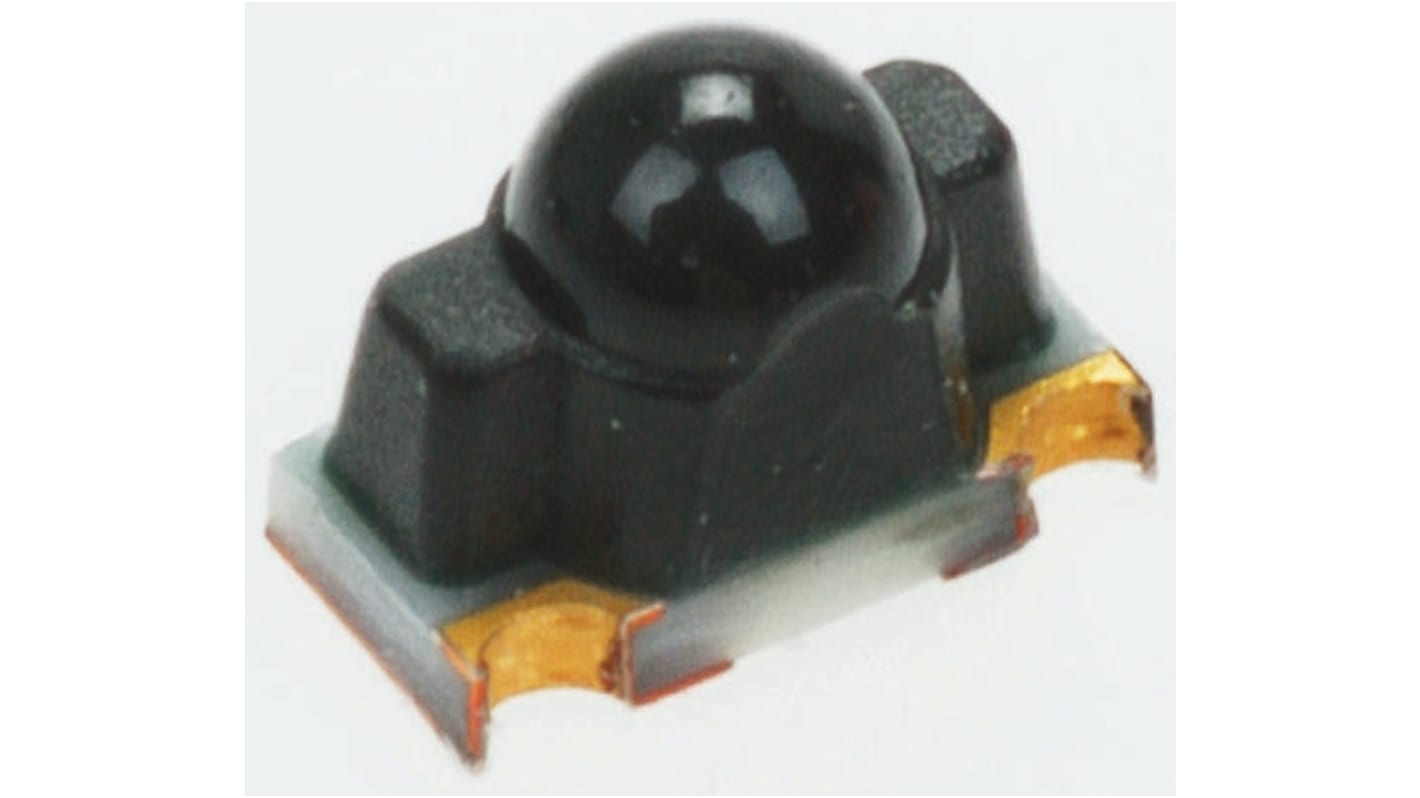

PT100MF0MP1 Sharp, 30 ° IR Phototransistor, Surface Mount 2-Pin
- RS Stock No.:
- 477-6335
- Mfr. Part No.:
- PT100MF0MP1
- Brand:
- Sharp
Discontinued
- RS Stock No.:
- 477-6335
- Mfr. Part No.:
- PT100MF0MP1
- Brand:
- Sharp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sharp | |
| Spectrums Detected | Infrared | |
| Typical Fall Time | 6µs | |
| Typical Rise Time | 5µs | |
| Number of Channels | 1 | |
| Maximum Dark Current | 100nA | |
| Angle of Half Sensitivity | 30 ° | |
| Polarity | NPN | |
| Number of Pins | 2 | |
| Mounting Type | Surface Mount | |
| Dimensions | 3 x 1.5 x 2.2mm | |
| Collector Current | 20mA | |
| Spectral Range of Sensitivity | Maximum of 910 nm | |
| Minimum Wavelength Detected | 910nm | |
| Maximum Wavelength Detected | 910nm | |
| Width | 1.5mm | |
| Length | 3mm | |
| Height | 2.2mm | |
| Select all | ||
|---|---|---|
Brand Sharp | ||
Spectrums Detected Infrared | ||
Typical Fall Time 6µs | ||
Typical Rise Time 5µs | ||
Number of Channels 1 | ||
Maximum Dark Current 100nA | ||
Angle of Half Sensitivity 30 ° | ||
Polarity NPN | ||
Number of Pins 2 | ||
Mounting Type Surface Mount | ||
Dimensions 3 x 1.5 x 2.2mm | ||
Collector Current 20mA | ||
Spectral Range of Sensitivity Maximum of 910 nm | ||
Minimum Wavelength Detected 910nm | ||
Maximum Wavelength Detected 910nm | ||
Width 1.5mm | ||
Length 3mm | ||
Height 2.2mm | ||
PT100MF0MPx Series Phototransistors
The PT100MF0MPx series, from Sharp, is a family of surface mount (SMD) phototransistors. They come in top view and side looking packages with an opaque resin lens. This black lens enables the PT100MF0MPx to offer a daylight filter for ambient visible light. As a domed lens it also offers a narrow acceptance angle. The PT100MF0MPx has a compact package which makes it ideal for applications where space is limited, for example office/factory automation equipment, audio/visual equipment, household appliances, telecommunications, measuring equipment and touch panels.
Features of the PT100MF0MPx phototransistor:
Surface mount (SMD) package
Side looking (SL) or top view
Black lens - daylight filter
Peak sensitivity wavelength: 910nm
Directivity angle: 15°
Surface mount (SMD) package
Side looking (SL) or top view
Black lens - daylight filter
Peak sensitivity wavelength: 910nm
Directivity angle: 15°
IR Phototransistors, Sharp
