HLPT-B3D0-00000 Broadcom, HLPT ±12 Visible Light Phototransistor, Through Hole 2-Pin Radial package

Bulk discount available

Subtotal 100 units (supplied on a continuous strip)*

£29.40

(exc. VAT)

£35.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13,890 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
100 - 490£0.294
500 - 990£0.264
1000 +£0.209

*price indicative

Packaging Options:
RS Stock No.:
566-054P
Mfr. Part No.:
HLPT-B3D0-00000
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Spectrums Detected

Visible Light

Maximum Light Current

30mA

Angle of Half Sensitivity

±12

Number of Pins

2

Mounting Type

Through Hole

Package Type

Radial

Series

HLPT

COO (Country of Origin):
CN

TE Connectivity MTA-156 IDC Closed End Connector Assemblies


MTA-156 IDC closed end connector receptacle assemblies preloaded with IDC contacts on a 3.96mm centerline that accept stranded discrete wire sizes from 18 to 26 AWG. These MTA-156 IDC closed end connectors are end to end stackable, have white nylon 6/6 UL94V-2 housings with moulded ribs to prevent reverse mating and are available with locking ramps and polarization tabs. The IDC socket contacts of these MTA-156 IDC closed end receptacle connectors are matte tin plated with the exception of stock number 863-8369 which has 0.00038μm gold plated contacts.
Part numbers X-640431-X have accept an 18 AWG discrete wire size
Part numbers X-640426-X have a locking ramp and accept an 18 AWG discrete wire size
Part numbers X-641148-X have a locking ramp and accept an 18 AWG discrete wire size (gold plated)
Part numbers X-640428-X have a locking ramp and accept an 22 AWG discrete wire size
Part numbers X-640429-X have a locking ramp and accept an 24 AWG discrete wire size
Part numbers X-640427-X have a locking ramp and accept a 20 AWG discrete wire size
Part numbers X-643817-X have a locking ramp and polarization tabs and accept an 18 AWG discrete wire size
Part numbers X-643818-X have a locking ramp and polarization tabs and accept a 20 AWG discrete wire size
Part numbers X-643819-X have a locking ramp and polarization tabs and accept a 22 AWG discrete wire size

Closed end type
Current Rating 7 A

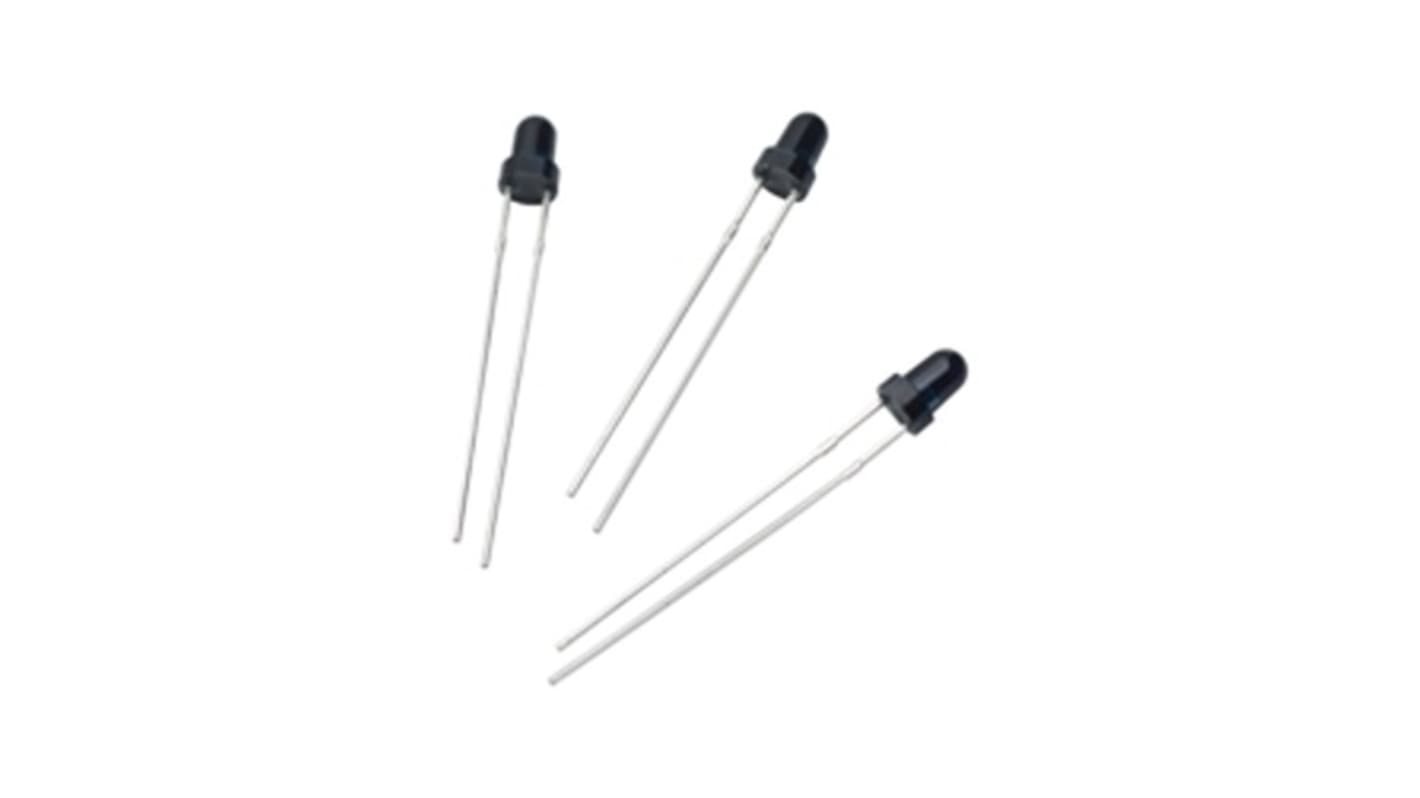

The Broadcom Silicon NPN Phototransistor is a robust and efficient phototransistor that is available in an industry-standard 3-mm through-hole lamp package. this product is a suitable candidate for a variety of applications in consumer and industrial segments, such as office automation, light curtains, and machine control. This product is easy to use and is a cost-effective solution that offers superior performance.

Black epoxy package
High photosensitivity
Angle of half sensitivity and 25 degrees
Wide spectral sensitivity from 720 nm to 1100 nm


TE Connectivity MTA-156 3.96mm Interconnect System


MTA-156 (Mass Termination Assembly) 3.96 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTA-156 connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTA-156 IDC connectors can be quickly assembled to 26 AWG to 18 AWG discrete wire or ribbon cable. The MTA-156 connector system consists of female IDC connectors and PCB headers. The housings of the IDC connectors are colour coded according to wire size
