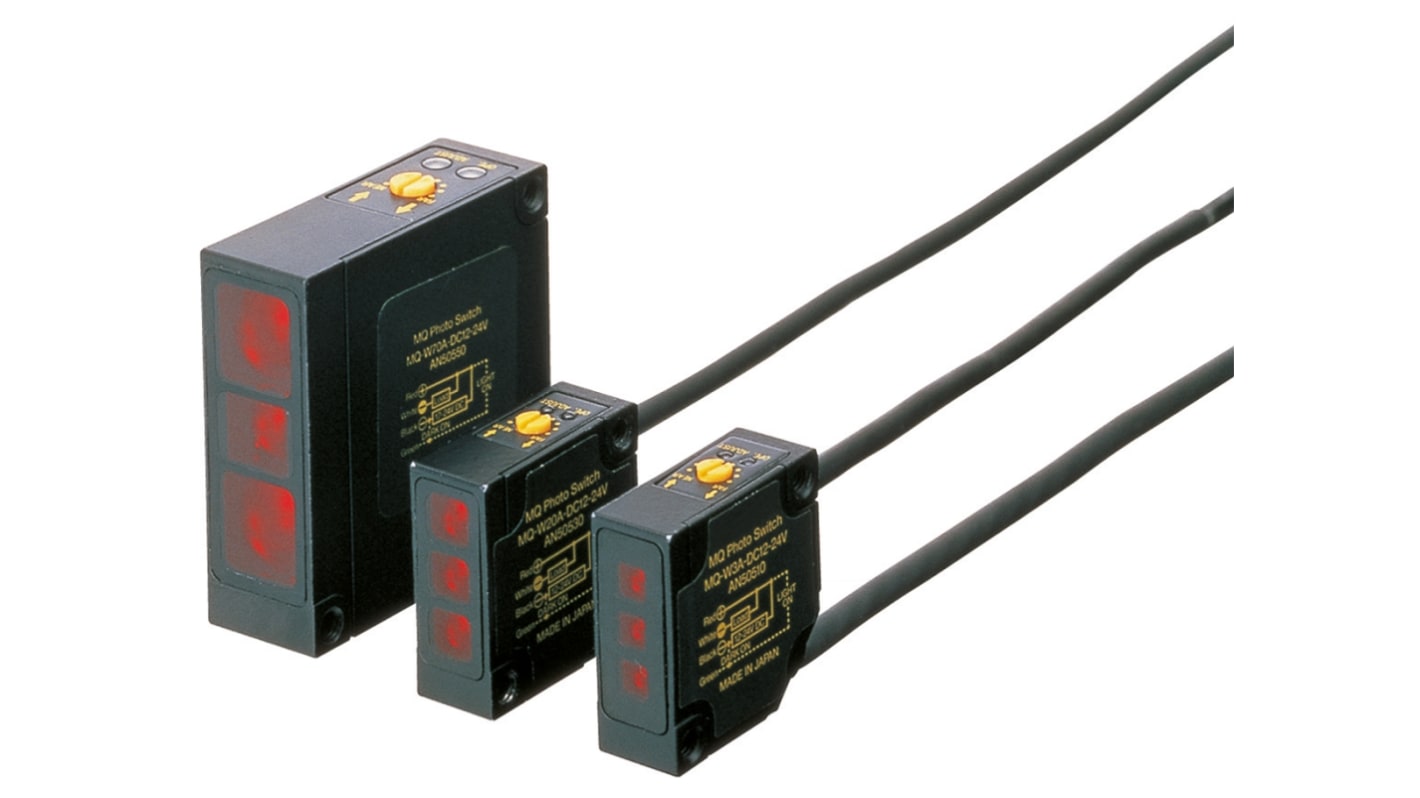

Panasonic Diffuse Photoelectric Sensor, Block Sensor, 0.04 → 0.2 m Detection Range

View all Photoelectric Sensors
Discontinued
Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
810-2946
Mfr. Part No.:
MQ-W20CR-DC12-24V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Sensor Style

Block

Detection Type

Diffuse

Detection Range

0.04 → 0.2 m

Output Type

PNP

Electrical Connection

Cable

Maximum DC Voltage

24V

Terminal Type

Cable

Light Source

Red LED

IP Rating

IP67

Maximum Current

100 mA

Response Time

2 ms

Maximum Operating Temperature

+55°C

Housing Material

PC

Minimum Operating Temperature

-25°C

RoHS Status: Not Applicable

COO (Country of Origin):
JP

MQ-W Adjustable Range Reflective Sensors


Adjustable range reflective type sensor can detect white or black object at the same distance. Therefore, the sensor can even detect individual objects that are mixed with black objects or objects of various colors that were hard for the diffuse reflective type sensor to detect.
