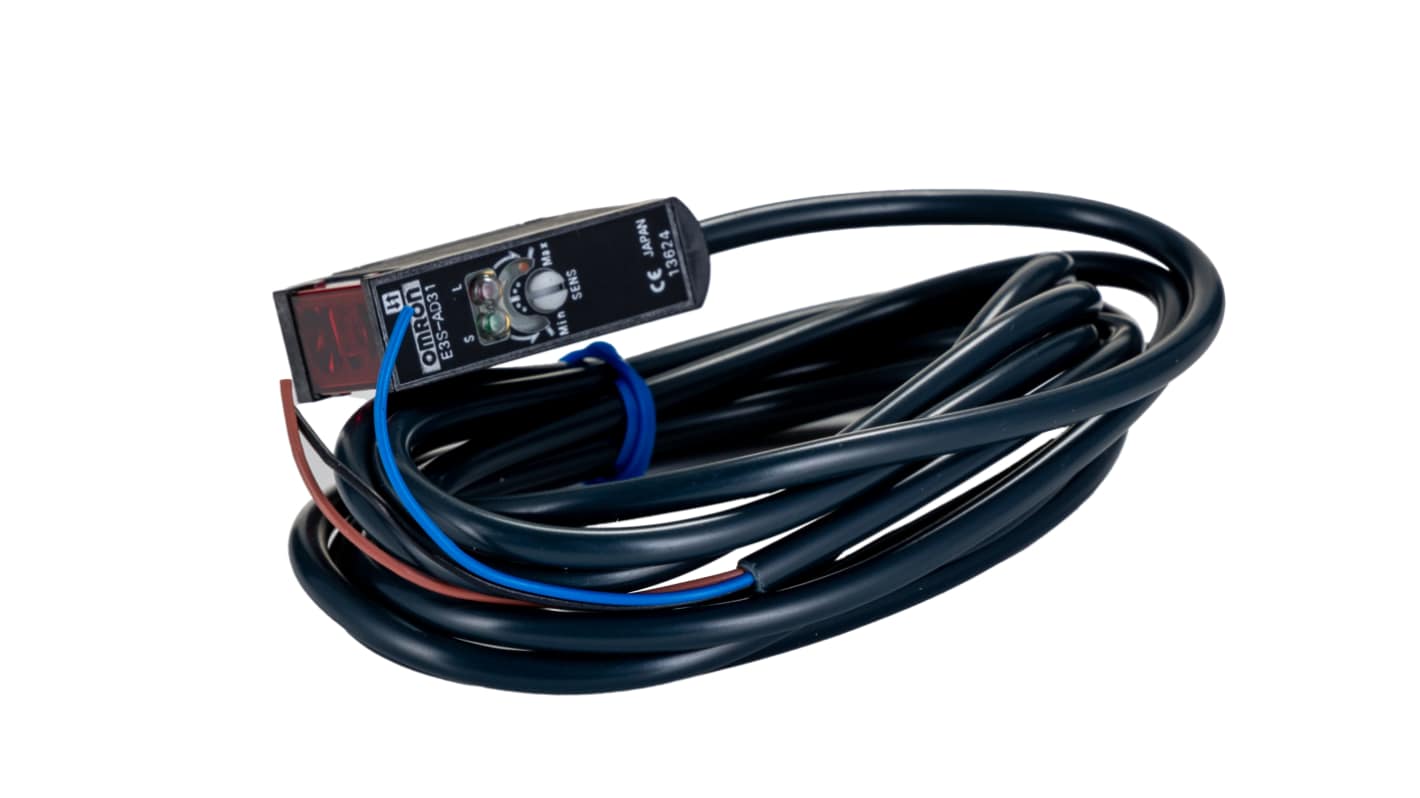

Omron Diffuse Photoelectric Sensor, Block Sensor, 200 mm Detection Range
- RS Stock No.:
- 178-6266
- Mfr. Part No.:
- E3S AD31
- Brand:
- Omron
Subtotal (1 unit)*
£162.11
(exc. VAT)
£194.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 8 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £162.11 |
*price indicative
- RS Stock No.:
- 178-6266
- Mfr. Part No.:
- E3S AD31
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Sensor Style | Block | |
Detection Type | Diffuse | |
Detection Range | 200 mm | |
Output Type | PNP | |
Electrical Connection | 4 Wire Cable 2 m | |
Maximum DC Voltage | 30V | |
Light Source | LED | |
IP Rating | IP67 | |
Maximum Current | 100 mA | |
Response Time | 500 μs | |
Series | E3S | |
Housing Material | PBT | |
Maximum Operating Temperature | +55°C | |
Mounting Type | Mounting bracket | |
Minimum Operating Temperature | -25°C | |
Standards Met | CE Certified | |
Select all | ||
---|---|---|
Brand Omron | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range 200 mm | ||
Output Type PNP | ||
Electrical Connection 4 Wire Cable 2 m | ||
Maximum DC Voltage 30V | ||
Light Source LED | ||
IP Rating IP67 | ||
Maximum Current 100 mA | ||
Response Time 500 μs | ||
Series E3S | ||
Housing Material PBT | ||
Maximum Operating Temperature +55°C | ||
Mounting Type Mounting bracket | ||
Minimum Operating Temperature -25°C | ||
Standards Met CE Certified | ||
- COO (Country of Origin):
- JP
Omron E3S Series Photoelectric Sensor, Diffuse Detection, 200mm Range - E3S AD31
This photoelectric sensor is an essential component in automation systems, designed to detect objects within a 200mm range using a diffuse detection method. It features a robust housing made from PBT, ensuring durability in various industrial environments. The sensor is equipped with a 4-wire cable, measuring 2m for easy integration into existing setups.
Features & Benefits
• IP67 rating provides protection against dust and water ingress
• LED light source enhances visibility and detection accuracy
• PNP output ensures compatibility with various control systems
• Fast response time of 500μs improves operational efficiency
• Wide temperature range enables reliable performance in diverse conditions
• Convenient mounting bracket simplifies installation and adjustments
• LED light source enhances visibility and detection accuracy
• PNP output ensures compatibility with various control systems
• Fast response time of 500μs improves operational efficiency
• Wide temperature range enables reliable performance in diverse conditions
• Convenient mounting bracket simplifies installation and adjustments
Applications
• Utilised for object detection in conveyor systems
• Applied in packaging machinery for increased efficiency
• Suitable for assembly lines requiring precise positioning
• Employed in robotic systems for reliable feedback
• Applied in packaging machinery for increased efficiency
• Suitable for assembly lines requiring precise positioning
• Employed in robotic systems for reliable feedback
How does the IP67 rating benefit operational reliability in challenging environments?
The IP67 rating signifies that the sensor is completely dust-tight and can withstand immersion in water up to 1m for short periods. This robustness enhances its operational reliability in environments exposed to dirt, moisture, or wash-down procedures.
What advantages does the PNP output provide in integration with other systems?
The PNP output allows for easy interfacing with various control devices, ensuring smooth communication in automation applications. This type of output is often preferred in industrial settings for its ability to simplify electrical connections and signal processing.
Can the response time impact system performance in high-speed applications?
Yes, the response time of 500 μs is crucial for high-speed applications, as it allows for rapid detection and reaction to moving objects. This fast response is essential in systems where timing and precision directly affect overall productivity and safety.
