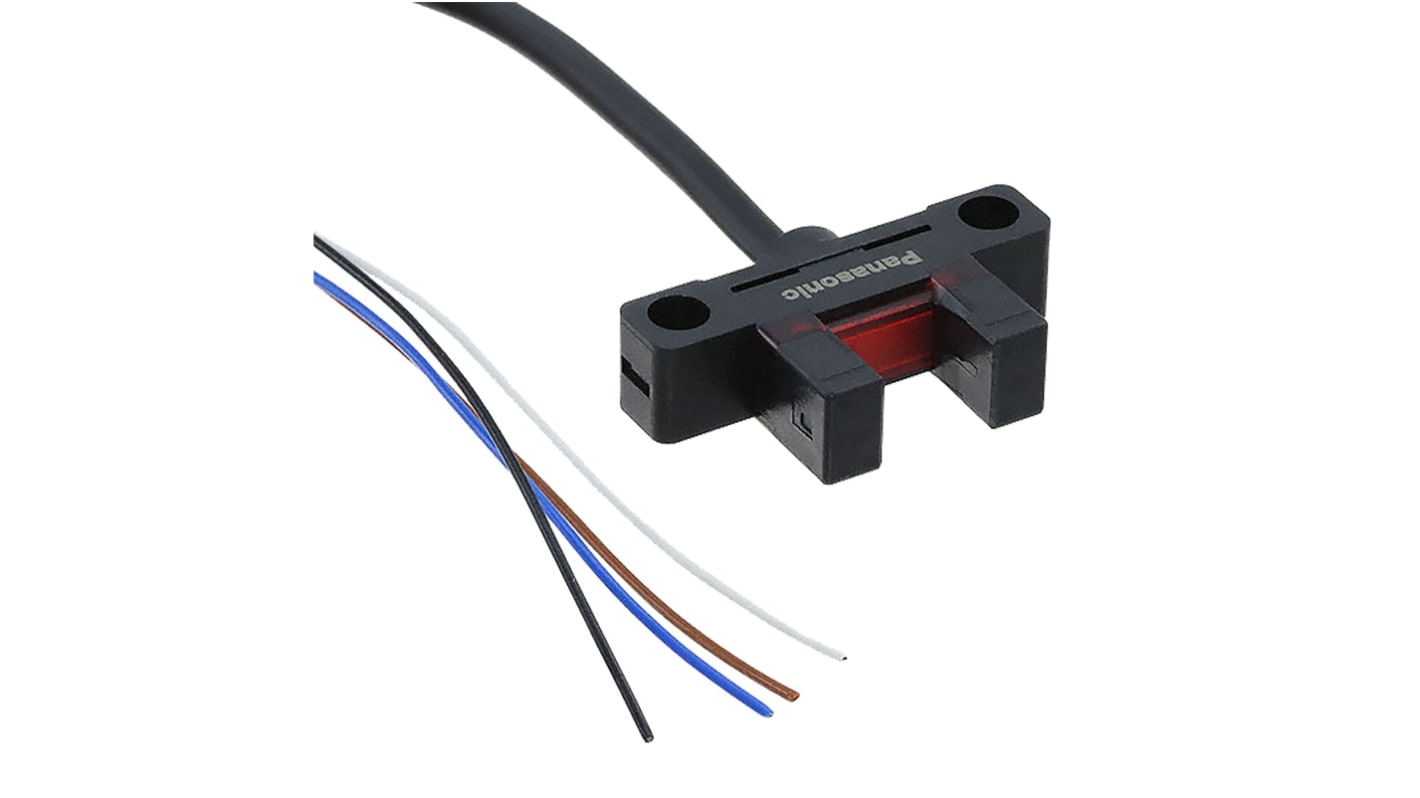

Panasonic Through Beam Photoelectric Sensor, Fork Sensor, 6 mm Detection Range
- RS Stock No.:
- 125-4517
- Mfr. Part No.:
- PM-K25-C3
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-4517
- Mfr. Part No.:
- PM-K25-C3
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Sensor Style | Fork | |
| Detection Type | Through Beam | |
| Detection Range | 6 mm | |
| Output Type | NPN | |
| Electrical Connection | Cable 3 m | |
| Maximum DC Voltage | 24V | |
| Terminal Type | Cable | |
| Light Source | Infrared | |
| IP Rating | IP64 | |
| Maximum Current | 50 (Sink Current) mA | |
| Response Time | 20 (Received) μs, 80 (Interrupted) μs | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | PBT (Enclosure), Polycarbonate (Display Section) | |
| Maximum Operating Temperature | +55°C | |
| Series | PM-25 | |
| Mounting Type | Chassis Mount | |
| Standards Met | IEC | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Sensor Style Fork | ||
Detection Type Through Beam | ||
Detection Range 6 mm | ||
Output Type NPN | ||
Electrical Connection Cable 3 m | ||
Maximum DC Voltage 24V | ||
Terminal Type Cable | ||
Light Source Infrared | ||
IP Rating IP64 | ||
Maximum Current 50 (Sink Current) mA | ||
Response Time 20 (Received) μs, 80 (Interrupted) μs | ||
Minimum Operating Temperature -25°C | ||
Housing Material PBT (Enclosure), Polycarbonate (Display Section) | ||
Maximum Operating Temperature +55°C | ||
Series PM-25 | ||
Mounting Type Chassis Mount | ||
Standards Met IEC | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- JP
PM-25 Series U-Shaped Ultra Small Photoelectric Sensors
Panasonic PM-25 series ultra-small U-shaped micro photoelectric sensors. The PM series sensors feature a through beam detection type with the emitter and receiver contained within a single U-shaped housing. A large operating indicator lights up to make operation identification easy to see from above and from the sides.
The sections where stress concentrates, such as the connecting section of the cable and internal circuit, are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts.
The sections where stress concentrates, such as the connecting section of the cable and internal circuit, are covered with a resin. This helps prevent malfunctions caused by vibrations and impacts.
Features and Benefits
Reverse supply polarity protection
Reverse output polarity protection
Output short circuit protection
Easy mounting with M2 / M3 screws
PNP / NPN outputs available
Reverse output polarity protection
Output short circuit protection
Easy mounting with M2 / M3 screws
PNP / NPN outputs available
