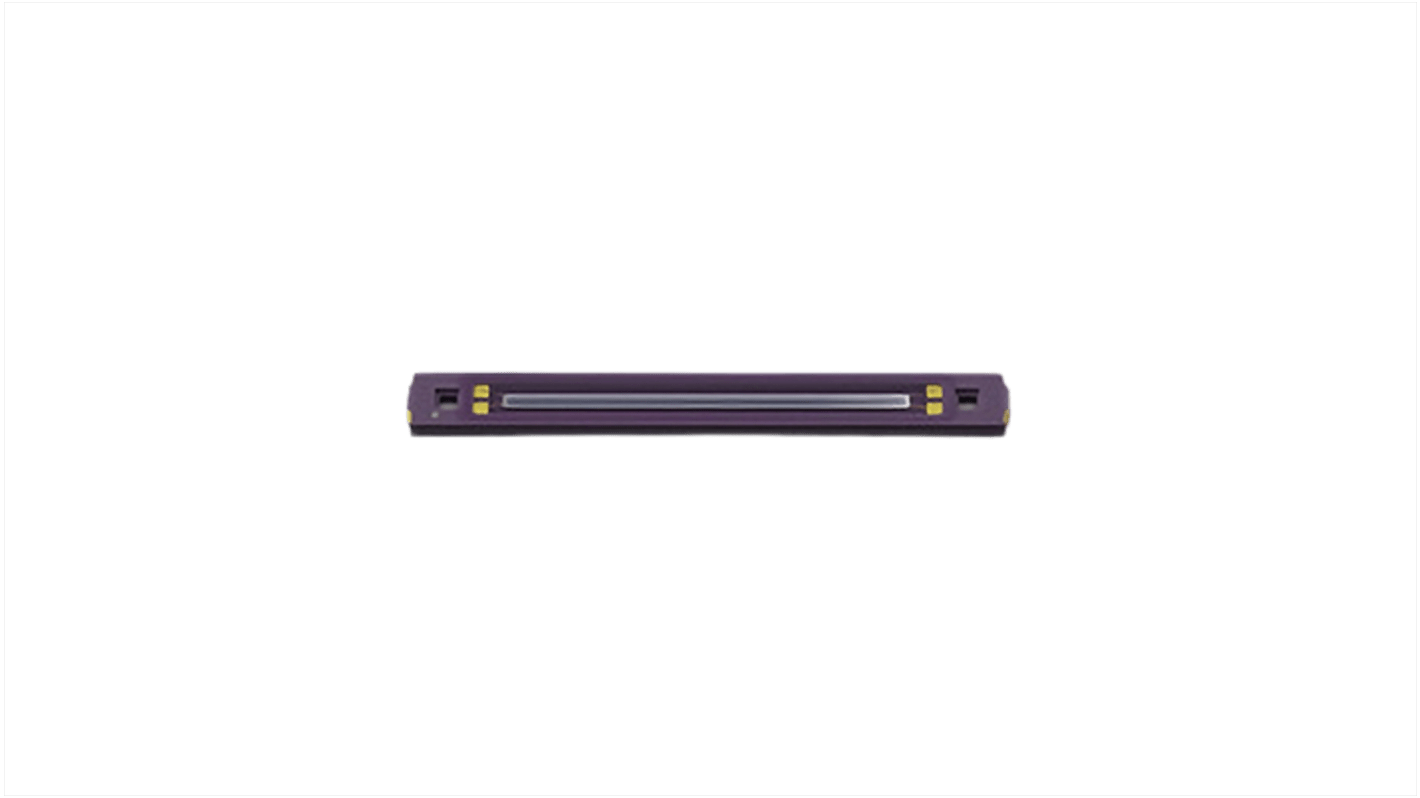

Hamamatsu Photonics Visible Light Position Sensing Detector (PSD), Surface Mount Chip
- RS Stock No.:
- 261-6296
- Mfr. Part No.:
- S8543
- Brand:
- Hamamatsu Photonics
Bulk discount available
Subtotal (1 unit)*
£41.21
(exc. VAT)
£49.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 9 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 2 | £41.21 |
| 3 + | £39.16 |
*price indicative
- RS Stock No.:
- 261-6296
- Mfr. Part No.:
- S8543
- Brand:
- Hamamatsu Photonics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hamamatsu Photonics | |
| Spectrums Detected | Visible Light | |
| Product Type | Position Sensing Detector (PSD) | |
| Wavelength of Peak Sensitivity | 960nm | |
| Package Type | Chip | |
| Mount Type | Surface Mount | |
| Number of Pins | 4 | |
| Minimum Wavelength Detected | 320nm | |
| Maximum Wavelength Detected | 1100nm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 75°C | |
| Length | 24mm | |
| Standards/Approvals | No | |
| Width | 0.7mm | |
| Automotive Standard | No | |
| Dark Current | 15nA | |
| Select all | ||
|---|---|---|
Brand Hamamatsu Photonics | ||
Spectrums Detected Visible Light | ||
Product Type Position Sensing Detector (PSD) | ||
Wavelength of Peak Sensitivity 960nm | ||
Package Type Chip | ||
Mount Type Surface Mount | ||
Number of Pins 4 | ||
Minimum Wavelength Detected 320nm | ||
Maximum Wavelength Detected 1100nm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 75°C | ||
Length 24mm | ||
Standards/Approvals No | ||
Width 0.7mm | ||
Automotive Standard No | ||
Dark Current 15nA | ||
- COO (Country of Origin):
- JP
The Hamamatsu Photonics one-dimensional PSD with a long, narrow photosensitive area sealed in a surface mountable chip carrier package. The photosensitive area of 0.7 x 24 mm delivers excellent position detection characteristics.
Long, narrow photosensitive area
Excellent position detection characteristics and resolution
